5.7. Pin assignment

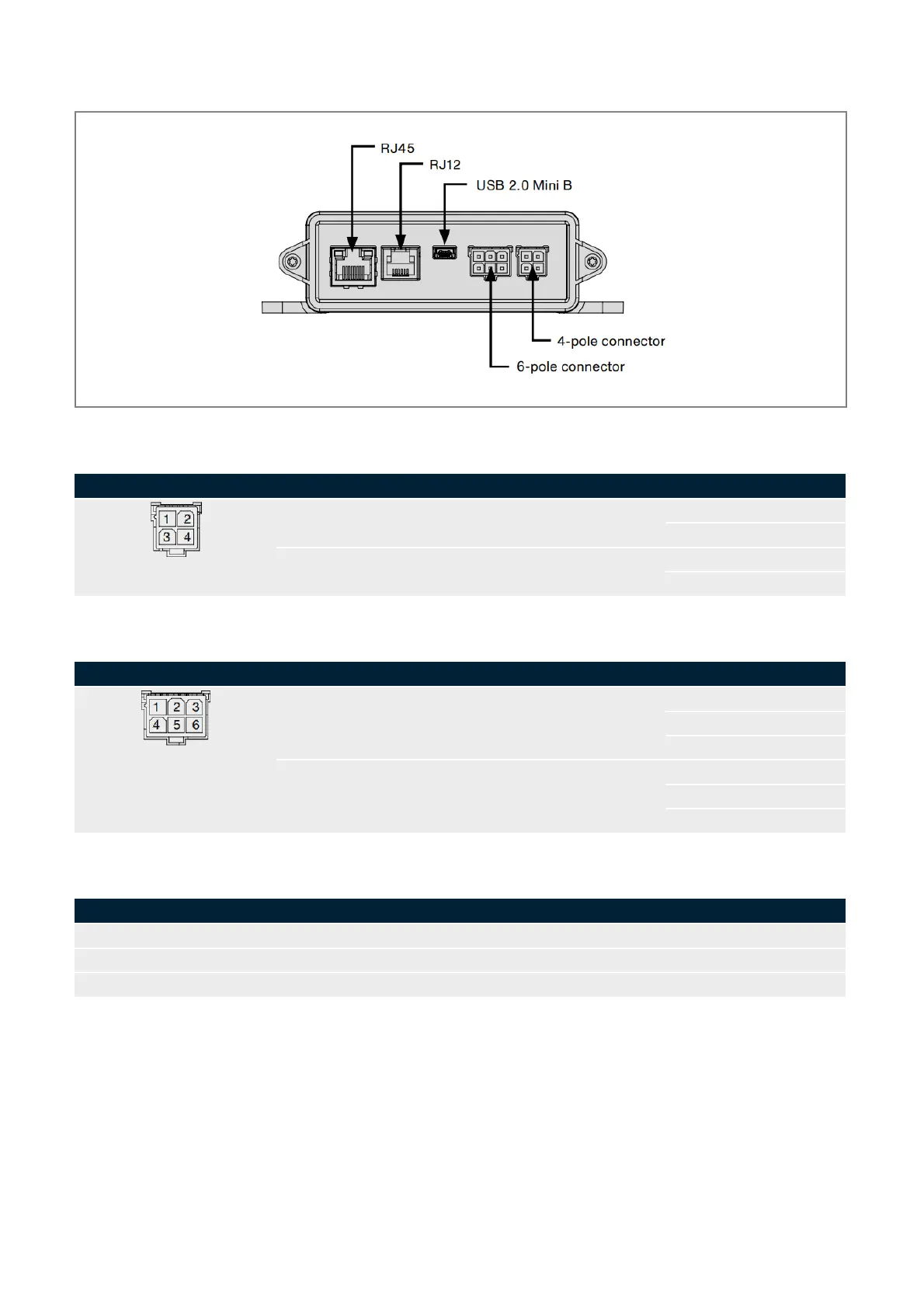

Fig. 11: Pin assignment of the PowerPlex
®
WS300
4-pole connection
interface
assignment
pin
voltage supply
(DC 12 V/24V, DC 9 … 32 V))
U
Batt
+
1
U
Batt
-
2
not used
A
RS485
3
B
RS485
4
Table 9: Pin assignment on the 4-pole connector
6-pole connection
interface
assignment
pin
not used
CAN-H
1
CAN-L
2
SHLD
3
PowerPlex
®
CAN
CAN-H
4
CAN-L
5
SHLD
6
Table 10: Pin assignment on the 6-pole connector
Other interfaces
bushing
Ethernet interface
RJ45
Not used
RJ12
USB 2.0 service interface
USB 2.0 Mini B
Table 11: Other interfaces
Delivery of a standard PowerPlex
®
Web Sever does not include any mating plugs. Mating plugs for the 4-pole and
6-pole connector can be ordered separately as accessories XPP-CP-110.
