EAE EE-6603BWF - Annex 3, Hydraulic Diagrams and Parts List

Installation, Operation and Parts Manual
EE-6603BWF
30

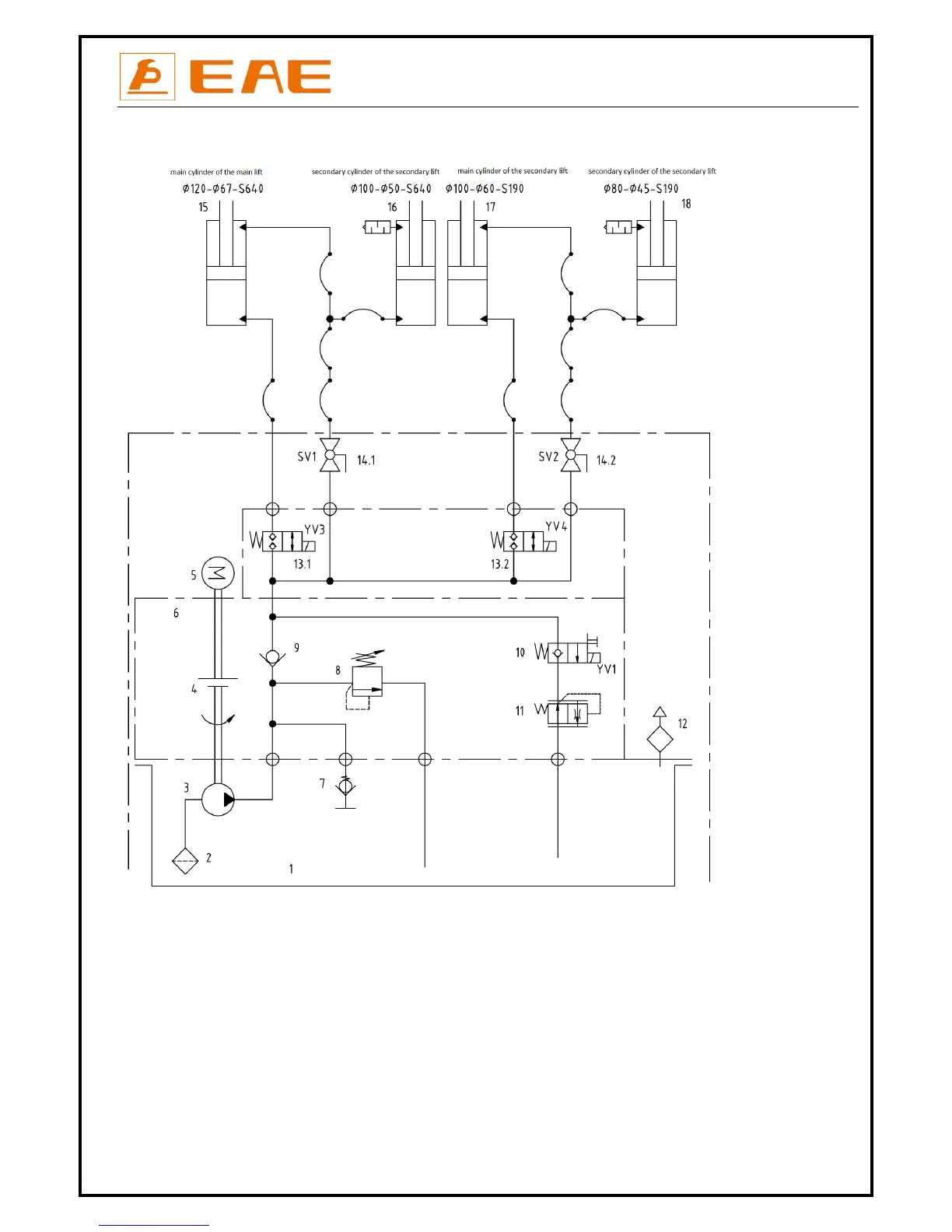

Annex 3, Hydraulic diagrams and parts list
1. Oil tank
10. Solenoid unloading valve
2. Oil sucking filter
11. Flow control valve
3. Gear pump
12. Oil tank cover
4. Coupling
13. Leveling valve
5. Motor
14. Ball valve
6. Hydraulic block
15. Main cylinder of the main lift
7. Cushion valve
16. Secondary cylinder of the main lift
8. Over-flow valve
17. Main cylinder of the wheel free lift
9. Single way valve
18. Secondary cylinder of the wheel free lift
