PRODUCT DESCRIPTIONS
3.1 General descriptions
This model is recessed mounted and is mainly composed by two lifting platforms and a set of power unit. The gear pump works making oil
in the pump will push upwards the pistons of oil cylinders. Thus, scissor brackets of the lift rise accordingly. In case of hydraulic failure, the
mechanical safety locking unit ensures no sudden fall of lifting platforms.
Besides, designs like 24V working voltage of control box and limit switch, low-height alarming buzzer, anti-surge valves, etc. have fully
considered your personal security.

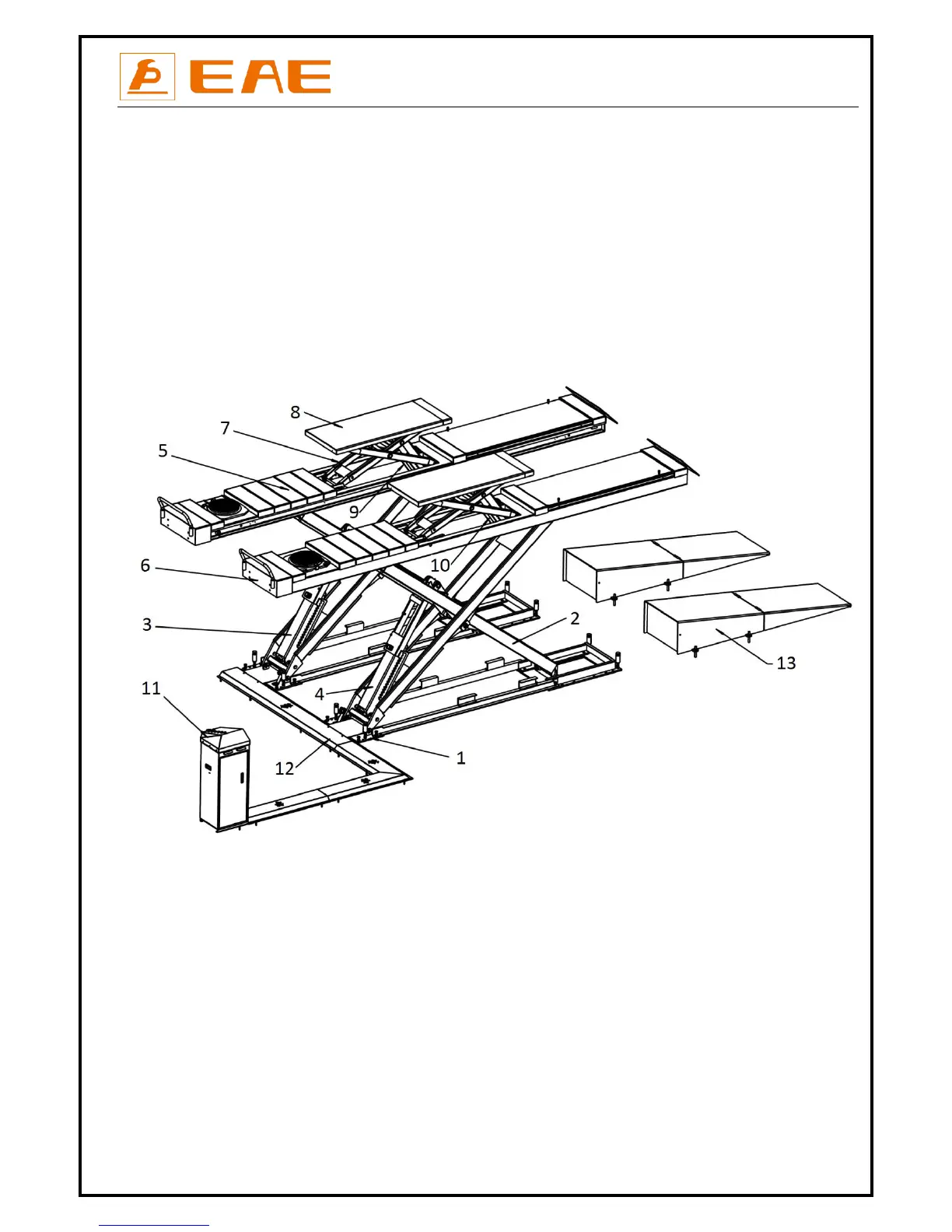

3.2 Construction of the lift
1. Base frame assembly
2. Support arm of the main lift
3. Main oil cylinder and mechanical lock
4. Secondary oil cylinder and mechanical lock
5. Main lifting platform
6. Secondary lifting platform
7. Support arm of the wheel lift
8. Platform of the wheel lift
9. Main cylinder and lock of the wheel free lift
10. Secondary cylinder and lock of the wheel free lift
11. Control cabinet
12. Oil hose covers (for surface mount)
13. Drive-on ramp (for surface mount)
