- 12 -
2.3 Installation

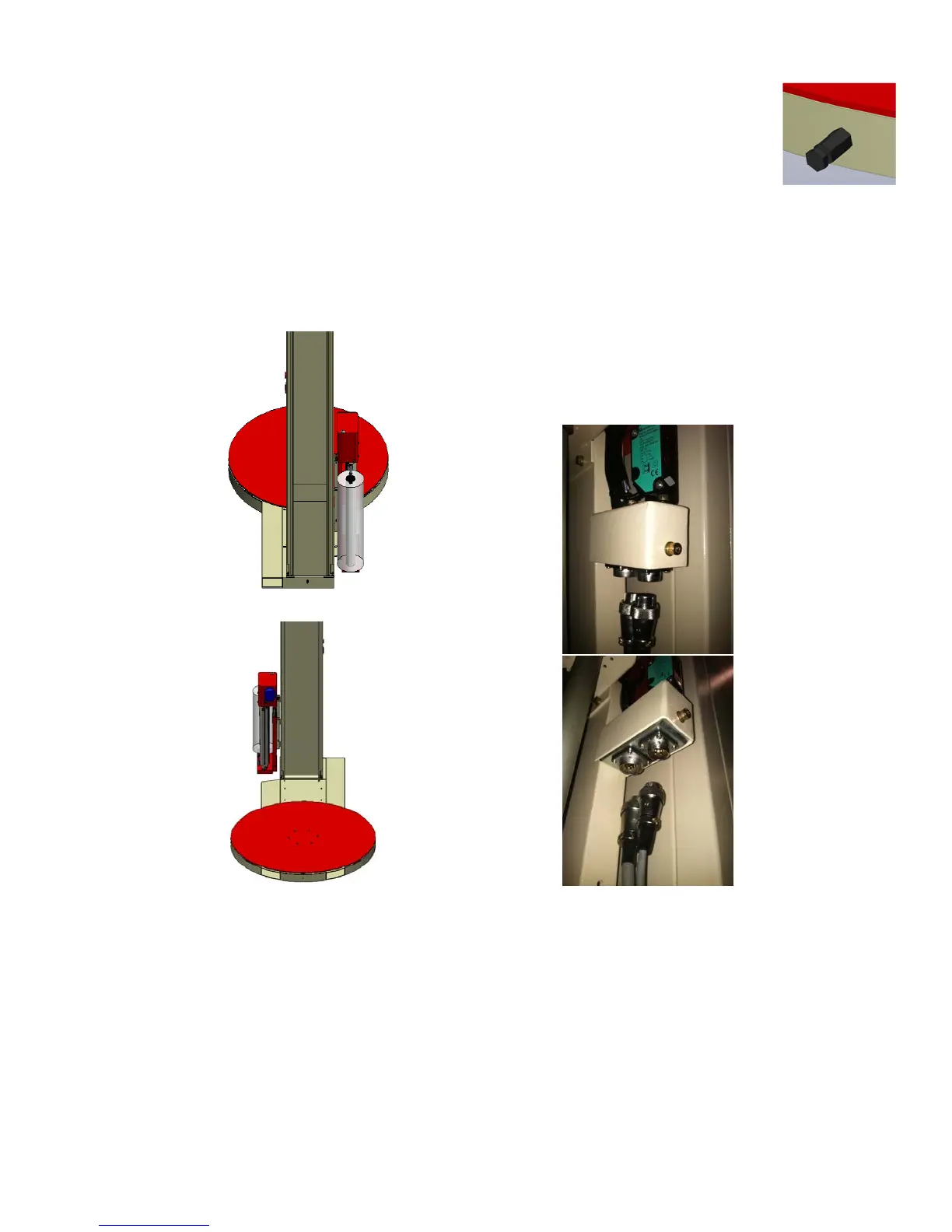

Step 4 - If installing a ramp, place the ramp by locating the ramp shoulder bolt and
placing it into the slot in the ramp. It is highly recommended to anchor the ramp to the
floor. (See Fig. 2-6)
Step 5 - Affix the carriage onto the corresponding position on the mast and fasten with
four M8 bolts. (See Fig. 2-7) Insert the connector plugs on the front of the carriage into the receptacles.
(See Fig. 2-8) Do not force the connectors together.
Fig. 2-7
Fig. 2-8*
Fig. 2-6
