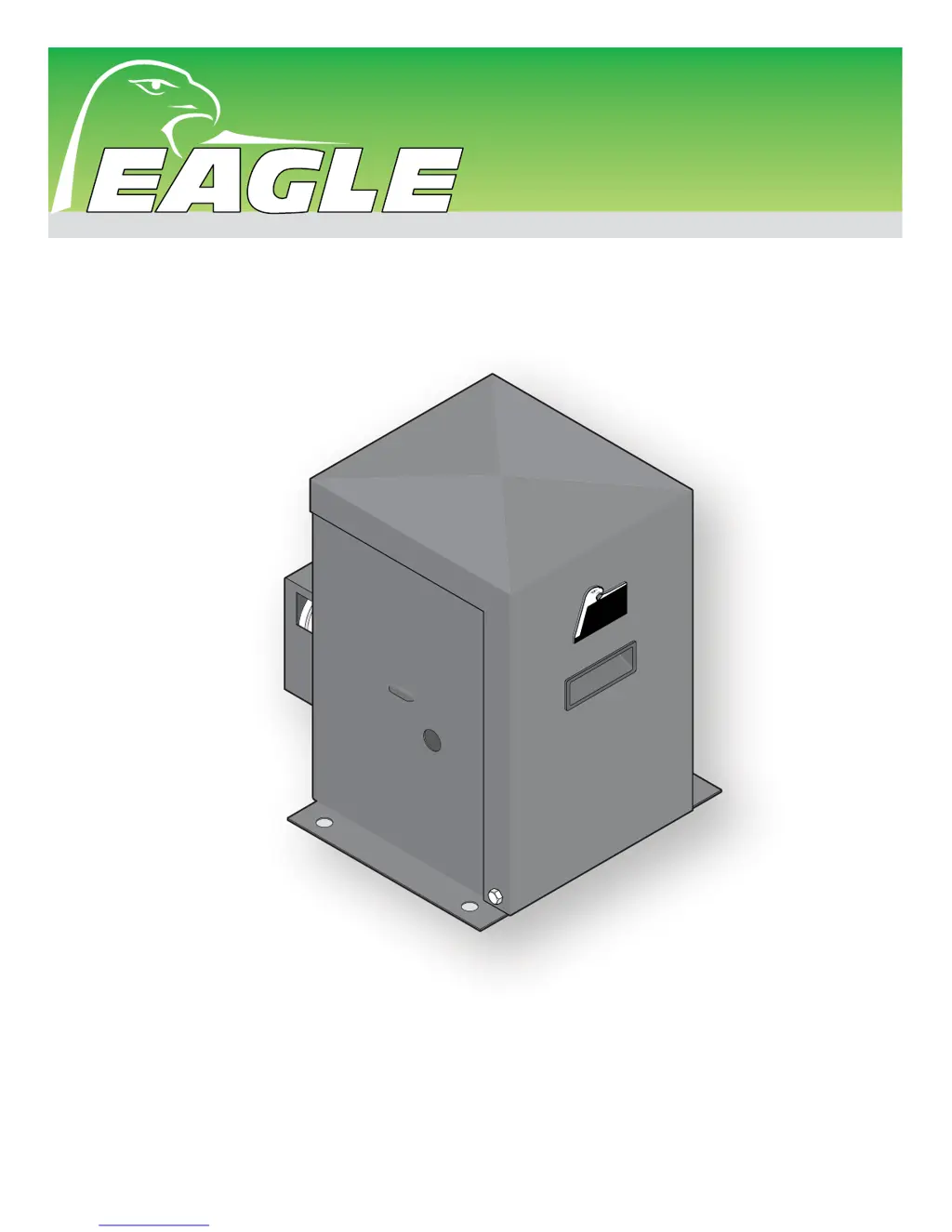

Installation & Owners Manual

Slide Gate Operator

AV I

AVI

TM

ACCESS CONTROL SYSTEMS, INC.

Made in the USA

P

OW

ER

E

D BY

EAGL

E

AV I

Maximum Gate Capacity 14 ft & 200 lbs

AVI Slide Rev - C

Questions and Answers:

C
cdavisAug 2, 2025
Why is my Eagle AVI not opening?
- J
  jasminefisherAug 3, 2025
  If your Eagle Gate Opener is not opening, several factors could be at play. First, the motor's thermal breaker might have tripped; allow the motor to cool before trying again, especially if the gate is too heavy. Second, the radio receiver may have malfunctioned, remaining in the “OFF” position. Third, ensure the operator power switch is ON and the main circuit breaker is reset if the green “Power” LED is off. Lastly, a blown fuse could be the culprit; inspect and replace it with a fuse of the same amperage.
P
Peter HodgeAug 16, 2025
Why is my Eagle Gate Opener not closing?
- M
  Mary AllenAug 16, 2025
  If your Eagle Gate Opener is not closing, there could be several reasons. The radio receiver or remote control may have malfunctioned in the “ON” position. Check input/output connections for a short circuit if one or more of the global input LEDs remain active. If the gate has re-opened due to encountering an obstruction while closing, only the #3 “Key” input will resume normal operation. If the loop detector LED is on, reset the loop detector, verify correct loop wiring, and try setting the loop detector to a different frequency or changing its sensitivity. Also, ensure that Switch #4 is in the “ON” position to enable the CLOSE TIMER function.

Eagle AVI Specifications

General

Battery Backup	Yes
Remote Control	Yes
Max Gate Length/Width	20 ft
UL Rating	UL325
Safety Features	Auto-reverse

Summary

SAFETY

UL 325 Listings

Defines requirements for gate operators based on usage class.

UL 325 Model Classifications

Categorizes gate operators into classes I through IV based on application.

UL 325 Required Entrapment Protection

Specifies entrapment protection measures for various gate types.

Important Safety Information

Critical warnings for reducing injury or death risks during operation.

General Safety Information

Precautions for safe installation and operation of gate operators.

AVI SLIDE GATE OPERATOR SPECIFICATIONS

METHODS OF INSTALLATION

Front Position

Standard installation method for the gate operator on the front of the gate.

Rear Position

Installation method to conceal the gate chain from the exterior of the property.

Gate Connection

Procedure for physically connecting the gate to the operator's chain.

Concrete Pad Installation

Guidelines for creating a concrete pad for mounting the gate operator.

Post Mount Installation

Instructions for mounting the gate operator on a post.

Reverse and Exit In-Ground Loop Installation

Installing in-ground loops for safety and automatic gate operation.

External Entrapment Protection

Installing external safety sensors like photocells and edge sensors.

CONTROL BOARD ADJUSTMENTS AND WIRING

Feature Selector Switches #1 - #4

Configuring operator functions using feature selector switches.

Control Board Overview

Description of the main control board components and their functions.

120 VAC Input Power Connection

Steps for safely connecting the 120 VAC power supply to the operator.

Setting the Limit Switches & Open Left/Right

Adjusting limit nuts for precise gate travel and setting opening direction.

Power Fail Operation

Manual operation of the gate during power outages using a hand crank.

Radio Receiver Installation and “Learning” Remote Button

Wiring and programming the radio receiver for remote control access.

Close Timer for a Single or Master Operator

Setting the automatic gate closing timer for single or master/slave configurations.

Two-Way Adjustable Reverse Sensor / ERD Emergency Reversing Device

Adjusting sensitivity of the ERD for obstruction detection and safe reversal.

Input/Output Connection Descriptions

Detailed explanation of various input and output terminals on the control board.

Connecting Accessories

Wiring diagrams for common accessories like keypads, loops, and sensors.

Master / Slave Setup

Instructions for configuring two operators to function as a master and slave pair.

Troubleshooting

AVI Wiring Diagram

AVI Replacement Parts

AVI Replacements Parts List
