8
AVI Slide Rev - C
Additional Idler Wheel/Sprocket required.
Eagle part number: E651 Idler Wheel
Assembly Complete (No mounting post).
The “NO Weld Chain Kit”
comes with the gate operator.
Gate Connection
REAR Position
Conceals chain from outside of property.
Top View
2” Gate
Frame
Master Chain Link
Additional chain required.
Eagle part number: XM200 - 10 ft #41 Chain.
See previous page for “COMMON MISTAKES TO BE AWARE OF”

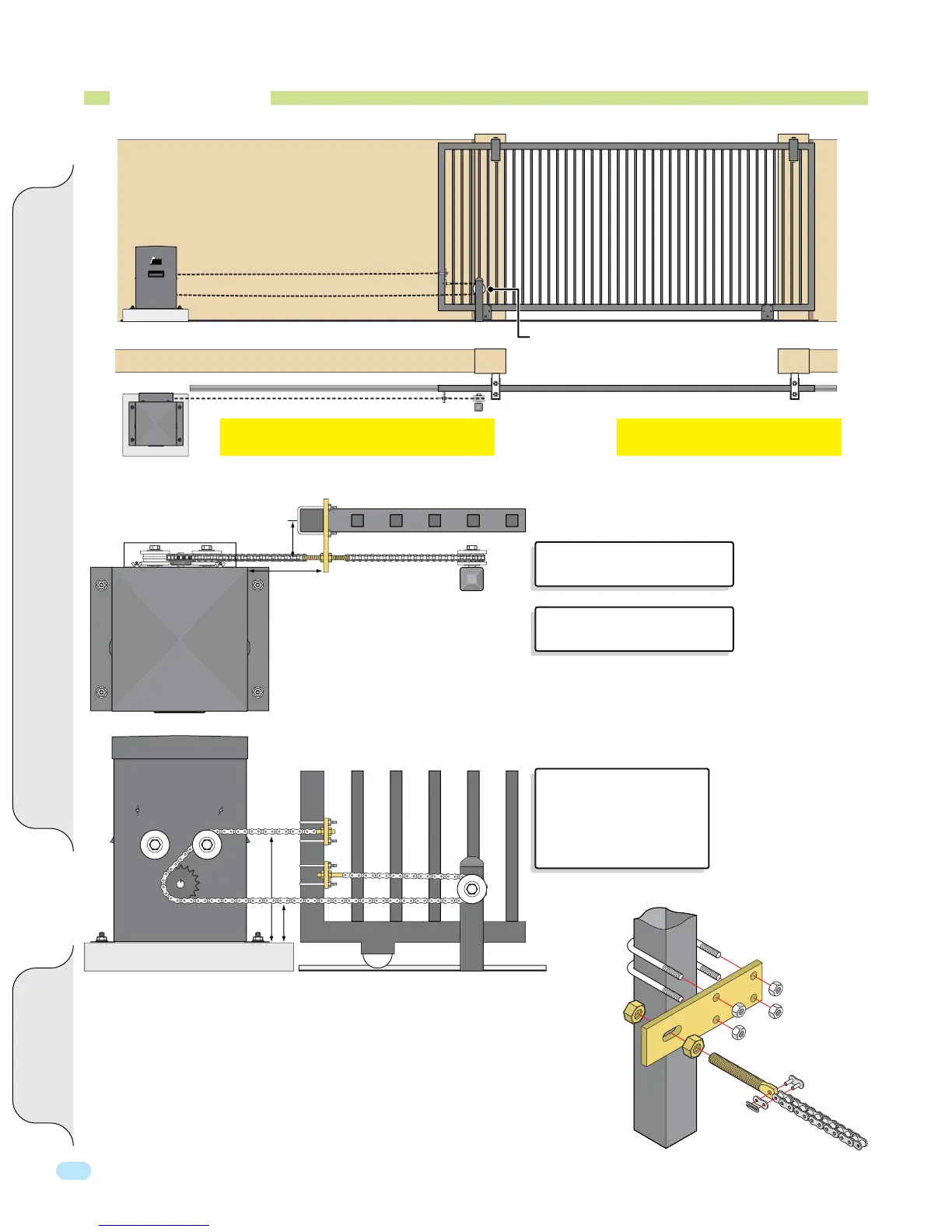

Proper REAR Chain Position
8”
3”
4.5”
8” Min
Idler
Wheel/Sprocket
Operator and chain
MUST be parallel to gate!
Chain bracket MUST align with
idler wheels and sprocket!
Chain brackets MUST be
mounted so the chain
remains the same height
as it is on the idler
wheels and sprocket!
Sprocket
Idler Wheel
NOTE: REAR installation can be mounted on a
concrete pad or post mount, see next page.
NOTE: Make sure safety guidelines are
followed on pages 4-6 for installation.
Idler Wheel/Sprocket
POWERED BY EAGLE
AV I
REAR Installation
Gate
Connection
To Next Page
