Eagle AVI - Concrete Pad Installation; Post Mount Installation

7
AVI Slide Rev - C
FRONT Installation
METHODS OF INSTALLATION
FRONT Position
An experienced installer should perform the installation. Improper installation may result in property damage, severe injury or death.
Read the entire manual before proceeding with the installation.
Eagle Access Control Systems, Inc. is not responsible for researching and complying with local building codes. Be sure to check all local
building codes before installation.
NOTE: FRONT installation can be mounted on a
concrete pad or post mount, see page 9.
Standard method of installation.
POWERED BY EAGLE
AV I
Top View

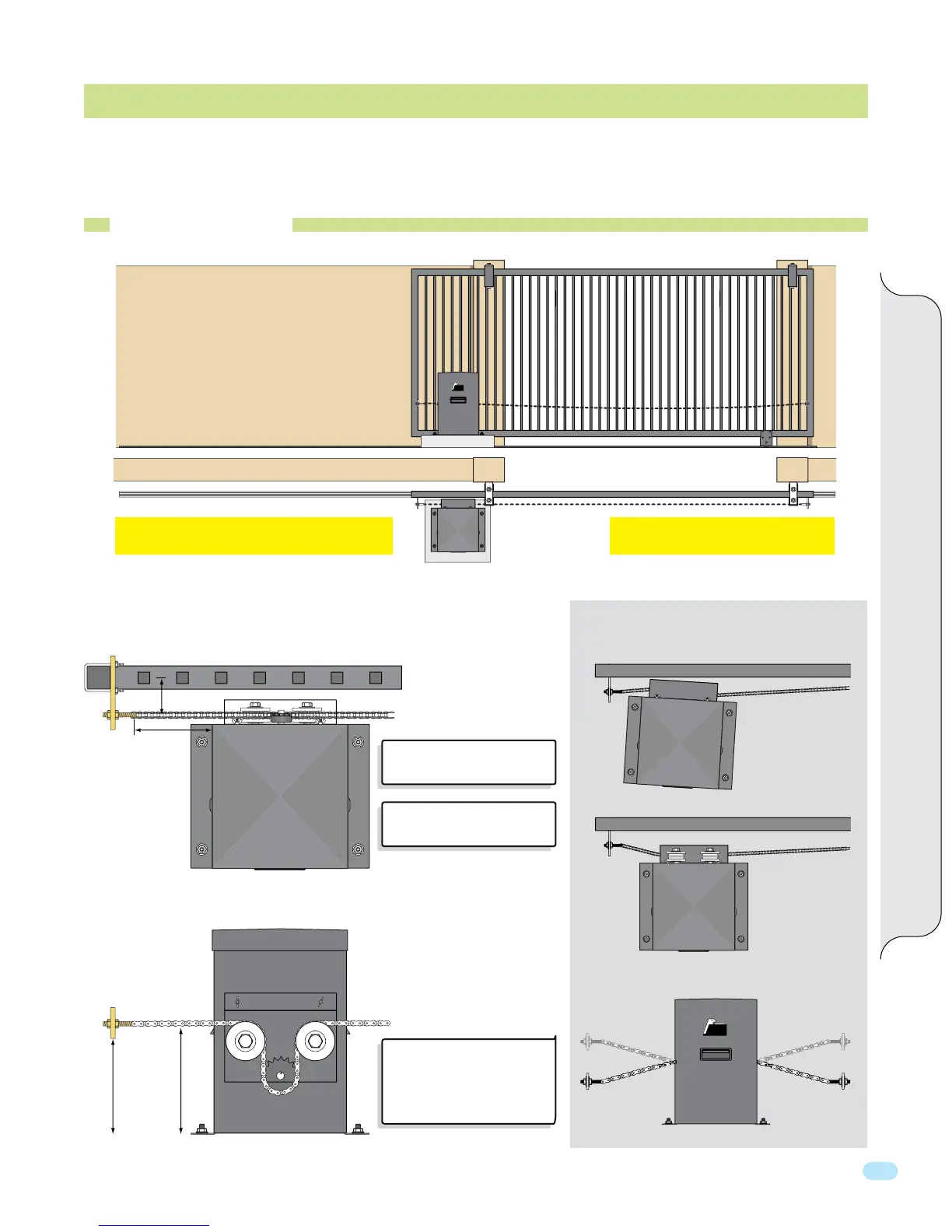

COMMON MISTAKES
TO BE AWARE OF:
Proper FRONT Chain Position
Operator and
chain are NOT
parallel to gate.
Chain bracket
does NOT
align with
idler wheels.
Chain brackets
positioned
too low.
Chain
brackets
positioned
too high.
Operator and chain
MUST be parallel to gate!
Chain bracket MUST align
with idler wheels!
4.5”
8” Min
8”
Correct
Chain
Bracket
Height
Chain brackets MUST be
mounted so the chain
remains the same height
as it is on the idler wheels!
NOTE: Make sure safety guidelines are
followed on pages 4-6 for installation.
POWERED BY EAGLE
AV I
NO
NO
NO
NO
NO
NO
Idler Wheels
Chain
Bracket
Gate
Gate
