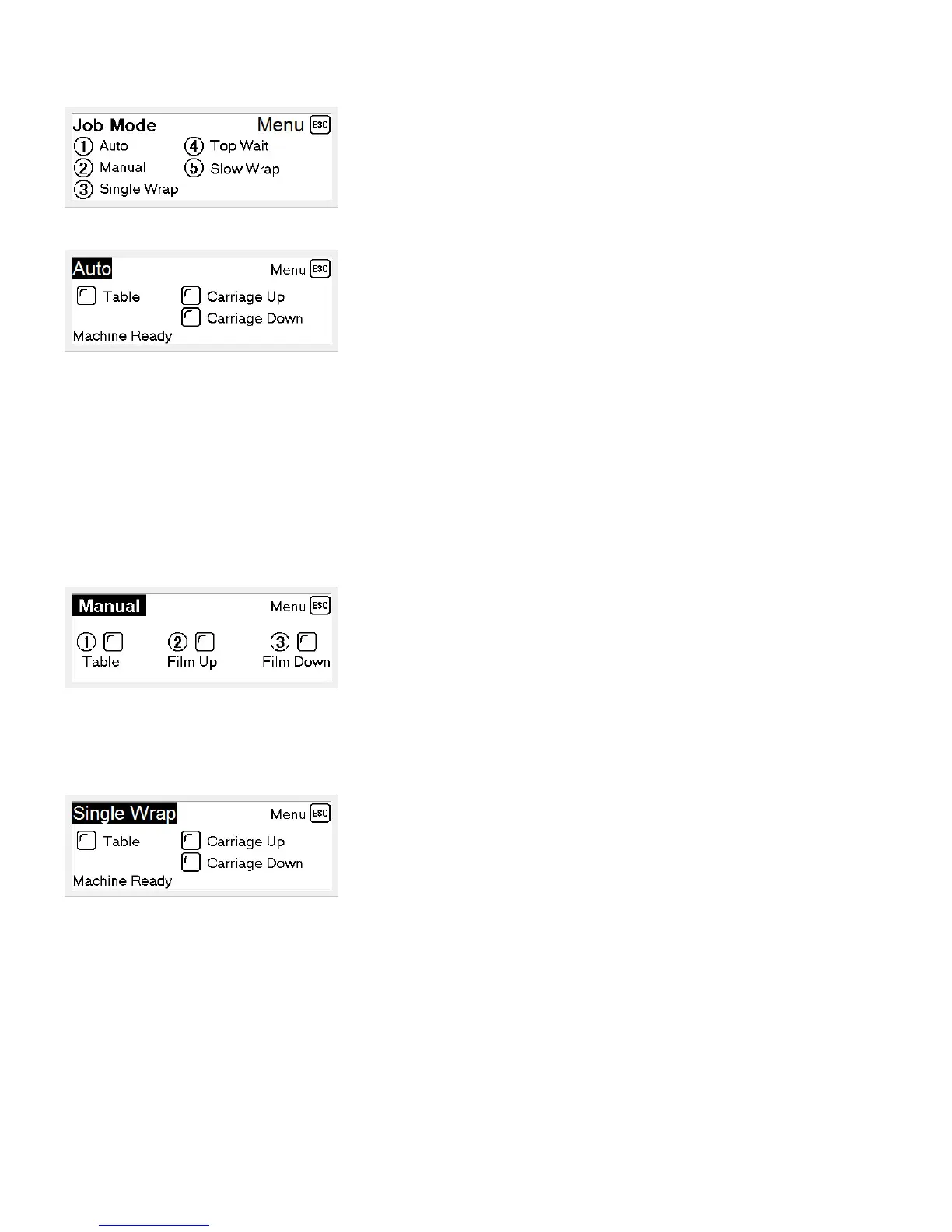

3.4 Navigating LCD Screens
Job Mode
From this screen, you can select the different types of modes
the machine has.
To the bottom left of the screen, there is a text notifier that
displays machine status.
Job Mode / Auto
This mode is used to automatically wrap packages.
To begin, press the Start button
The machine will wrap around the package once at the bottom
and the carriage will begin traveling up to the height of the
package. At the top of the package, the machine will wrap the
number of times set in the top cycle parameter and then the
carriage will travel to the bottom of the package and wrap the
number of times set in the bottom cycle parameter.
To the bottom left of the screen, there is a text notifier that
displays machine status.
Job Mode / Manual
This mode is used when you need to wrap goods by hand or
use the machine as a turntable.
① Table - Start/Stop turntable rotation
② Up - Start/Stop carriage travel up
③ Down - Start/Stop carriage travel down
Job Mode / Single Wrap
This mode is used when only one upward wrap is required.
To begin, press Start button
The machine will wrap the package once at the bottom. The
carriage will travel up to the top of the package, wrap the
number of times set in the top cycle parameters and the
turntable will stop. The carriage will then travel back down to the
bottom.
To the bottom left of the screen, there is a text notifier that
displays machine status.
