14
bracket holes with the letter "B" aligned with the bracket alignment
mark. Place them on the transducer aligned with the 12 o'clock
position on the transducer stem.
Reassemble the transducer and bracket and place them against the
transom. Again, check to see if you can move the transducer so it's
parallel with the ground. If you can, then go to step 3B. If it doesn't,
repeat step 2B, but use a different alignment letter until you can
place the transducer on the transom correctly.
Assemble transducer and bracket.
3. Assembling the transducer.

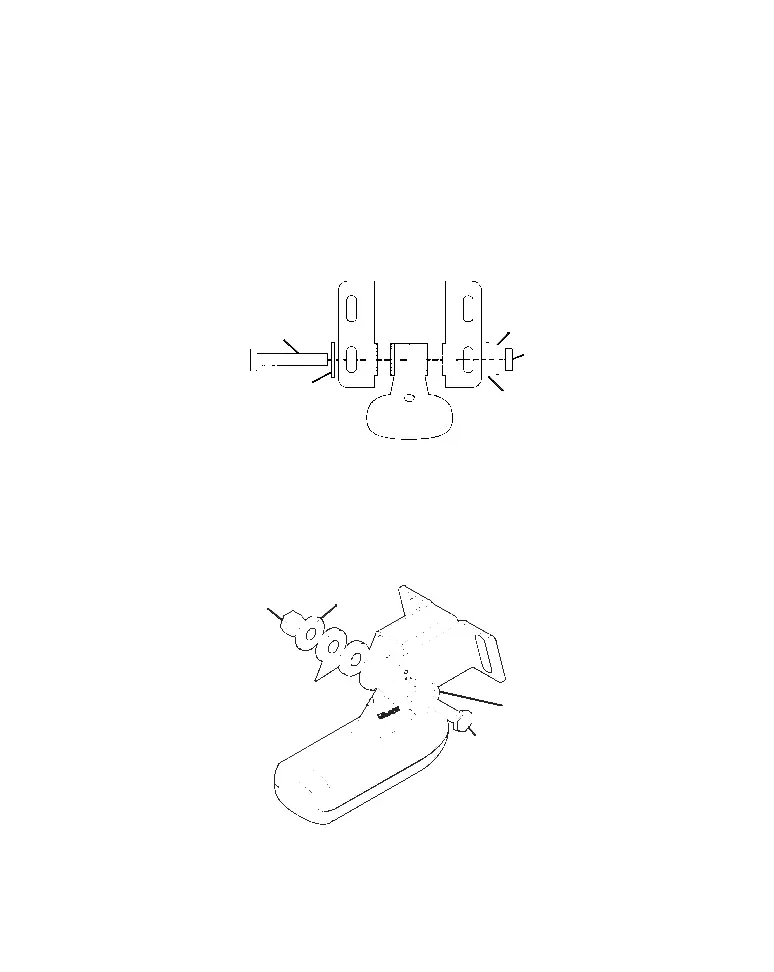

A. One-piece bracket: Once you determine the correct position for
the ratchets, assemble the transducer as shown in the following
figure. Don't tighten the lock nut at this time.
Assemble transducer and bracket.
Nut
Metal
washer
Metal washer
Bolt
Rubber
washers
Lock washer
Flat washer
Nut
Bolt
