6. Main Parts, Components Illustration & Parts List

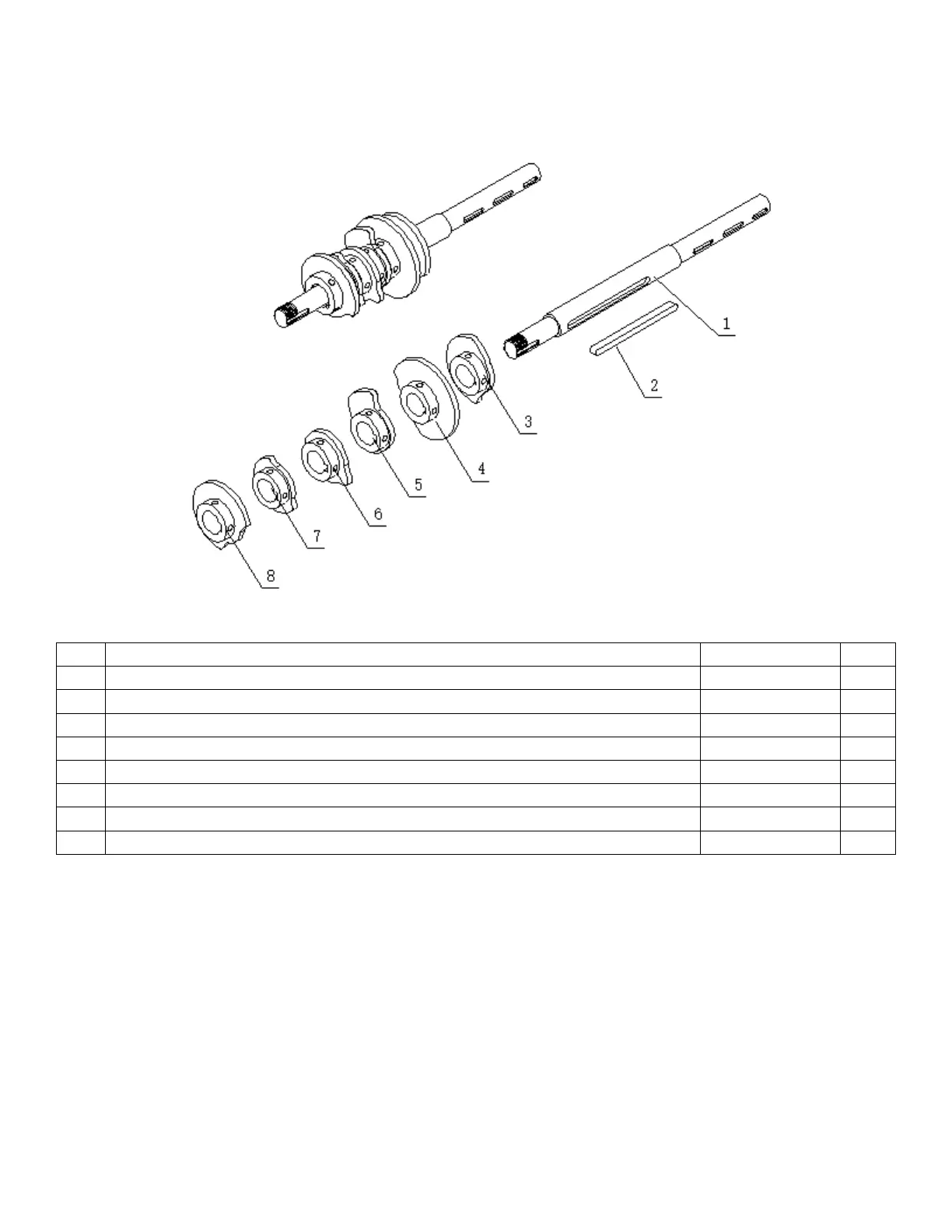

6.7 Spindle Assembly

Description

Part Number

Qty

1

Main spindle

01-27

1

2

Key

-

1

3

Cam

01-6

1

4

Cam

01-7

1

5

Cam

01-8

1

6

Cam

01-9

1

7

Cam

01-10

1

8

Cam

01-5

1
