6. Main Parts, Components Illustration & Parts List

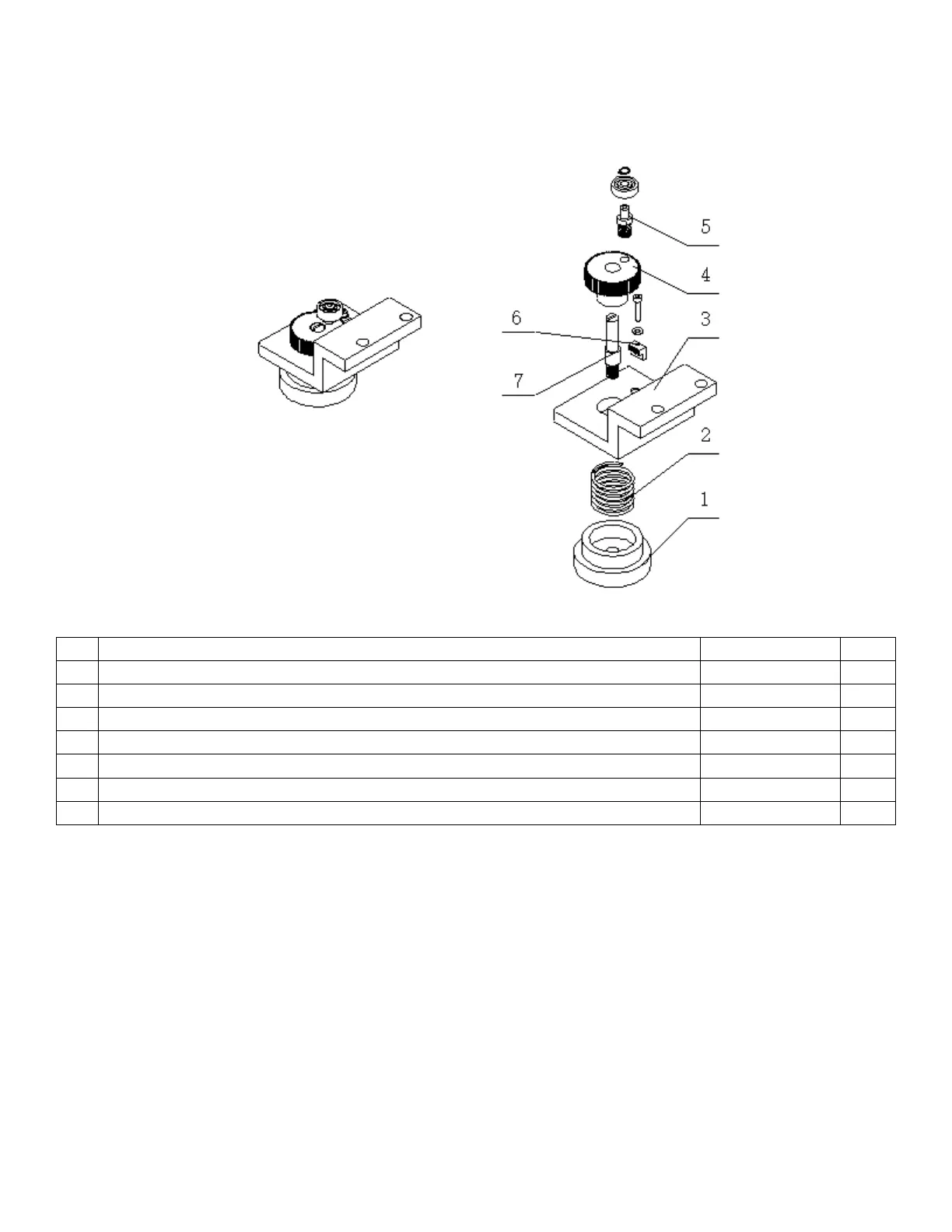

6.11 Strapping Force Assembly

Description

Part Number

Qty

1

Knob

01-205

1

2

Compression spring

01-207

1

3

Bracket

01-204

1

4

Gear

01-209

1

5

Small spindle

01-210

1

6

Direct rack bar

01-211

1

7

Spindle

01-206

1
