- 23 -

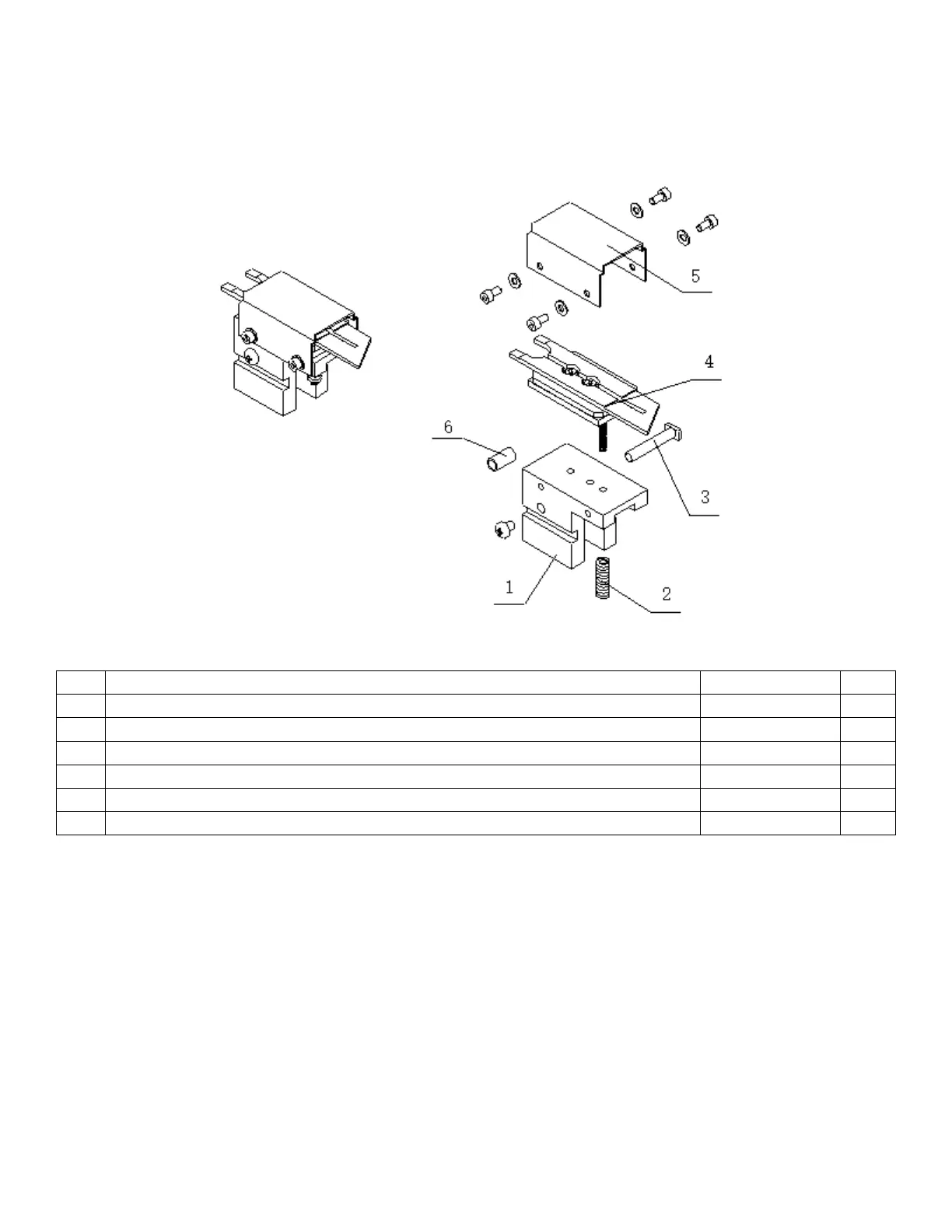

6. Main Parts, Components Illustration & Parts List

6.9 Heating Section & Slide Plate Assemblies

Description

Part Number

Qty

1

Slide

01-137

1

2

Compression spring

01-140

1

3

Spindle

01-138

1

4

Heating section combination

-

1

5

Cover

01-142

1

6

Axle sleeve

01-139

1
