Eagle 800 - Pre-Strap Feeding Mechanism

- 27 -

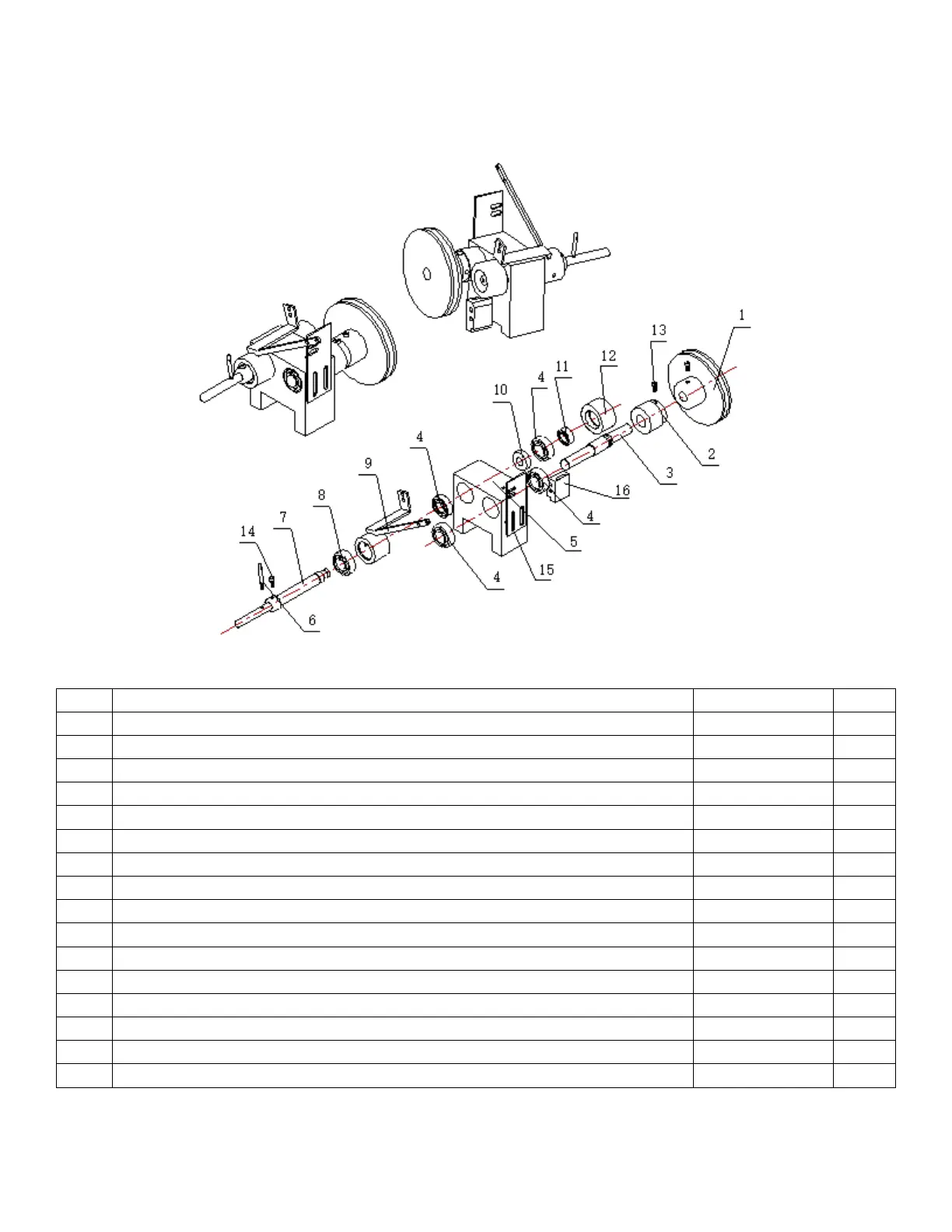

6. Main Parts, Components Illustration & Parts List
6.13 Pre-Strap Feeding Mechanism
Description
Part Number
Qty
1
Belt Wheel
00-92
1
2
Upper Strap Wheel
00-95
1
3
Upper Axle
00-93
1
4
Bearing
80102
4
5
Base
00-83
1
6
Pendulum Bar
00-97
1
7
Lower Axle
00-94
1
8
Bearing
80100
1
9
Rocker Wheel
00-85
1
10
Distance Sleeve
1
11
Bearing
80101
1
12
Lower Strap Wheel
01-98
1
13
Screw
M6×10
1
14
Screw
M5×6
1
15
Switch Bracket
1
16
Inserting Strap Portal
00-108
1
