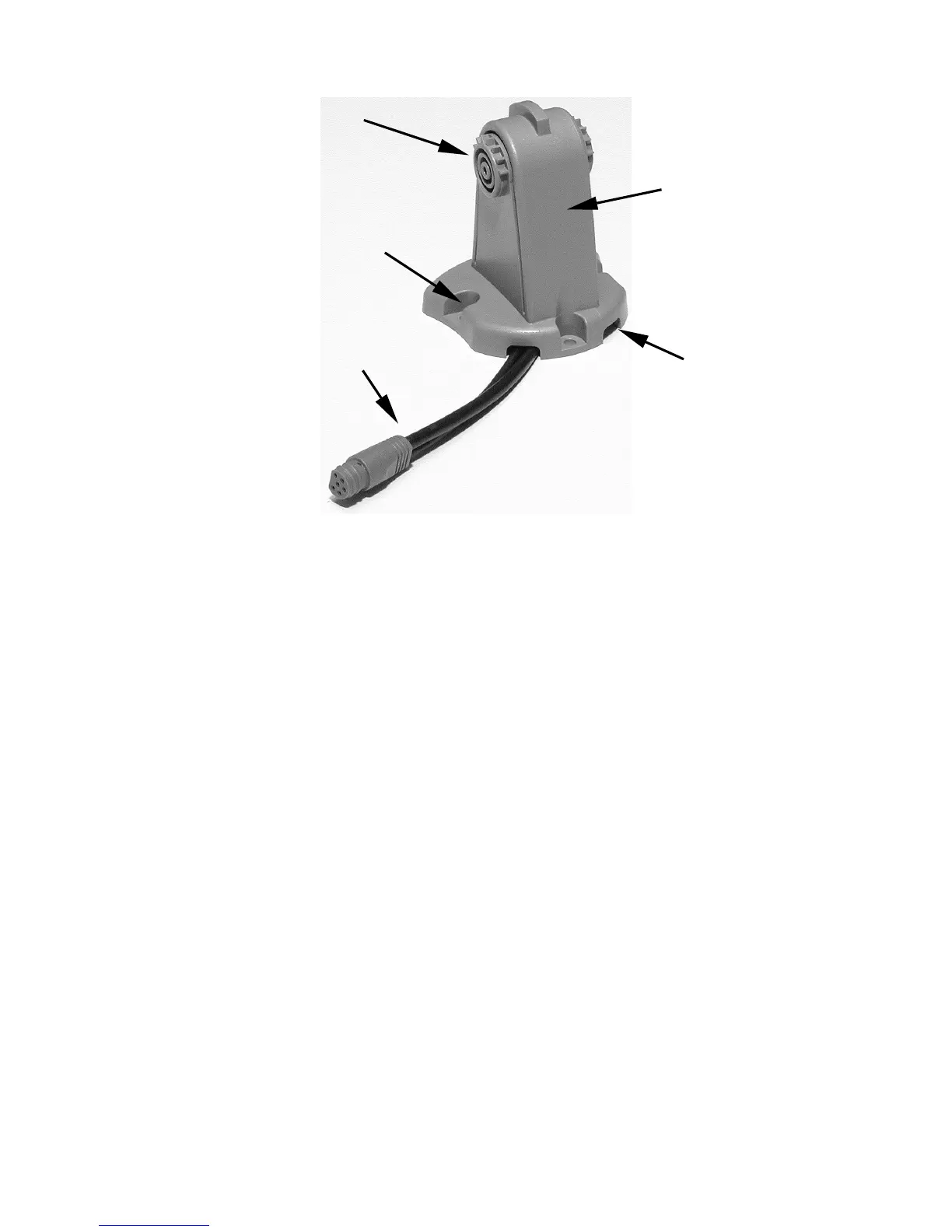

FishEasy 320C quick release mounting bracket. Slots in the base allow
routing the cable from beneath the mount.
Attach the unit to the bracket by first connecting the power/transducer
and accessory cables. Then, hold the sonar unit vertically and slide it
onto the bracket from above. (The back of the unit should be touching
the front of the bracket as you lower it into position.) As you push
down, the unit will lock into place with a distinct click.
To adjust the viewing angle, pinch the ratchets with one hand, then tilt
the unit with your other hand. Release the ratchets and the unit locks
into the new position. To dismount the unit for storage, press the ratch-
ets and lift the unit off the bracket.
Rear
(away from viewer)
Cable slot
Screw hole
Power/transducer c
a
ble
Ratchet
