- CH-7 (-) programme time output:
This channel-6 is a negative (-500mA) output features, this channel can be programmed
(1)- Arming output from 1~120sec.
(2)- Press button , output from 1~120sec.
(1)- Arming output 1~120sec. if programmed, this channel will activate when arming, the
output timing can be programmed from 1 to 120seconds.
(2)- Press button output 1~120sec. If programmed, to operate this channel by press
button for over 2sec. This channel will constant output for programme time.
Exit: When this channel is outputting, if press button once, it will stop outputting.
NOTE: This channel can be programmed pulse delay time (1~120sec.), If programmed,
channel-6 will delay output with programme pulse delay time.

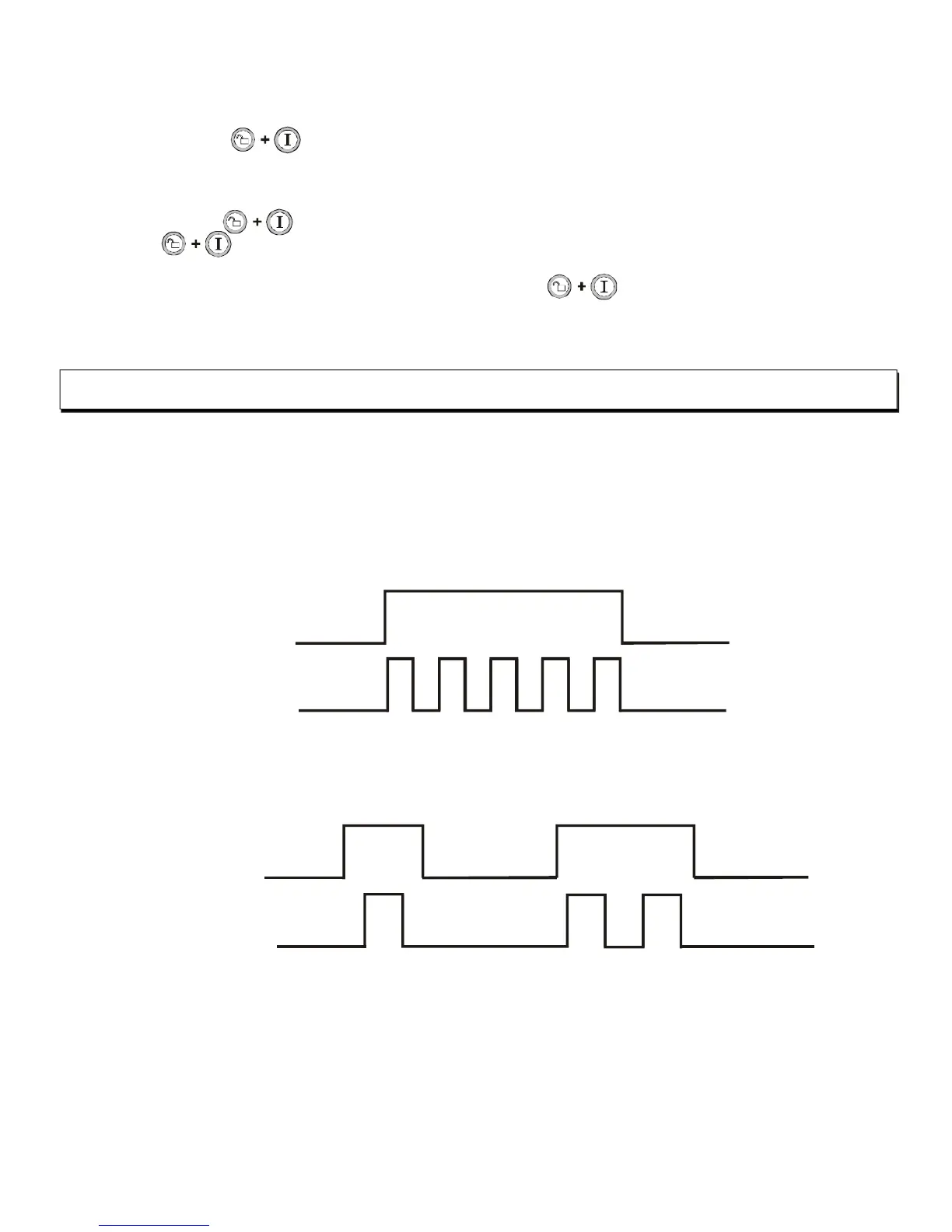

Control the Parking Lights pulse output:
The parking lights output can be programmed 2 types pulse output (A-pulse: Normal car /
B-pulse: Hazard switch), if programmed with B-pulse output, the parking lights output
(any white wire) is connected to the car's hazard switch. White/red wire connect to the
(+12V or - Ground) , for the signal power source of hazard switch.
The pressing of hazard switch creates stable electrical signal, when the signal is present,
the parking lights are flashing.
Hazard SW.
Hazard SW.
Parking Lights.
Parking Lights.
First push hazard switch
Second push hazard switch
Using this method, the alarm imitates car's hazard sw. button clicks. Connecting the alarm's
white wire to the hazard sw. button.
(White wire)
T1
T2
Arm
Disarm
Arm the system, alarm is generated T1 length pulse. During the time of T1, it must only take
one turn on of parking lights. If T1 time is too short, parking lights will not flash. If T1 time is
too long, parking lights will flash more than one time.
This T1 time length can be programme 0.3~0.6sec.
Disarm the system, alarm is generated T2 length pulse. During the time of T2, it must only
take two parking lights flashes. If T2 time is too short, parking lights will not flash. or flash
only once. If T2 time is too long, parking lights will flash more than two time.
This T2 time length can be programme 0.6~0.9sec.
