Step 2:

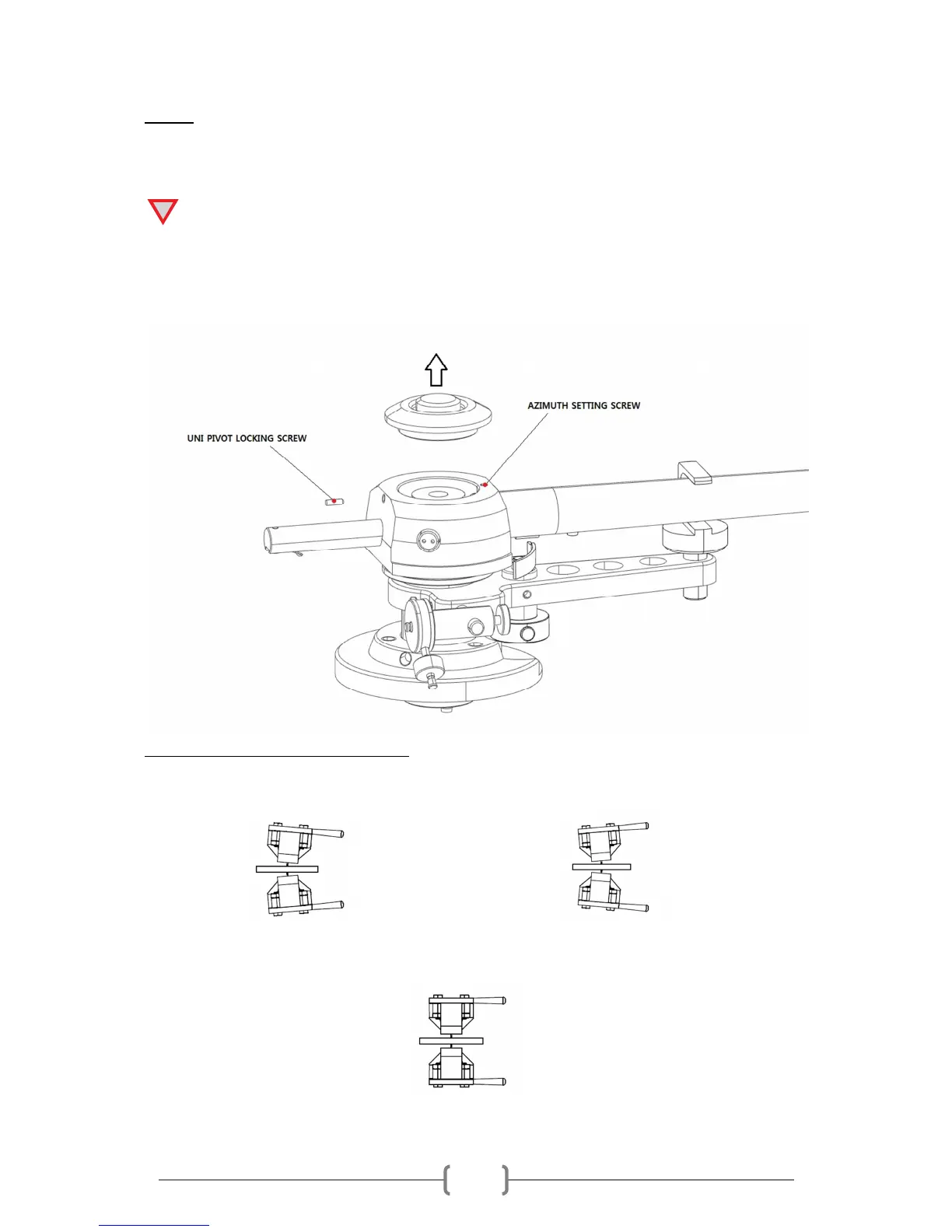

Unscrew small AZIMUTH SETTING SCREW by 1,5mm hexagonal key from supplied

accessories.

NOTE! DO NOT REMOVE THE SCREW COMPLETELY!

Slacken off the screw just enough to be able to revolve the arm tube without applying force

and set the azimuth to the correct possition.

Correct position can be checked from the front

view, preferably with needle placed on a mirror which is placed on platter.

Examples of incorrect azimuth setup:

Too much left angle:

Too much right angle:

The correct position is 100% perpendicular to the record.
