9130 UPS (700–3000 VA) User's Guide S 164201718 Rev 3 www.eaton.com/powerquality
37
Chapter 4 Operation
This chapter contains information on how to use the Eaton 9130,
including front panel operation, operating modes, UPS startup and
shutdown, transferring the UPS between modes, retrieving the Event
Log, setting the power strategy, and configuring bypass settings, load
segments, and battery settings.
Control Panel Functions
The UPS has a four-button graphical LCD with backlight. It provides
useful information about the UPS itself, load status, events,
measurements, and settings (see Figure 17).
Power On Indicator (green)
On Battery Indicator (yellow)
Bypass Indicator (yellow)
Alarm Indicator (red)
On/Off Button
Escape Up Down Enter
esc

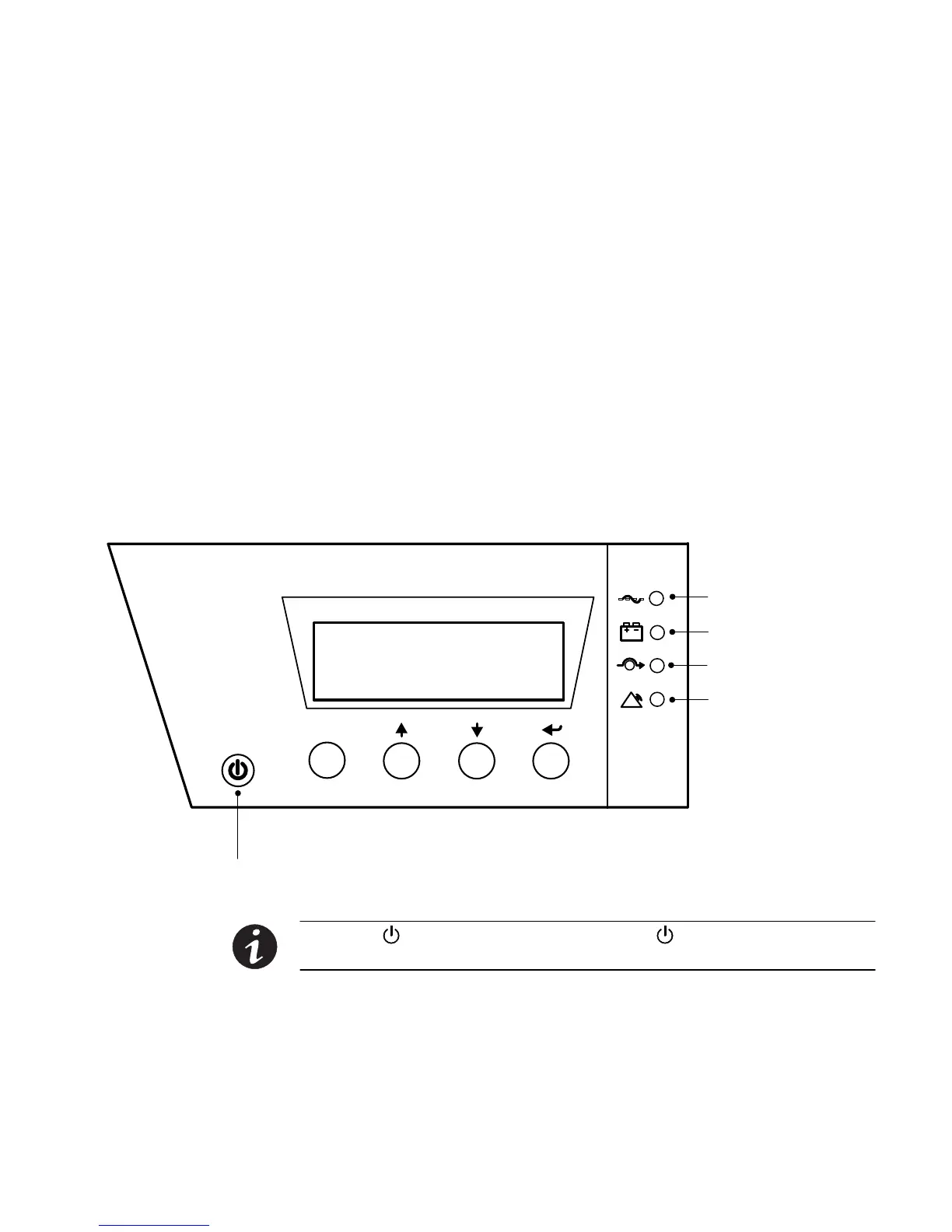

Figure 17. Eaton 9130 Control Panel
NOTE The
button controls only the UPS output. The button has no effect on
equipment connected to the UPS.

Eaton 9130 UPS Specifications

General

Transfer Time	0 ms
Waveform Type	Sine wave
Output Voltage	200/208/220/230/240V
Input Voltage Range	160-294V (adjustable to 140-300V)
Frequency Range	50/60 Hz ± 3 Hz (auto sensing)
Efficiency	Up to 95%
Form Factor	Rack/Tower Convertible
Battery Type	Sealed, lead-acid
Communication Interface	USB, RS-232, Relay
Typical Recharge Time	3 hours
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-15°C to 45°C (5°F to 113°F)
Relative Humidity	0% to 95% (non-condensing)
Safety Approvals	UL, cUL, CE
