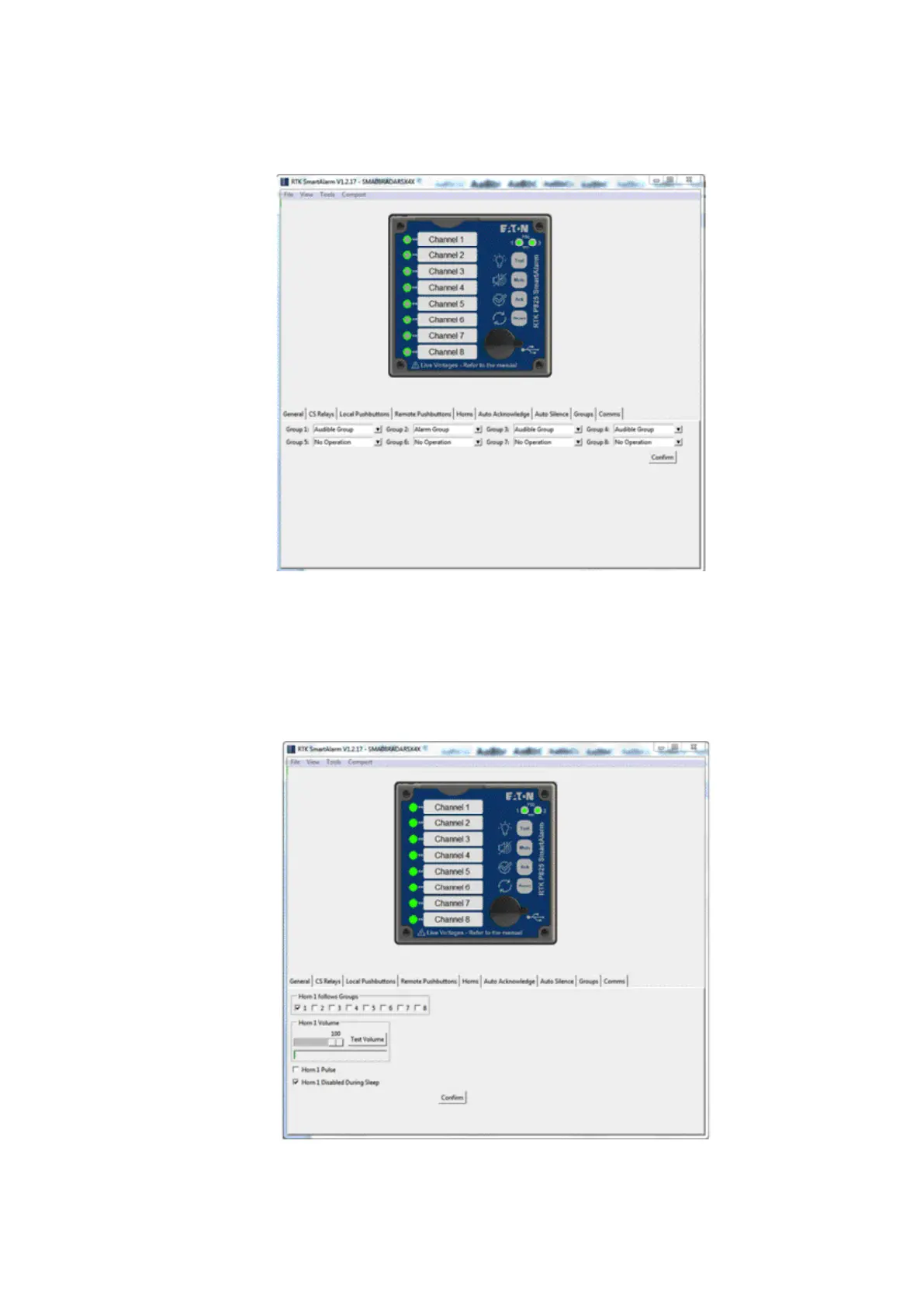

21.8 Assigning the Group Type
Grouping Example 1
In the above example the “Group Type” has been set to Audible.
21.9 Assigning a Group to the Internal Audible
Grouping Example 2
In the above example the internal horn has been set to follow “Group 1”
