Page 6 I.L.15.01.T.K.
Effective June 2000

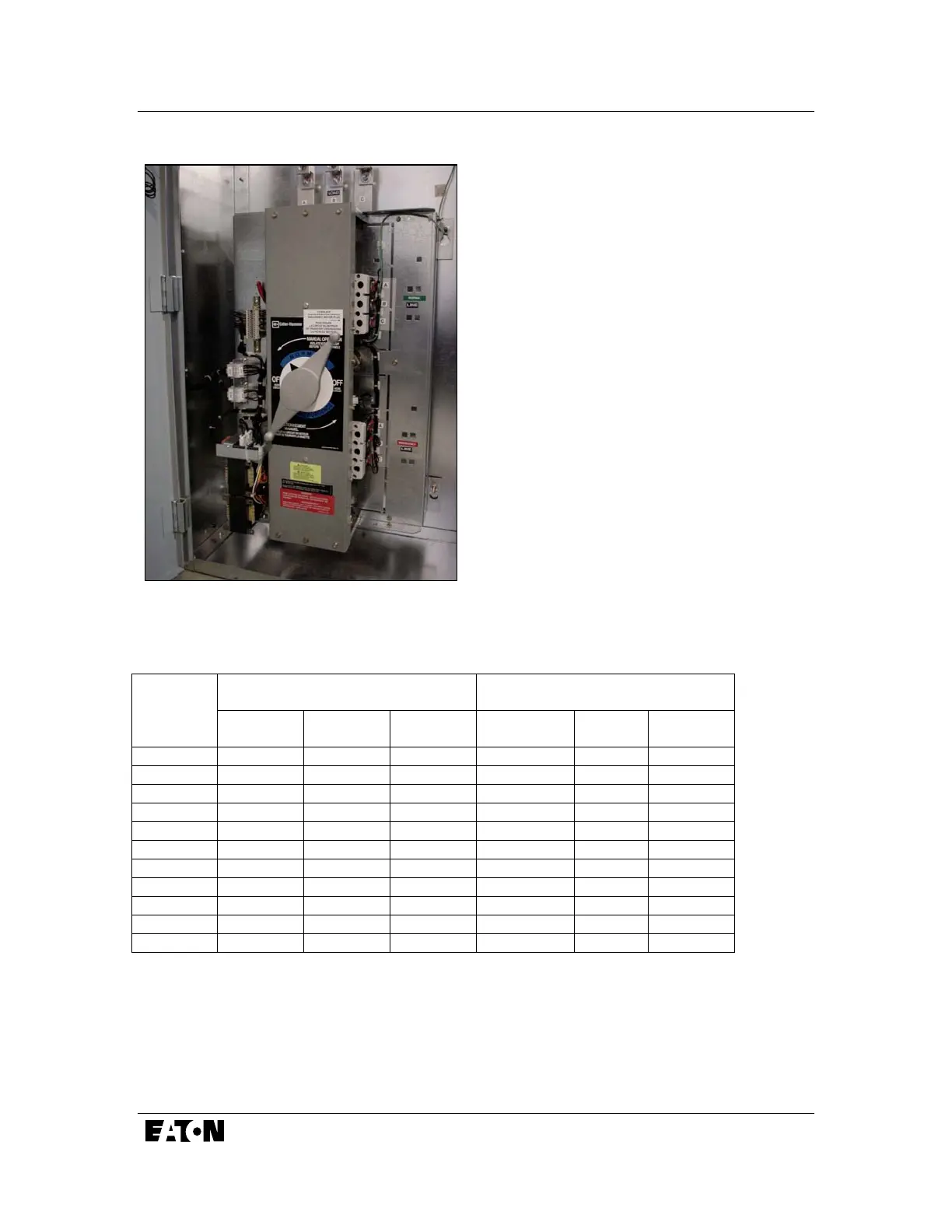

Figure 3 - Typical Power Panel for 200-1200A models
4.3 Table 1 - SYSTEMS COORDINATION INFORMATION –
WITHSTAND, CLOSING & INTERRUPTING RATINGS
Ratings when used with upstream
breaker (kA)
Ratings when used with upsteam
fuse (kA)
ATS
Ampere
Rating
240V 480V 600V
Max Fuse
Rating
Fuse
Type
600V
30 100 65 25 200 J,T 200
70 100 65 25 200 J,T 200
100 100 65 25 200 J,T 200
150 100 65 25 400 J,T 200
225 100 65 35 400 J,T 200
300 100 65 35 400 J,T 200
400 100 65 35 600 J,T 200
600 65 50 25 800/1200 J,T 100/200
800 65 50 25 1200/1600 L 100/200
1000 65 50 25 1600 L 200
1200 65 50 25 1600 L 200
