Eaton DF6000 - Networking

36 Amended: Jan 2014
Networking
Introduction
Up to 63 Easicheck and 126 DF6000 panels can be networked together.
Each panel must have a Self Addressing Network Card fitted to the main PCB.
Network Technology used is “LonWorks” (Protocol).

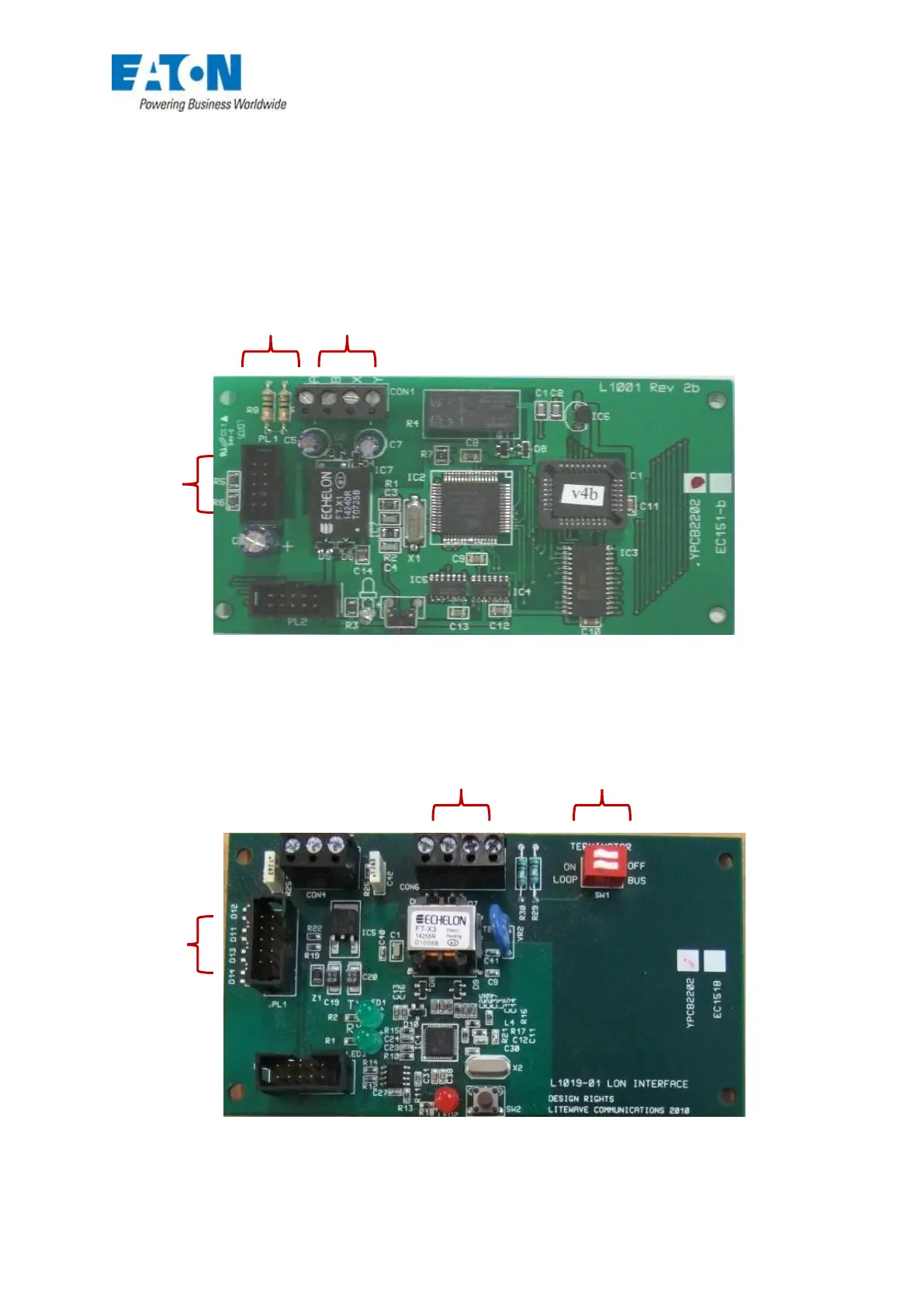

FIG 32
FIG 33
Draka 910234
Network Cable
Terminator resistors
2 x 51 Ω in series
Ribbon cable
to
Motherboard
Ribbon cable
to
motherboard
Terminator
resistor
switches
Draka 910234
Network Cable
