45 Amended: Jan 2014

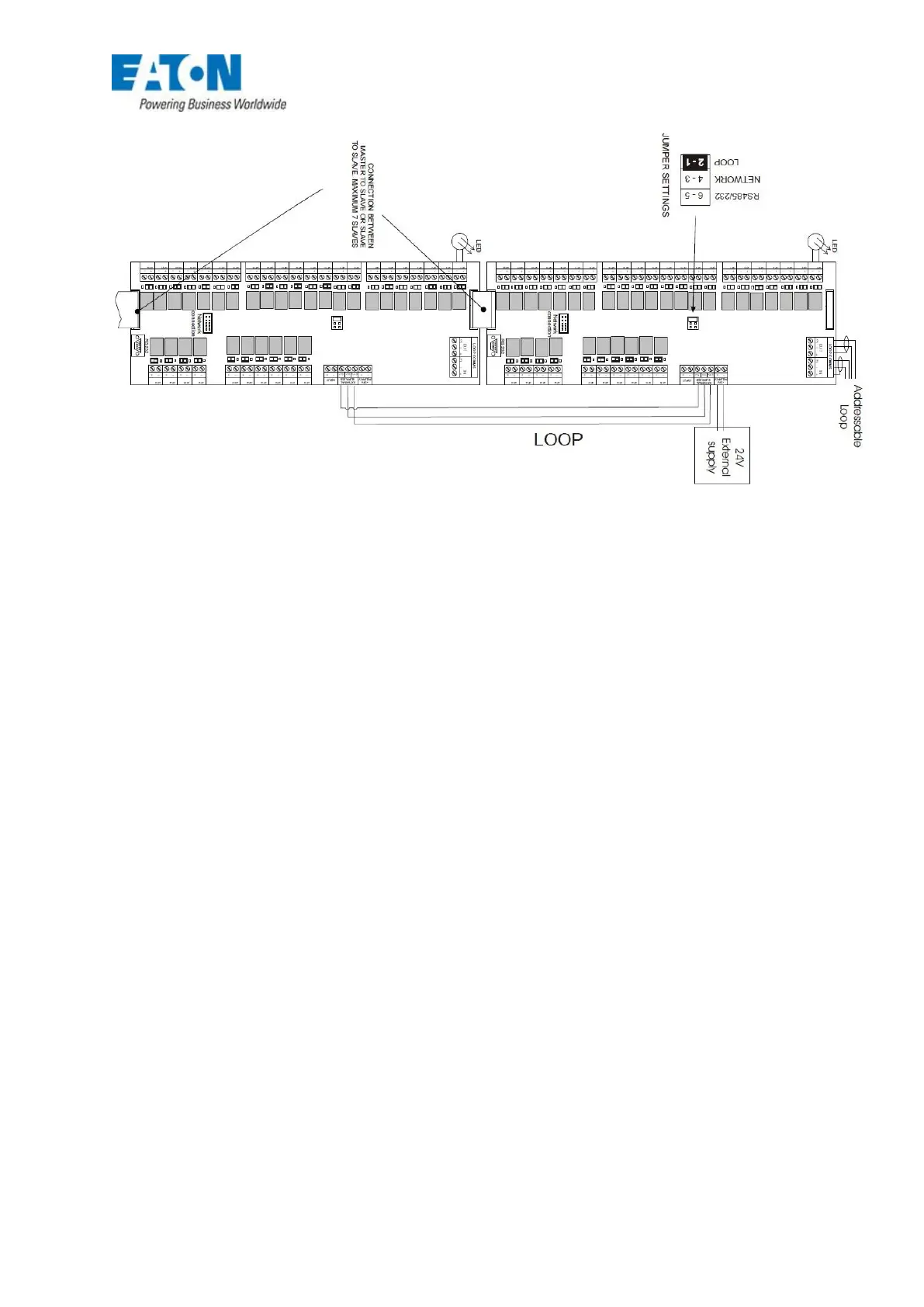

FIG 40
A third repeater called a Graphical Relay board has recently been added to the range – this device
provides 8 outputs and 4 inputs.
The inputs are pre programmed reset, evacuate, silence and test. The output are programmed in the
same manner as the 32 way board.
This unit takes one address on the numbering sequence and is powered by the loop.
