Eaton Durant Eclipse Series - AC Power Input (for AC Powered Models 57701-4 XX); DC Power Input (for DC Powered Models 57700-4 XX)

5

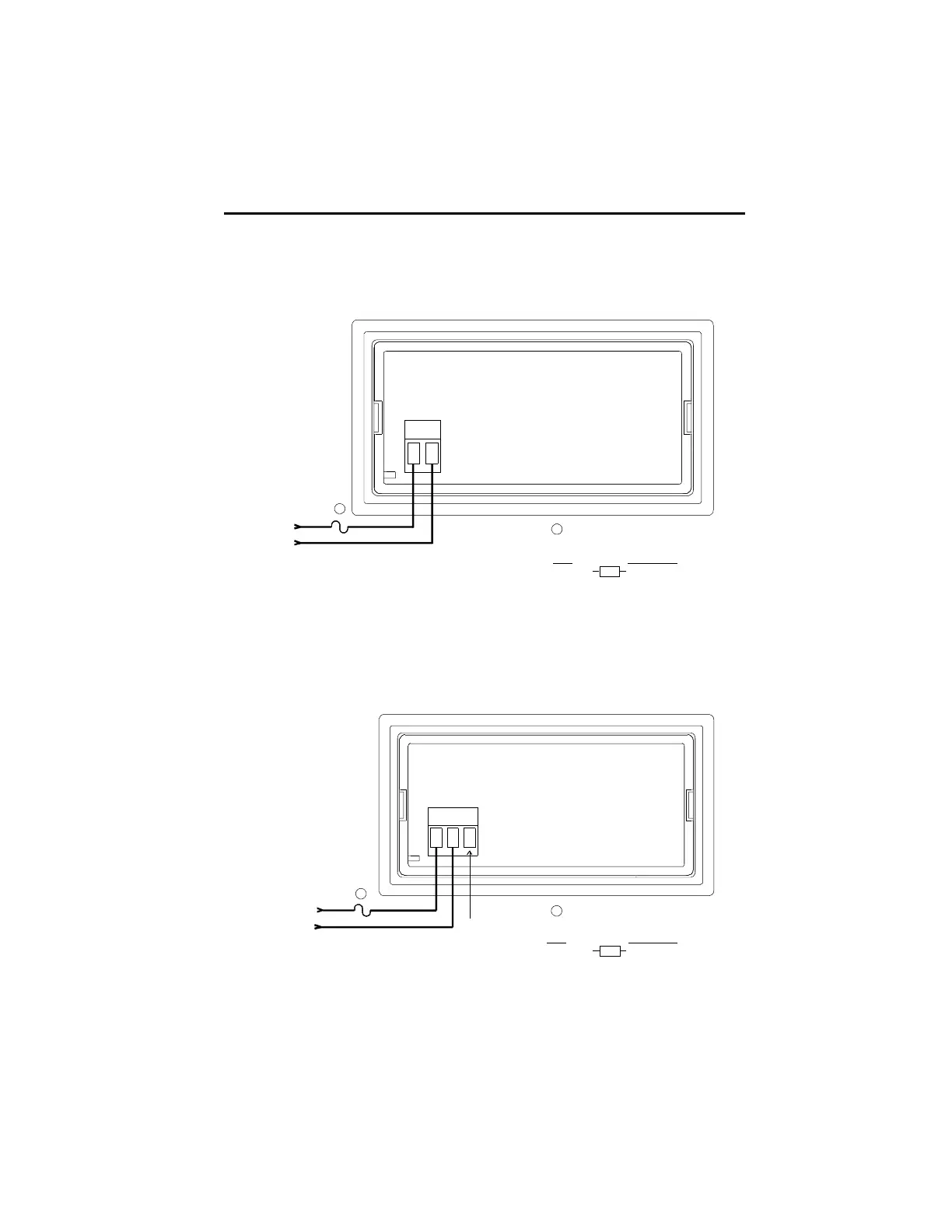

Wiring and DIP Switches
DC Power Input (for DC powered models 57700-4XX)
Durant
®
1
1
Power In +
9-30 VDC -
No Internal Fuse 1
{
External Fuse Size
U.S.
European
2 AMP, 50 V
Time Delay
T2A, 50 V
Time Delay
12 VA
AC Power Input (for AC powered models 57701-4XX)
No Internal Fuse
1
Power In L1
85-265 VAC L2
47-63 Hz
20 VA
Not
Used
1
Durant
®
1
{
External Fuse Size
U.S.
European
0.2 AMP, 250 V
Time Delay
T200mA, 250 V
Time Delay
WIRING cont.
