Instruction Leaflet IL29C092E
Eective November 2013
Installation Instructions for KD, HKD, KDC, CKD,
CHKD, Circuit Breakers with Digitrip OPTIM
Trip Unit and Powernet and/or Zone Interlock
EATON CORPORATION www.eaton.com
Terminals
Circuit Breaker
Terminal Conductors
Terminal
Mounting
Screw
. .
Terminal Mounting Screw

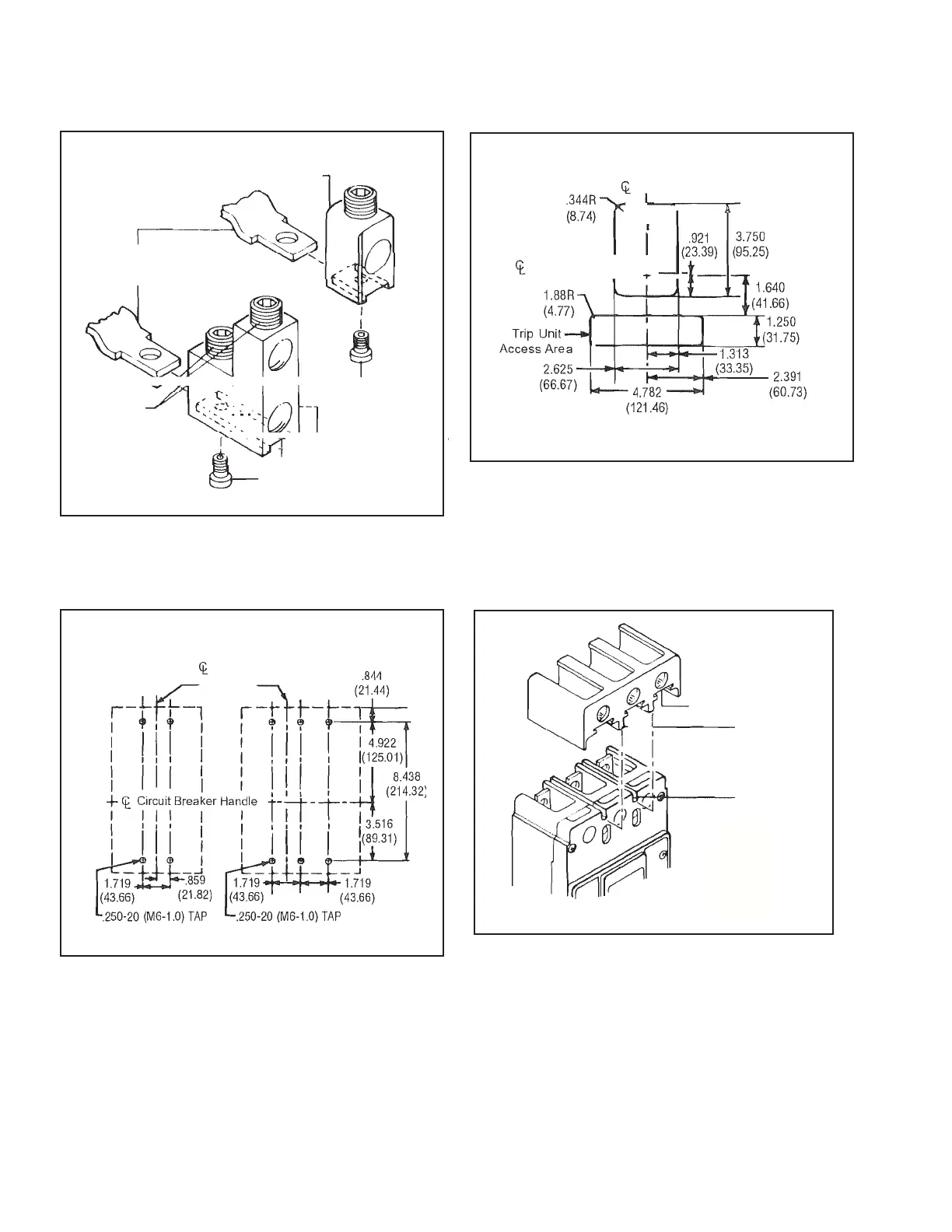

Figure 2 - 1 Terminal lnstallation
2 , 3 Pole Breakers
4 Pole Breaker
Circuit
Figure 2 - 2 Circuit Breaker Mounting Bolt Drilling Plans
Circuit Breaker Handle
Figure 2 - 3 Circuit Breaker Escutcheon Cutout
Dimensions for
3 - and 4-Pole Circuit Breakers
Terminal Cover
Dovetails
Mounting
Slots
Figure 2 - 4 Terminal Cover lnstallation
TA300K/TA350K
T300K/T350K
TA400K, TA401K, TA402K
TA400K Terminals
Circuit Breaker Handle
Breaker
Handle
-6 Holes-4 Holes
Connector
Screws
