Eaton i-on Installation Guide

i-on30EX/EXD Before You Begin
Page 7

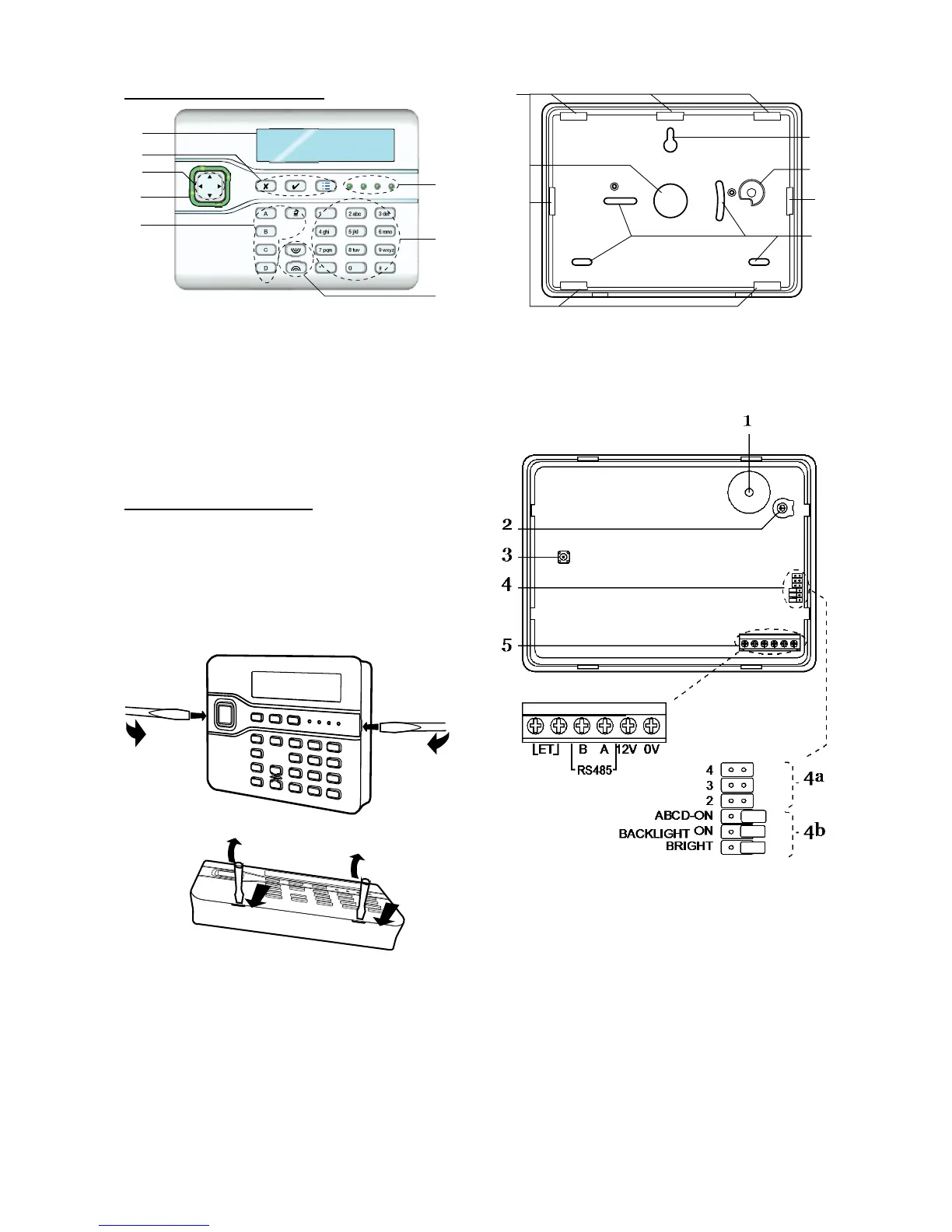

i-kp01 Controls and Displays
1. LCD display (2 x 20 characters).
2. Programming keys.
3. Navigation keys
4. Alert LEDs
5. Setting and unsetting keys.
6. Programmable HUA keys.
7. Number/text keys.
8. Set/Unset LEDs.
Figure
4
Controls and Displays
Opening the i-kp01 Keypad
Note: For EN50131-3:2009, 8.7 the keypad is a
type B ACE, fixed.
To open the keypad first gently prise off the trim
on the front and remove the two screws. Next,
carefully lever the front of the keypad (containing
the PCB and display) away from the keypad rear
housing.
Figure
5
Opening the Keypad
1. Central keyhole.
2. Rear tamper shroud.
3. Cable entry.
4. Fixing holes.
Figure
6
Keypad Rear Housing
1. Sounder.
2. Sounder volume control.
3. Tamper switch.
4. Jumpers for LED function:
5. RS485 termination jumper
6. Connector for control unit (note that the ET
terminals are inactive).
Figure
7
Keypad PCB
2
3
4
6
5
8
7
1
1
2
3
4
2
4
3
3
1
