Eaton i-on Installation Guide

i-on30EX/EXD Installation
Page 21

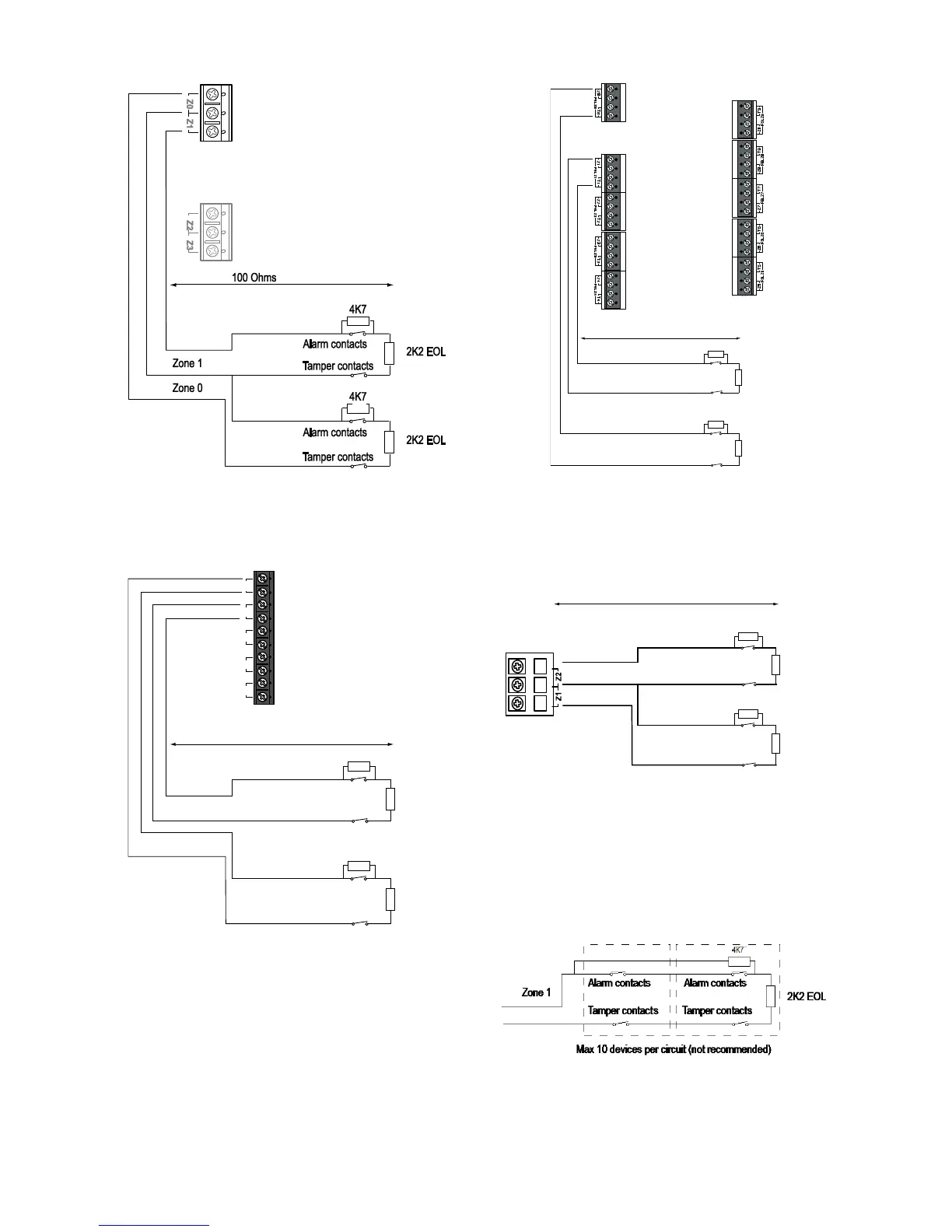

Figure
32
FSL Zone Wiring – Control Unit
Figure 33 shows the wiring connections for FSL
zones on the expander. Note that the connections
are different on the expander compared with the
control unit.
Figure
33
FSL Zone Wiring - Expander
The allowed values for Alarm Contact/End of Line
resistors are: 4k7/2k2. 1k0/1k0, 2k2/2k2, or
4k7/4k7.
Note: Use the same pair of values for ALL FSL
wired circuits on the control unit. Each wired
expander can use a different pair of resistor
values, but ALL circuits on an expander must
have the SAME values.
Figure 34 shows The wiring connections for FSL
zones on the EXP-WCC.
Figure
34
FSL Zone Wiring – EXP-WCC
The allowed values for Alarm Contact/End of Line
are the same as for the EXP-W10.
Figure 35shows the wiring connections for FSL
zones on a KEY-KPZ01. Note that the resistance
values shows are examples.
Figure
35
Wiring FSL Zones on KEY-KPZ01
When programming select the FSL resistor values
for the control unit in Installer Menu - System
Options - Wired Zone Type. To select the resistor
values for a wired expander use Installer Menu –
Detectors Devices – Wired Expanders - Edit Expander.
If you wish to connect two or more detectors to a
FSL zone, Figure 36 shows the connections
required.
Figure
36
Wiring Two Detectors per Zone FSL.
Figure 37 shows an example of wiring double
doors with two door contacts to one FSL zone.
Each door contact is a reed switch, connected
Zone 0
Zone 1
2K2 EOL
Wired Expander
4K7
Alarm contacts
Tamper contacts
2K2 EOL
4K7
Alarm contacts
Tamper contacts
100 Ohms
Z0 Z1 Z2 Z3 Z4
Zone 0
Zone 1
2K2 EOL
Wired Expander
4K7
Alarmcontacts
Tamper contacts
2K2 EOL
4K7
Alarmcontacts
Tamper contacts
100 Ohms
KEY-KPZ01
Zone 0
Zone 1
2K2 EOL
4K7
Alarm contacts
Tamper contacts
2K2 EOL
4K7
Alarm contacts
Tamper contacts
100 Ohms
