34008030EN/AD - Page 14
2. Installation
2.4 Installation in rack position

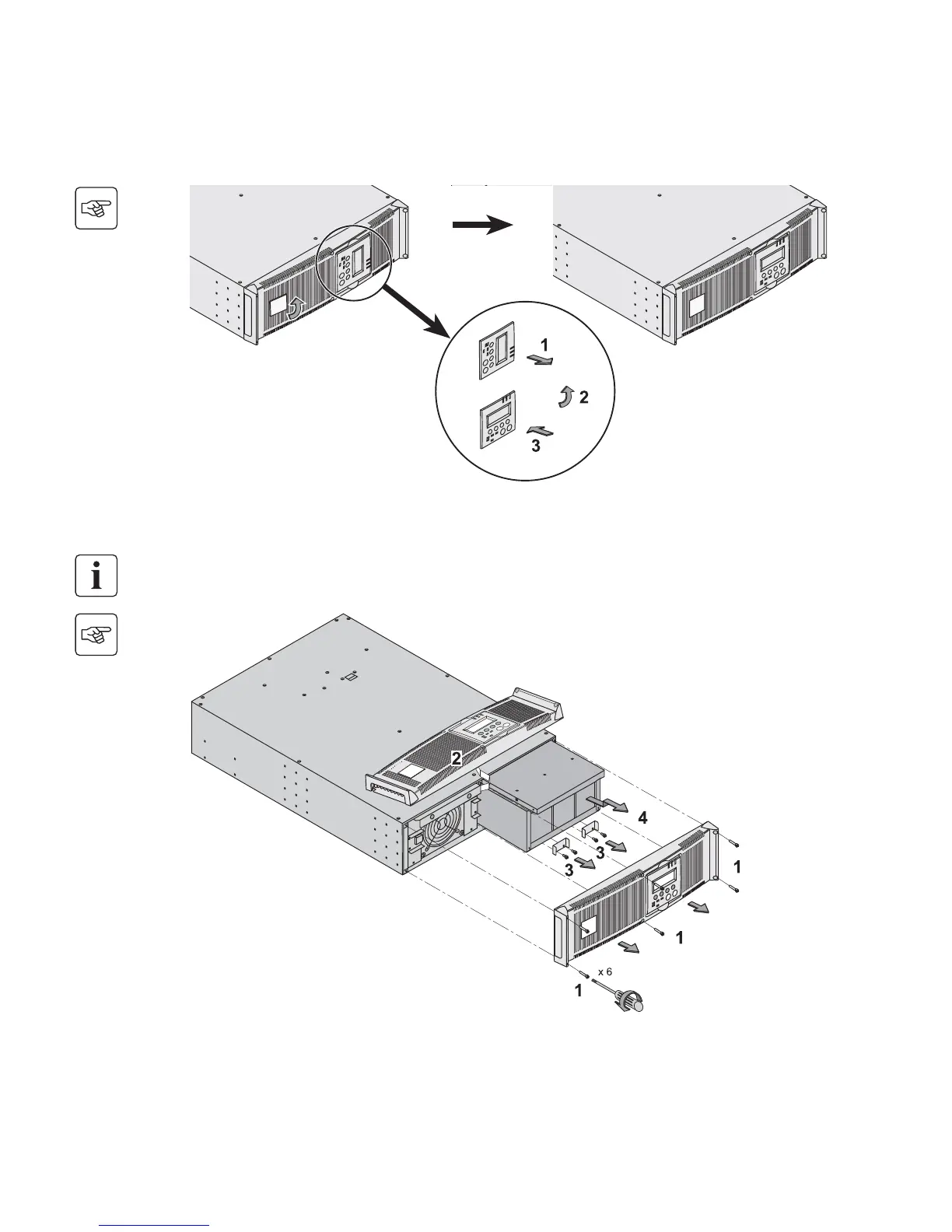

Adjustment of the orientation of the logo and control panel
UPS module rack mounting (optional rails required)
MX RT is very heavy. To ease its rack integration, we strongly recommend to remove the battery tray as shown below:
1 - Remove the 6 fixing screws to free the main front panel bezel.
2 - Place the front panel above the UPS.
3 - Remove the 4 fixing screws on the right side to free the battery sub-module.
4 - Pull the battery sub-module slightly, then lift it to extract it.
