Eaton Power Xpert Gateway 900 User Manual

Power Xpert Insight Gateway
Quick Start Guide

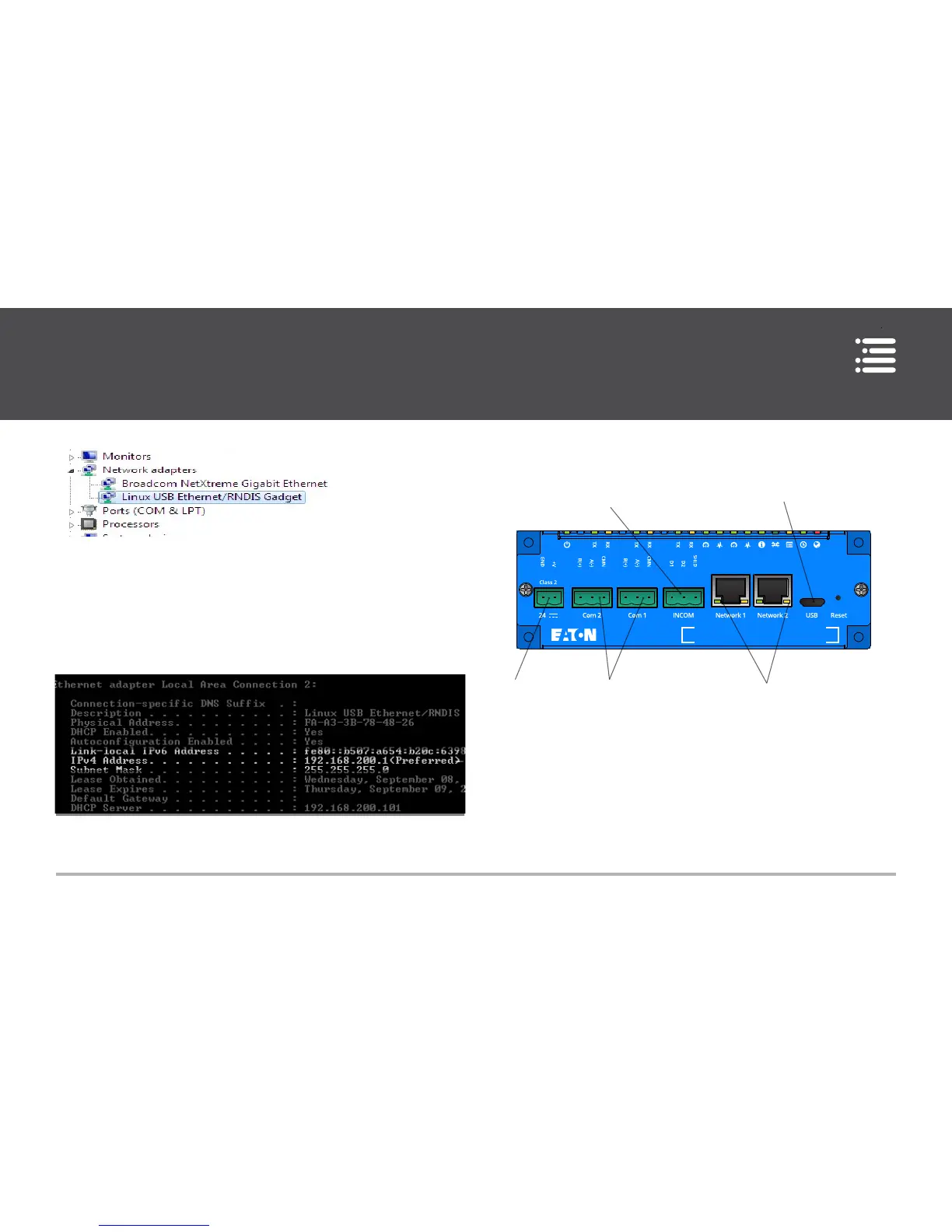

9
Linux USD Ethernet/RNDIS Gadget
12. From the Start menu, go to All Programs > Accessories >
Command Prompt to open a Command Prompt window.
13. Enter ipcong /all.
14. Verify that the assigned IPv4 address assigned to your PC is
in the 192.168.200.x range (where “x” is typically “1”).
Connecting Devices
Power Xpert Insight™
Gateway
Power Modbus Ethernet
INCOM USB to PC
Connecting a PXG900 to the Ethernet LAN
The PXG900 has two 10/100/1000 Base T, RJ-45 connectors la-
beled Network 1 and Network 2. Rules for connecting a PXG900
to the Ethernet LAN:

Eaton Power Xpert Gateway 900 Specifications

General

Model	Power Xpert Gateway 900
Category	Gateway
Manufacturer	Eaton
Ethernet Ports	2
USB Ports	1
Web Server	Yes
Data Logging	Yes
Operating Temperature	-20°C to 60°C
Power Consumption	10W
Communication Protocols	Modbus TCP, Modbus RTU, SNMP
Power Supply	24 VDC or 100-240 VAC
Humidity Range	5% to 95% (non-condensing)
