Eaton S611 Quick Start Installation Guide

Installation
2 S611 Soft Starter MN03901003E—January 2012 www.eaton.com

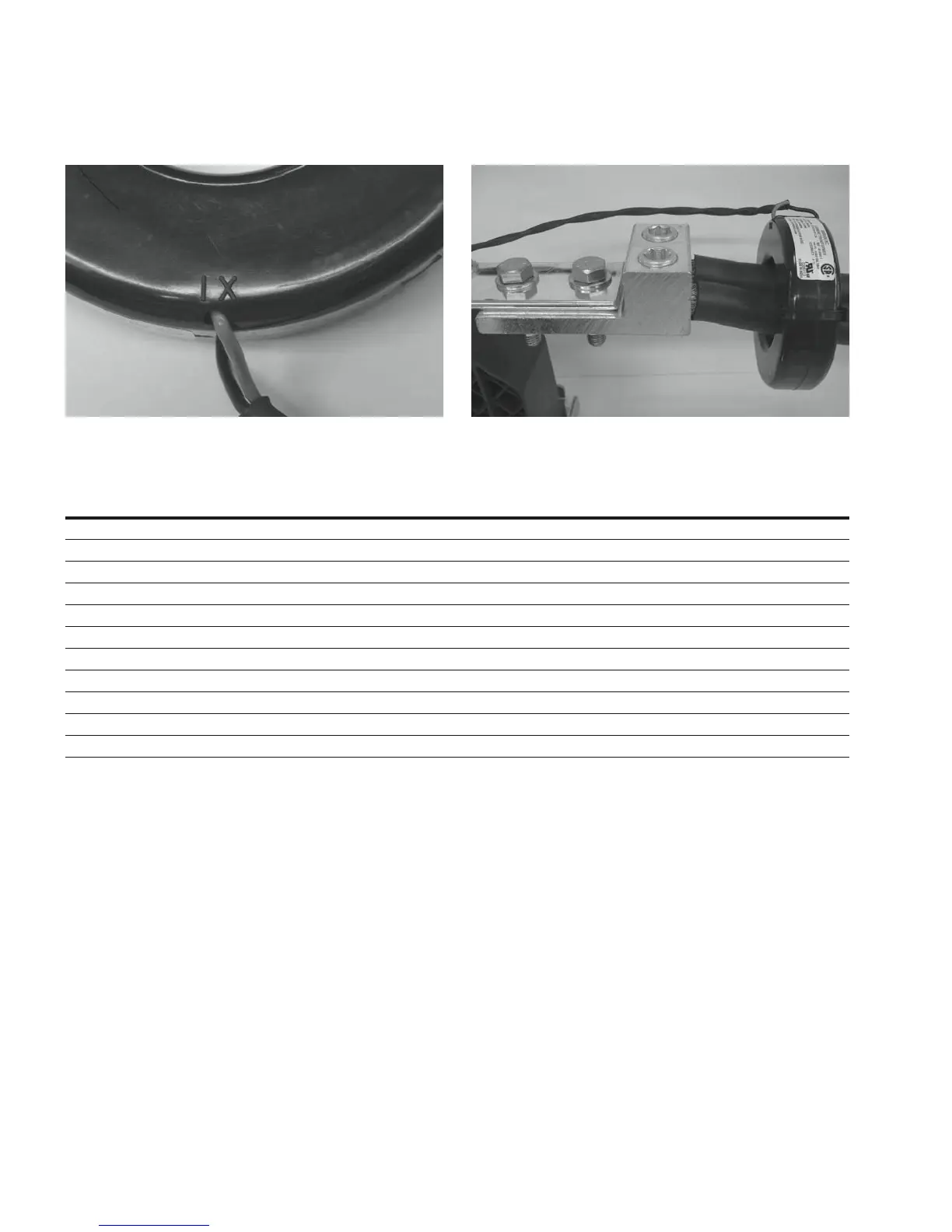

CT Polarity Identification CT Location
Line and Load Power Wiring

Notes

Additional lug selection may be found in Appendix D of the User Manual, Publication No. MN03902011E.

Each lug kit consists of three lugs. Two kits are required for both line and load connections.

Wire size based on 125% of UL 508 Table 43.2.
Short-Circuit Rating
Suitable for use on a circuit capable of delivering not more than 100,000 rms
symmetrical amperes, 600 volts maximum when protected by Class RK5 fuses or a
circuit breaker having an interrupting rating not less than 65,000 rms symmetrical
amperes, 480 volts maximum.
Current
Rating
Conductor
Size

Number of
Conductors
Mechanical Lug—
Ilsco Part Number
Torque
lb-in
Mechanical
Lug Range
Soft Starter
Catalog Number
Mechanical Lug—
Eaton Catalog Number
52A 6 AWG 1 TA-2/0 120 14 AWG–2/0 S611A052XXX S611-LUG-MO1
65A 4 AWG 1 TA-2/0 120 14 AWG–2/0 S611A065XXX S611-LUG-MO1
77A 3 AWG 1 TA-2/0 120 14 AWG–2/0 S611A072XXX S611-LUG-MO1
99A 1/0 AWG 1 TA-300 275 14 AWG–2/0 S611B099XXX S611-LUG-MO2
125A 2/0 AWG 1 TA-300 275 2 AWG–600 kcmil S611B125XXX S611-LUG-MO2
156A 3/0 AWG 1 TA-600 500 2 AWG–600 kcmil S611C156XXX S611-LUG-MO3
180A 4/0 AWG 1 TA-600 500 2 AWG–600 kcmil S611C180XXX S611-LUG-MO3
242A 350 kcmil 1 TA-600 500 2 AWG–600 kcmil S611D242XXX S611-LUG-MO3
302A 3/0 AWG 2 AU-600-2NS 500 2 AWG–600 kcmil S611E302XXX S611-LUG-MO4
361A 4/0 AWG 2 AU-600-2NS 500 2 AWG–600 kcmil S611E361XXX S611-LUG-MO4
414A 300 kcmil 2 AU-600-2NS 500 300–800 kcmil S611F414XXX S611-LUG-MO4
