NOTE
Press the Start push button. For safety reasons, it is necessary to press the
button for > 1 second for the device to switch into measurement mode. If the
button is pressed for too short a time a message will be displayed momentarily
on the LCD screen.

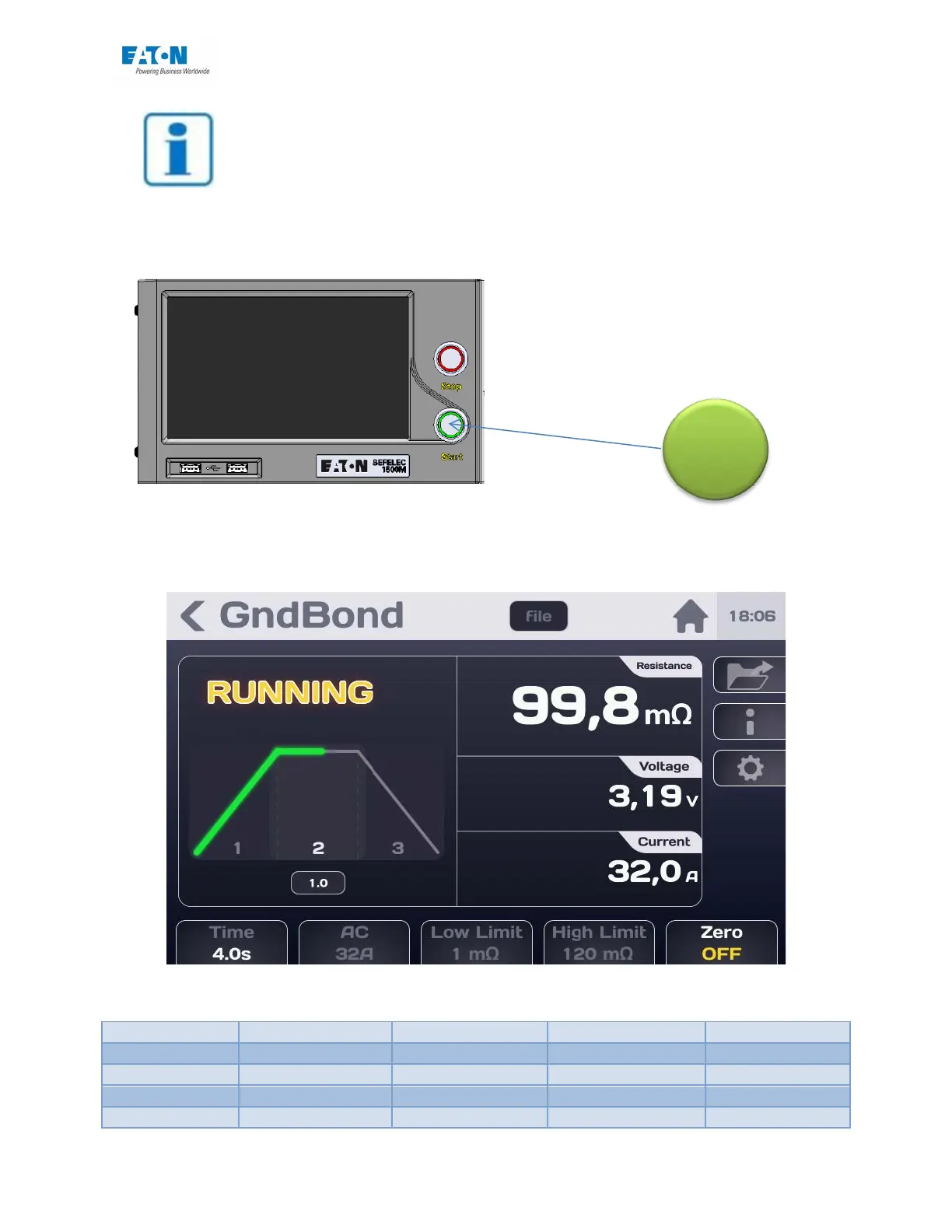

The measurement cycle takes place according to the Rise, Hold and Fall times with the following
screen:
Display
Rise
Hold
Fall
End of test
Voltage
No
Yes
Yes
Yes
Current
Yes
Yes
Yes
No
Resistance
No
Yes
Yes
Yes
PASS/FAIL
No
No
No
Yes
START
