14 UPS 20-40 kVA, 230/400 V 50/60 Hz output
User’s Guide
1025358
Revision D

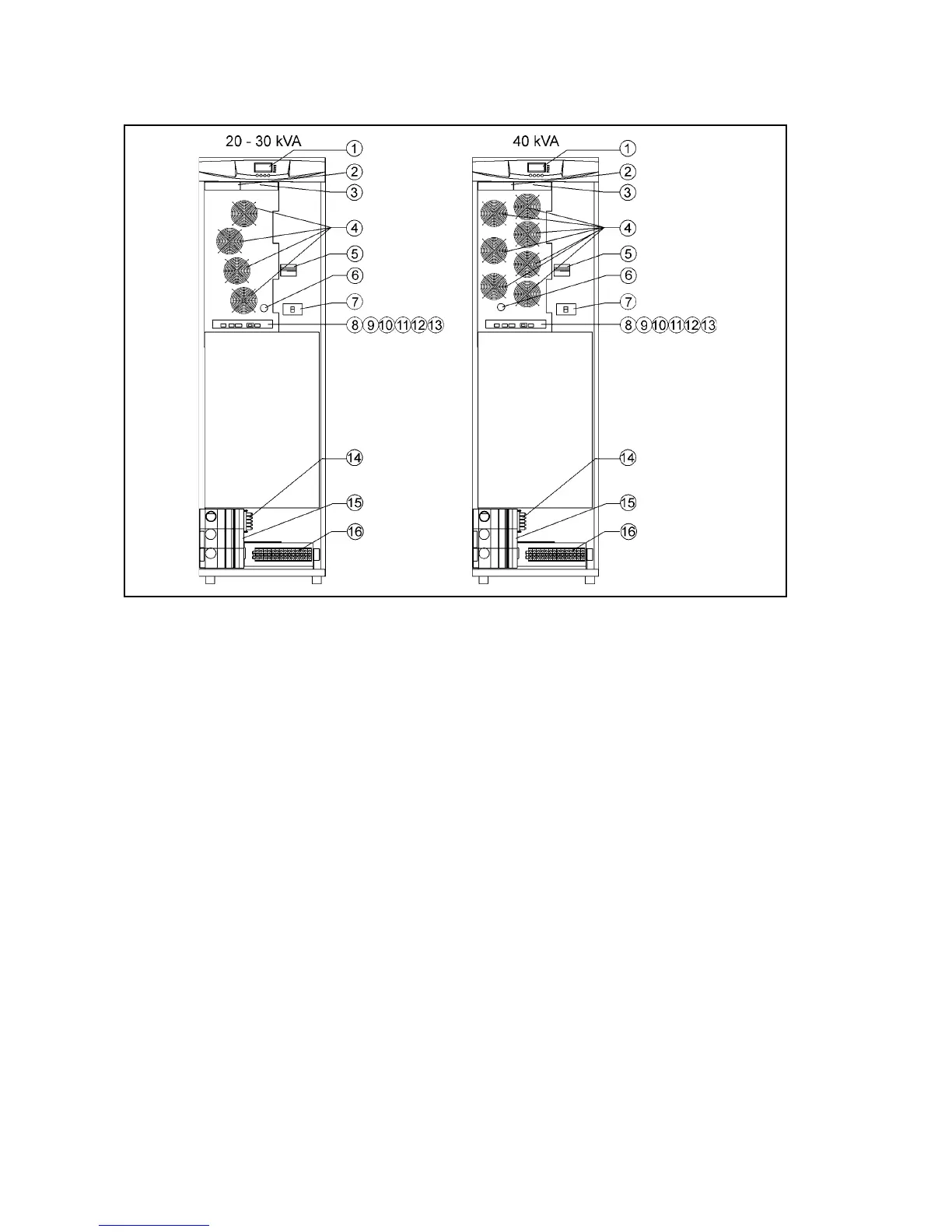

Figure 5 Powerware 9355 20-30 kVA and 40 kVA layout: 1:Graphical LCD; 2:XSlot-1; 3:XSlot-2; 4:Fans;
5:Input (rectifier) breaker (20-30 kVA)/switch (40 kVA); 6:Battery start button; 7:Battery breaker; 8-13:
Connectivity terminals; 14:Ground terminal; 15:MBS; 16:Power cable terminals
