52 UPS 20-40 kVA, 230/400 V 50/60 Hz output
User’s Guide
1025358
Revision D
12. Dimensional drawings

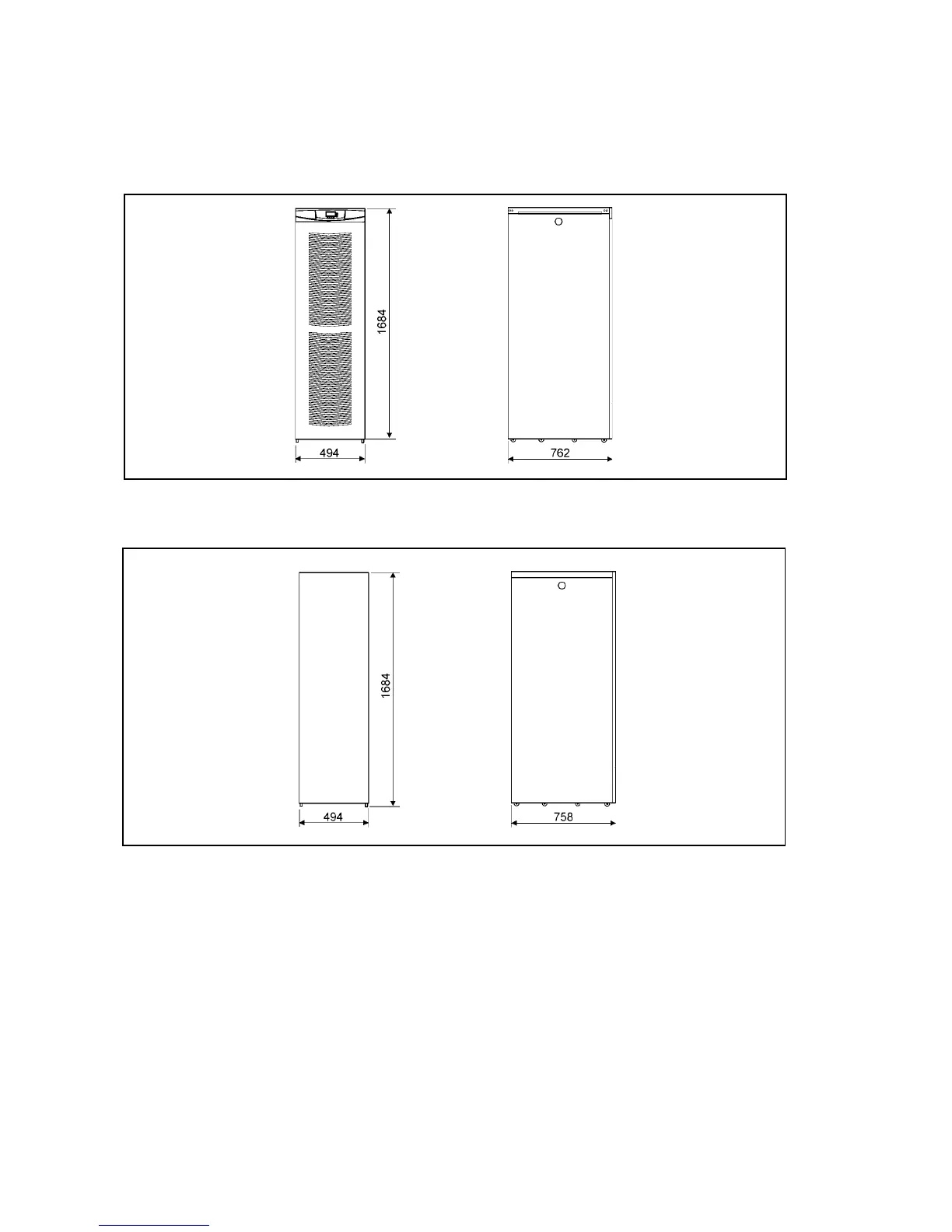

Figure 30 Dimensions of the UPS cabinet.
Figure 31 Dimensions of the External Battery Cabinet
