Eaton VCP-W Series Instruction Book

9
Instruction Book IB182312EN June 2016 www.eaton.com
50/75/150 VCP-W
Selectable Ground and Test Device

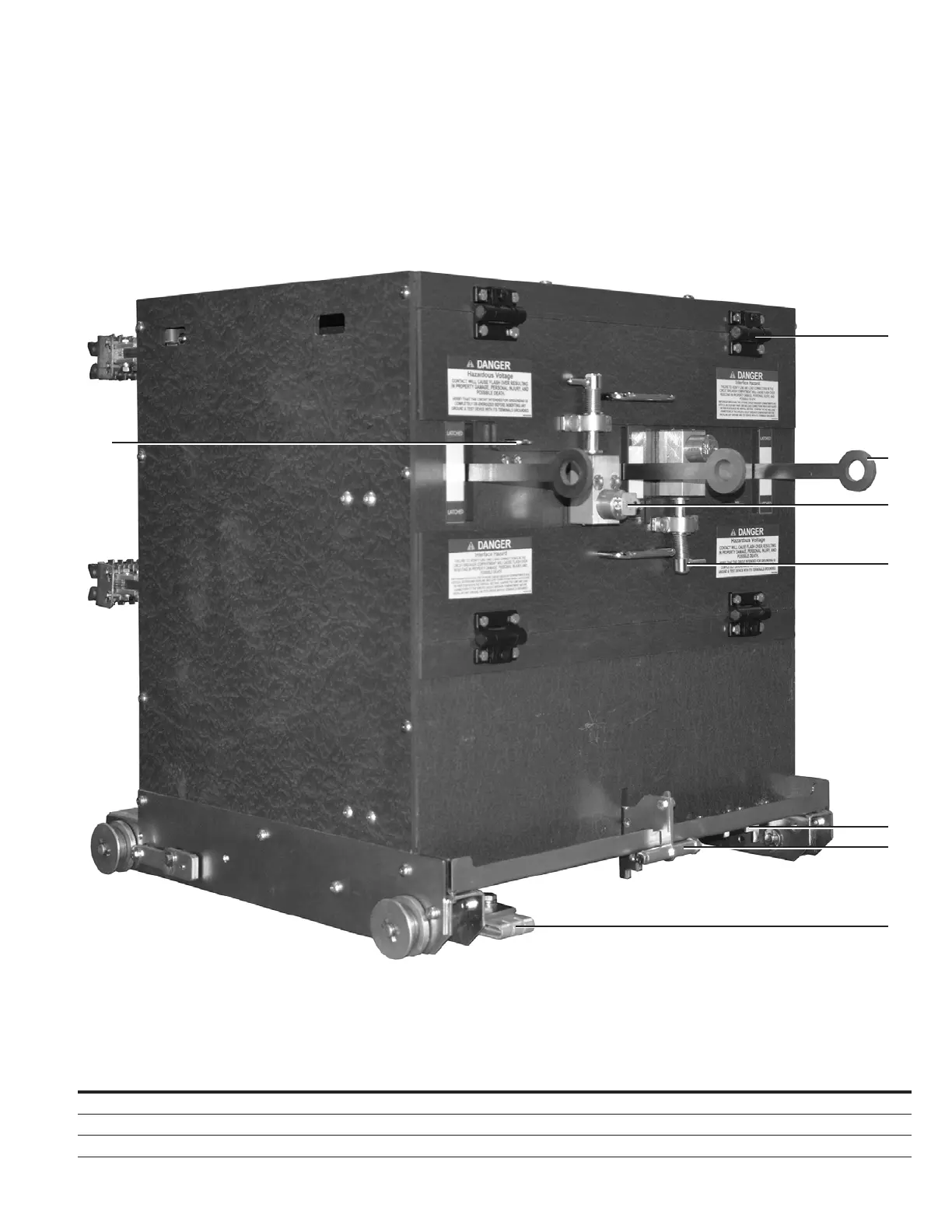

Figure 3.3.a. Front External View of 150 VCP-W SG&T Device
3
2
1
8
5
4
7
6
Front External View (150 VCP-W SG&T Shown)
1 Lock-out / Tag-out Ring 4 Kirk
TM
Key Interlock* 7 Lift / Pull Handle
2 Friction Hinge 5 Spring Loaded Kirk
TM
Lock Bolt* 8 Ground Contact
3 Selector Blade Latch Ring 6 Code Plate
