Eaton Vickers DF3S4-16 Series User Manual

29

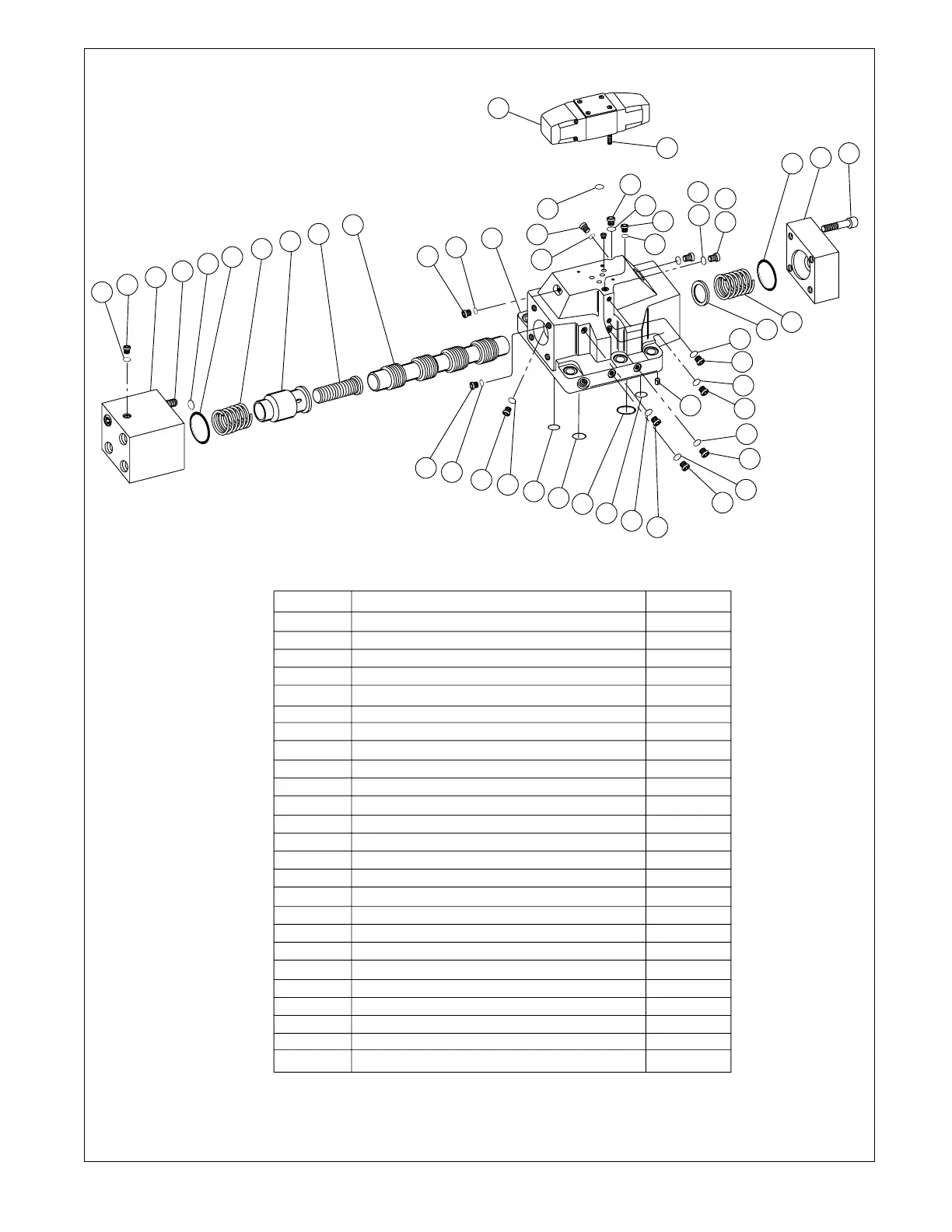

Figure 17. Main Stage Section, Pressure Centered “D” Model (DG5S4-10*D-W(3)-*-53
1 Pilot Valve 1
2 Screws 4
3 O-Rings 5
4 Body 1
5 Plug 1
6 O-Ring 1
7 Screw 4
8 Cover 1
9 O-Ring 1
10 O-Ring 1
11 Spring 1
12 Sleeve 1
13 Piston 1
14 Spool 1
15 Screw 4
16 Cover 1
17 O-Ring 1
18 Spring 1
19 Washer 1
20 - 45 Plugs & O-Rings 13 each
46 O-Ring 4
47 O-Ring 1
48 O-Ring 1
49 O-Ring 1
50 Rest Pin 2
25
11
1
2
3
4
5
6
7
8
9
10
12
13
14
15
16
17
18
19
Item Nomenclature Quantity
20
21
22
23
24
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
DG5S4-10*D-W(3)-*-53
50
