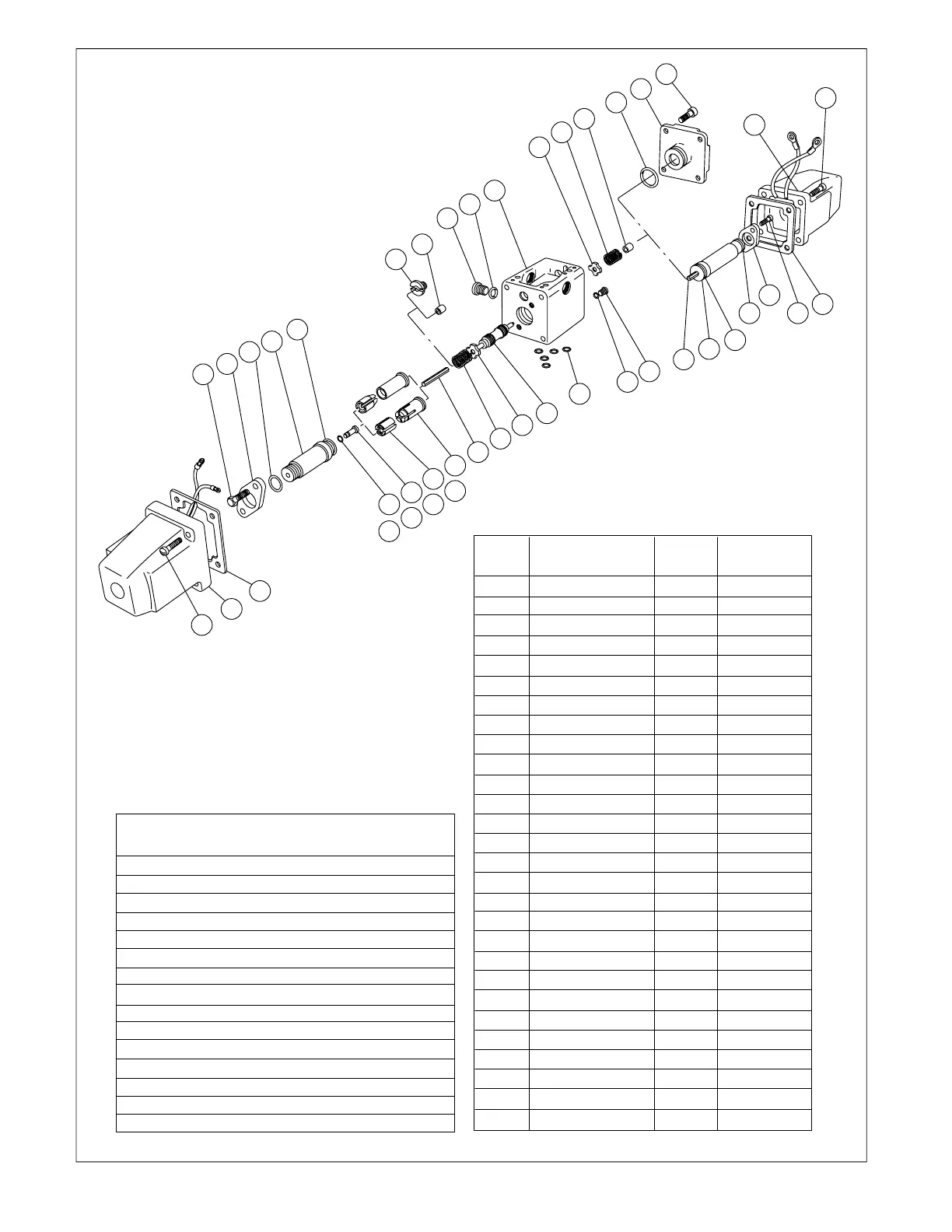

Figure 18. Wet Armature, Pilot Valve DG4S4-01-**W3-51
1 Screw 4 A, B, C, N
2 Coil S/A 1 A, B, C, N
3 Gasket 1 A, B, C, N
4 ∅ O-Ring 1 A, B, C, N
5 Screw 2 A, B, C, N
6 Flange 1 A, B, C, N
7 ∅ Core Tube 1 A, B, C, N
8 ∅ O-Ring 1 A, B, C, N
9 ∅ Push Pin 1 A, B, C, N
10 ∅ Pole Face 1 A, B, C, N
11 ∅ Armature 1 A, B, C, N
12 ∅ Manual Plunger 1 A, B, C, N
13 ∅ O-Ring 1 A, B, C, N
14 Spring 1 B, C, N
15 Spacer 1 C
25
11
1
2
3
4
5
6
7
8
9
10
12
13
14
15
16
17
18
19
Item Nomenclature Quantity Model Source
Code
20
21
22
23
24
26
27
28
29
30
31
32
33
34
35
36
37
38
39
DG4S4-01-**W3-51
15
a
19
a
18
a
17
a
15a Detent S/A 1 N
16 Washer 1 B, C
17 Screw 4 C, N
17a Screw 4 A, B
18 Coil S/A 1 C, N
18a Cover 1 A, B
19 Gasket 1 C, N
19a O-Ring 1 A, B
20 Screw 2 C, N
21 O-Ring 1 C, N
22 Flange 1 C, N
23 O-Ring 1 C, N
24 Core Tube 1 C, N
25 Push Pin 1 C, N
26∅ Pole Face 1 C, N
27∅ Armature 1 C, N
28∅ Manual Plunger 1 C, N
29∅ O-Ring 1 C, N
30 Spring 1 A, B, C
31 Spacer 1 B, C, N
32 Washer 1 B, C
33 Spool 1 A, B, C, N
34 Plug 1 A, B, C, N
35 O-Ring 1 A, B, C, N
36 Plug 1 A, B, C, N
37 O-Ring 1 A, B, C, N
38 Body 1 A, B, C, N
39 O-Ring 5 A, B, C, N
Item Nomenclature Quantity Model Source
Code
Model Source Code
DG4S4-01-**A-50 A
DG4S4-01-**B-50 B
DG4S4-01-**C-50 C
DG4S4-01-**N-51 N
NOTE:
∅ Included in serviceable core tube S/A
To Next Page
