Eaton Vickers DF3S4-16 Series User Manual

31

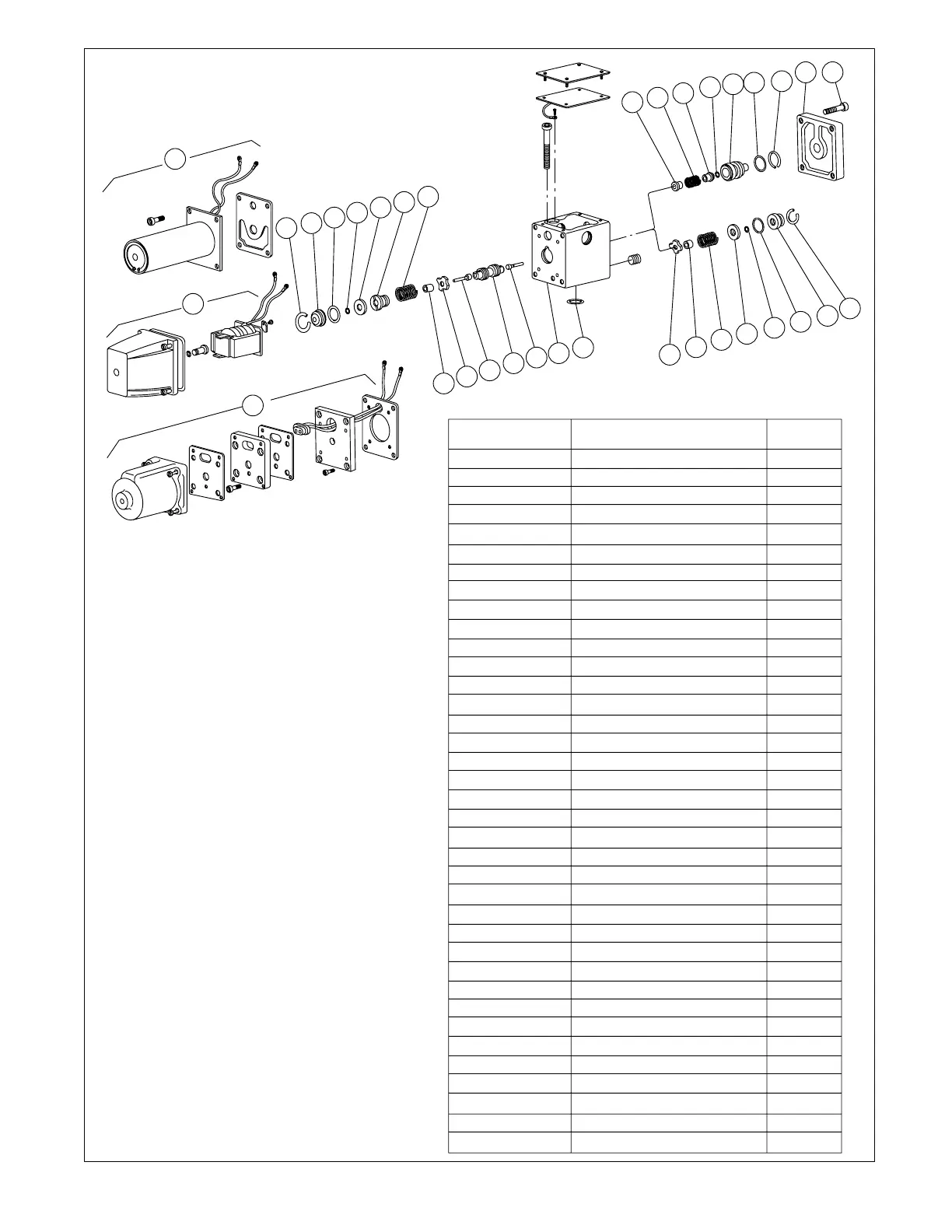

Figure 19. DG4S4-01-50, DC, Air Gap & Oil Immersed Type Pilot Valves
1 Nameplate 1
2 Gasket 1
3 Screw 4
4 O-Ring 5
5A DC Solenoid Assembly 2
(offset “A” units) DC Solenoid Assembly 1
5B AC Solenoid Assembly 2
(offset “A” units) AC Solenoid Assembly 1
5C Oil Immersed Solenoid Assy. 2
(offset “A” units) Oil Immersed Solenoid Assy. 1
6 Screw 4
7 Cover 1
8 Snap Ring 1
9 Guide 1
10 O-Rings (Guide) 1
11 Limiter 2
12 Spring 1
13 Snap Ring 1
14 Guide 1
15 O-Ring 1
16 O-Ring 1
17 Washer (Seal Retainer) 1
18 Spring 1
19 Spacer 1
20 Washer (Spring Centering) 1
21 Snap Ring 1
22 Guide 1
23 O-Ring 1
24 O-Ring 1
25 Washer (Seal Retainer) 1
26 Detent Assembly 1
27 Spring 1
28 Spacer 1
29 Washer (Spring Centering) 1
30 Spool 1
31 Push Pin 2
32 Body & Plug 1
25
11
4
5c
67
8
9
10
12
13
14
16
17
18
19
Item Nomenclature Quantity
20
21
22
23
24
26
27
28
29
30
31
32
DG4S4-01-50
15
31
5b
5a
DG4S4-01-C/N-**-50
11
10
