32
24

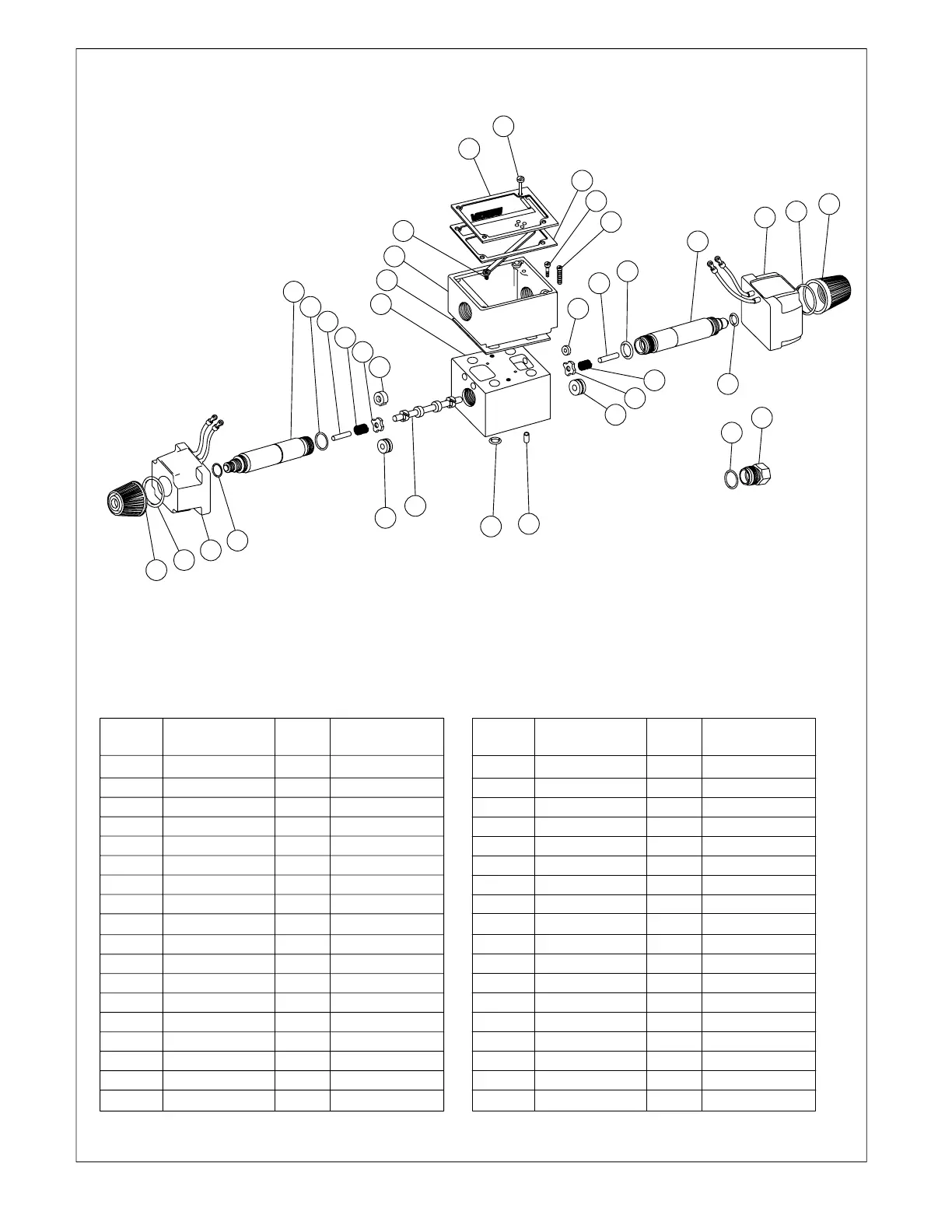

Figure 20. DG4V-3*W3-40 Pilot Valve
DG4V-3-**-M-40
25
11
1
2
3
4
5
6
7
8
9
10
12
13
14
15
16
17
18
19
20
21
22
23
26
27
28
29
30
31
32
33
34
35
36
C or N Models
A, B or
F Models
1 Screw 4 A, B, C, F, N
2 Carrier 1 A, B, C, F, N
3 Screw 1 A, B, C, F, N
4 Gasket/Retainer 1 A, B, C, F, N
5 Screw 2 A, B, C, F, N
6 Screw 1 A, B, C, F, N
7 Terminal Box 1 A, B, C, F, N
8 Gasket 1 A, B, C, F, N
9 Body 1 A, B, C, F, N
10 End Cap 1 A, B, C, F, N
11 O-Ring 1 A, B, C, F, N
12 Coil S/A 1 A, B, C, F, N
13 O-Ring 1 A, B, C, F, N
14 Core Tube S/A 1 A, B, C, F, N
15 O-Ring 1 A, B, C, F, N
16 Push Pin 1 A, B, C, F, N
17 Spring 1 A, B, C, N
18 Washer 1 C, F
Item Nomenclature Quantity Model Source
Code
19 Detent S/A 1 N
20 Washer 1 A
21 Spool 1 A, B, C, F, N
22 End Cap 1 C, N
23 O-Ring 1 C, N
24 Coil S/A 1 C, N
25 O-Ring 1 C, N
26 Core Tube S/A 1 C, N
27 O-Ring 1 C, N
28 Push Pin 1 C, N
29 Spring 1 A, B, C, F, N
30 Washer 1 B, C, F
31 Washer 1 F
32 Washer 1 N
33 End Cap 1 A, B, F
34 O-Ring 1 A, B, F
35 O-Ring 1 A, B, C, F, N
36 Pin 1 A, B, C, F, N
Item Nomenclature Quantity Model Source
Code
Model Source Code
DG4V-3-**A-40 A
DG4V-3-**B-40 B
DG4V-3-**C-40 C
DG4V-3-**F-40 F
DG4V-3-**N-40 N
