Eaton Vickers DF3S4-16 Series User Manual

33

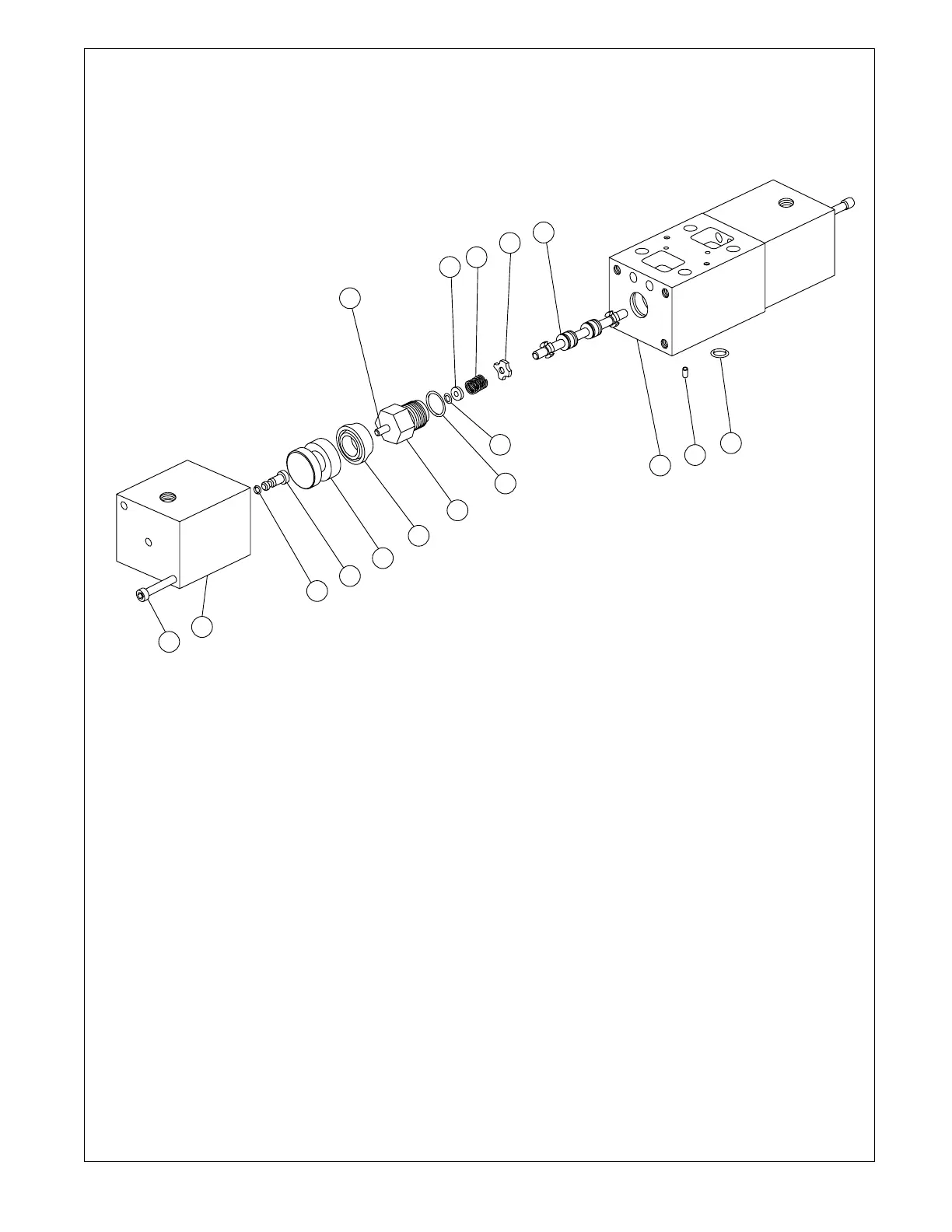

Figure 21. DG18V-3-C-40 Air Operated Pilot Valve for DG19S4-**-52 Two-Stage Unit
DG18V-3-C-40
11
1
2
3
4
5
6
7
8
9
10
12
13
14
15
16
17
1 Screw 4
2 End Cover 2
3 Manual Plunger 2
4 O-Ring 2
5 Plunger 2
6 Seal 2
7 Guide 2
8 O-Ring 2
9 Pin 2
10 O-Ring 2
11 Retainer 2
12 Spring 2
13 Washer 2
14 Spool 1
15 Body 1
16 Pin 1
17 O-Ring 4
Item Nomenclature Quantity
