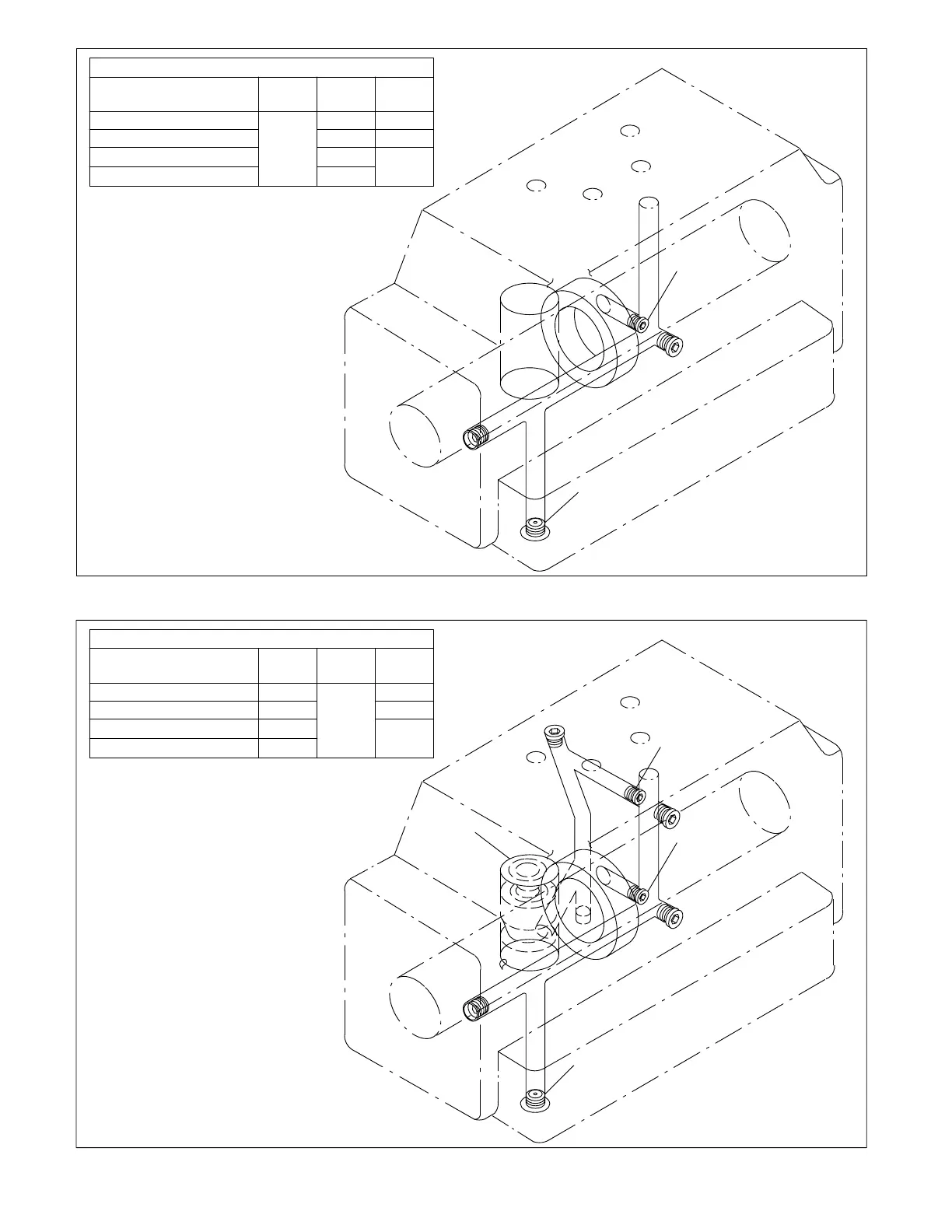

Figure 24a. DG5S4-06*-51 or DG5S4-06*-D-52 Internal Pressure Passages & Plug Locations
Plug Installation Table
Model
“C”
Plug
“B”
Plug
“A”
Plug
DG5S4-06*-51
DG5S4-06*-E-51
DG5S4-06*-X-51
DG5S4-06*-X-E-51
*In
In
Out
In
Out
In
Out
* - Denotes Orifice Plug
B
P
T
A
“B” Plug
“C” Plug
“X” Port
Out
T
Figure 24b. DG5S4-06*-(K/R)-51 Internal Pressure Passages & Plug Locations
Plug Installation Table
Model
“C”
Plug
“B”
Plug
“A”
Plug
DG5S4-06*-KR-51
DG5S4-06*-E-KR-51
DG5S4-06*-X-KR-51
DG5S4-06*-X-E-KR-51
*In
In
Out
In
Out
*In
* - Denotes Orifice Plug
B
P
T
A
“B” Plug
“C” Plug
“X” Port
In
T
“A” Plug
Integral
Check Valve
Out
