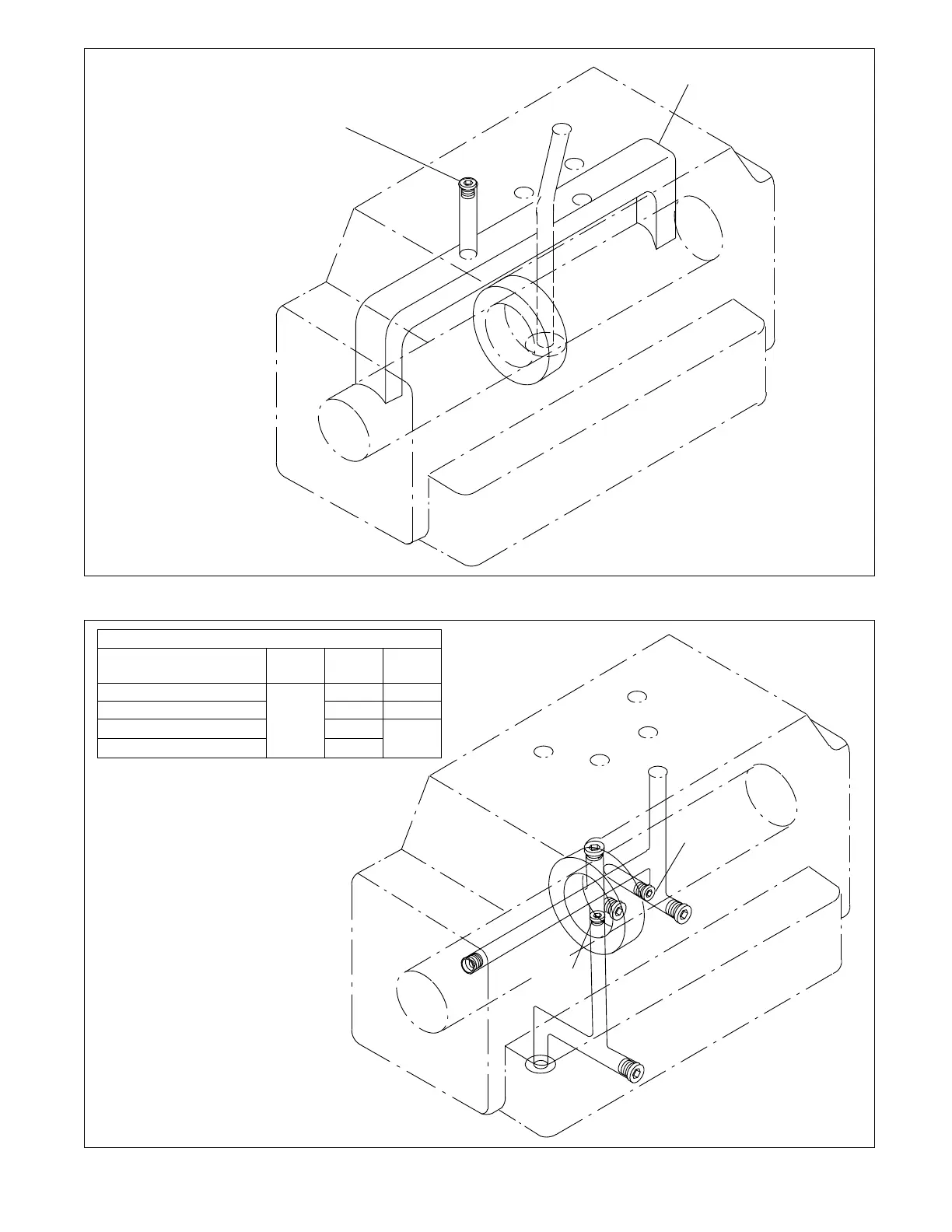

Figure 24c. DG5S4-06-T-51 Internal Drain Passages & Plug Locations
B
P
T
A
“T” Plug
(Remove
for Internal
Drain Models)
“Y” Port
T
Drain Port
Internal Coring
Figure 25a. DG5S4-H06-*-51 Internal Pressure Passages & Plug Locations
Plug Installation Table
Model
“C”
Plug
“B”
Plug
“A”
Plug
DG5S4-H06*C-51
DG5S4-H06*C-E-51
DG5S4-H06*C-X-51
DG5S4-H06*C-X-E-51
*In
In
Out
In
Out
*In
Out
* - Denotes Orifice Plug
B
P
T
A
“B” Plug
“X” Port
Does
not
Exist
T
“C” Plug
