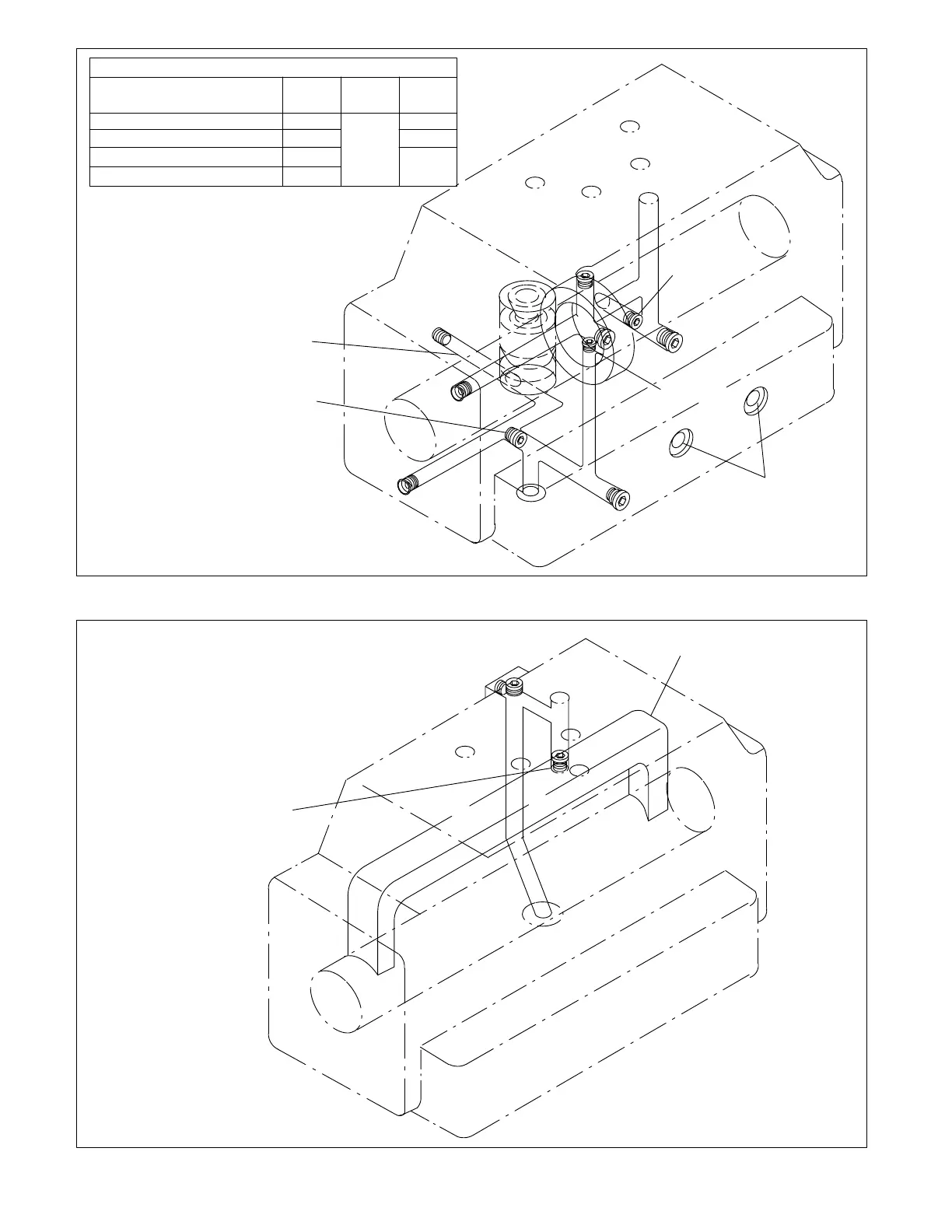

Figure 25b. DG5S4-H06-(K/R/S)-51 Internal Pressure Passages & Plug Locations
Plug Installation Table
Model
“C”
Plug
“B”
Plug
“A”
Plug
DG5S4-H06*C-KRS-51
DG5S4-H06*C-E-KRS-51
DG5S4-H06*C-X-KRS-51
DG5S4-H06*C-X-E-KRS-51
*In
In
Out
In
Out
*In
* - Denotes Orifice Plug
B
P
T
A
T
“A” Plug
Check Valve
Pressure
Pickup Line
In
Out
“B” Plug
“C” Plug
Gauge
Connection
Figure 25c. DG5S4-H06-T-51 Internal Drain Passages & Plug Locations
B
P
T
A
“T” Plug (Remove for
Internal Pilot Drain Models)
“Y” Drain
Drain Port
Internal Coring
T
