EBARA CDX 70 - Mechanical Seal Details; Pump Bearings

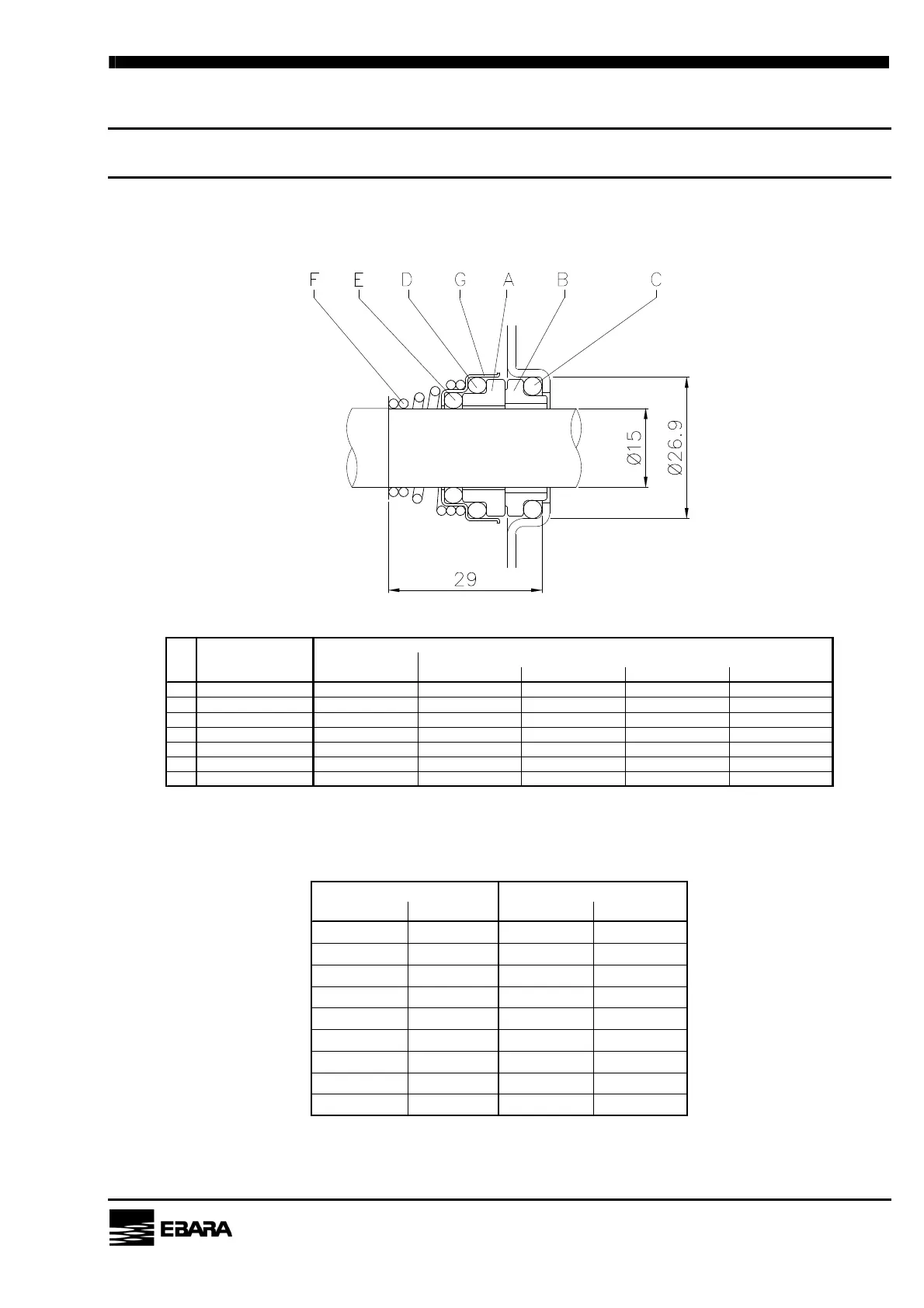

CENTRIFUGAL PUMPS CDX
CONSTRUCTION 60Hz
301
EBARA PUMPS EUROPE S.p.A.
Rev. E
MECHANICAL SEAL
Standard version
(CDX) (CDXH) (CDXHS) (CDXHW) (CDXHSW)
A Rotary seal ring Ceramic Ceramic Silicon carbide Tungsten carbide Silicon carbide
B Stationary seal ring Carbon graphite Carbon graphite Silicon carbide Tungsten carbide Tungsten carbide
CO Ring NBR FPM FPM FPM FPM
DO Ring NBR FPM FPM FPM FPM
EO Ring NBR FPM FPM FPM FPM
F Self driving spring AISI 316 AISI 316 AISI 316 AISI 316 AISI 316
G Frame AISI 304 AISI 304 AISI 316 AISI 316 AISI 316
REF PART NAME
Optional
MATERIAL
BEARINGS
Single Phase Three Phase Pump side Fan side
CDXM 70/076 CDX 70/076 6203 2RSH 6202 2RSH
CDXM 70/106 CDX 70/106 6203 2RSH 6202 2RSH
CDXM 70/156 CDX 70/156 6203 2RSH 6202 2RSH
CDXM 120/106 CDX 120/106 6203 2RSH 6202 2RSH
CDXM 120/156 CDX 120/156 6203 2RSH 6202 2RSH
CDXM 120/206 CDX 120/206 6204 2RSH 6203 2RSH
CDXM 200/156 CDX 200/156 6203 2RSH 6202 2RSH
CDXM 200/206 CDX 200/206 6204 2RSH 6203 2RSH
- CDX 200/306 6204 2RSH 6203 2RSH
Pump type Ball Bearing
