Eberspächer EasyStart Web Installation Instructions

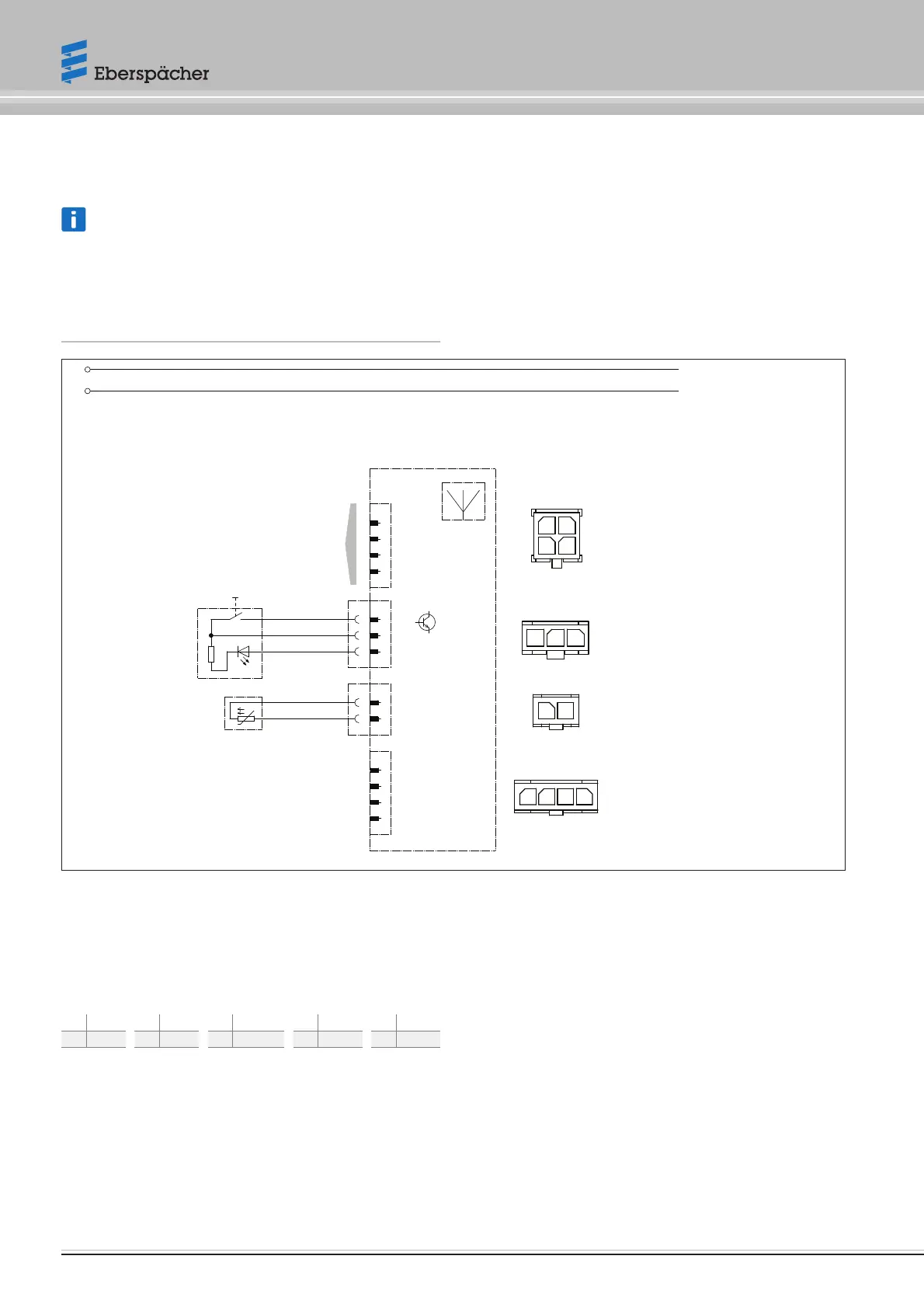

6.4 Circuit diagram, EasyStartWeb connection to
Hydronic S3 CS
Note
These installation instructions describe the standard configuration.
For details of enhanced configuration of the EasyStart Web with
control units and for special functions, the “Installation Instructions
PLUS – Easy Start / Altitude Kit / Special Functions and Diagnosis”
are available to view and download from the partner portal.
-XS3
-XS4
-XS2
-XS1
2143
12
31
2
1
2
34
X:58
Light (+)
X:15
Ign (+)
-H4
Θ
-B10
-E6
1
-XB3
2
3
-XB2
1
2
0,22 RDYE
0,22 BNWH
0,22 GY
0,22 BNYE
0,22 BN
c
-XS4
-XS3
-XS2
-XS1
Parts list
-E6 EasyStart Web radio remote control
-H4 EasyStart Web button
-B19 Sensor, interior temperature
c to the heater
22.1000.34.97x2.0x
Cable colours
RD red GR grey BK black WH white VT violet
BU blue YE yellow GN green OR orange BN brown
16 22.1000.34.5106.0D EN | 06.2019
Operating instructions | EasyStart Web
