CPX200NB ALARM CONTROL UNIT – USER MANUAL 7 / 30
EN
3. KEYPAD SPECIFICATION
Power supply voltage: 10 – 13.8 VDC
Power consumption: typ. 20 mA, max. 80 mA
Keypad weight: 70 g
Size of casing: 99 x 82 x 19 mm
Keypad type: LED, 16 status LEDs, 4 mode LEDs (ALARM, ARMED,
SYSTEM, PROG)
Button layout: Standard telephone keypad 3 x 4 buttons

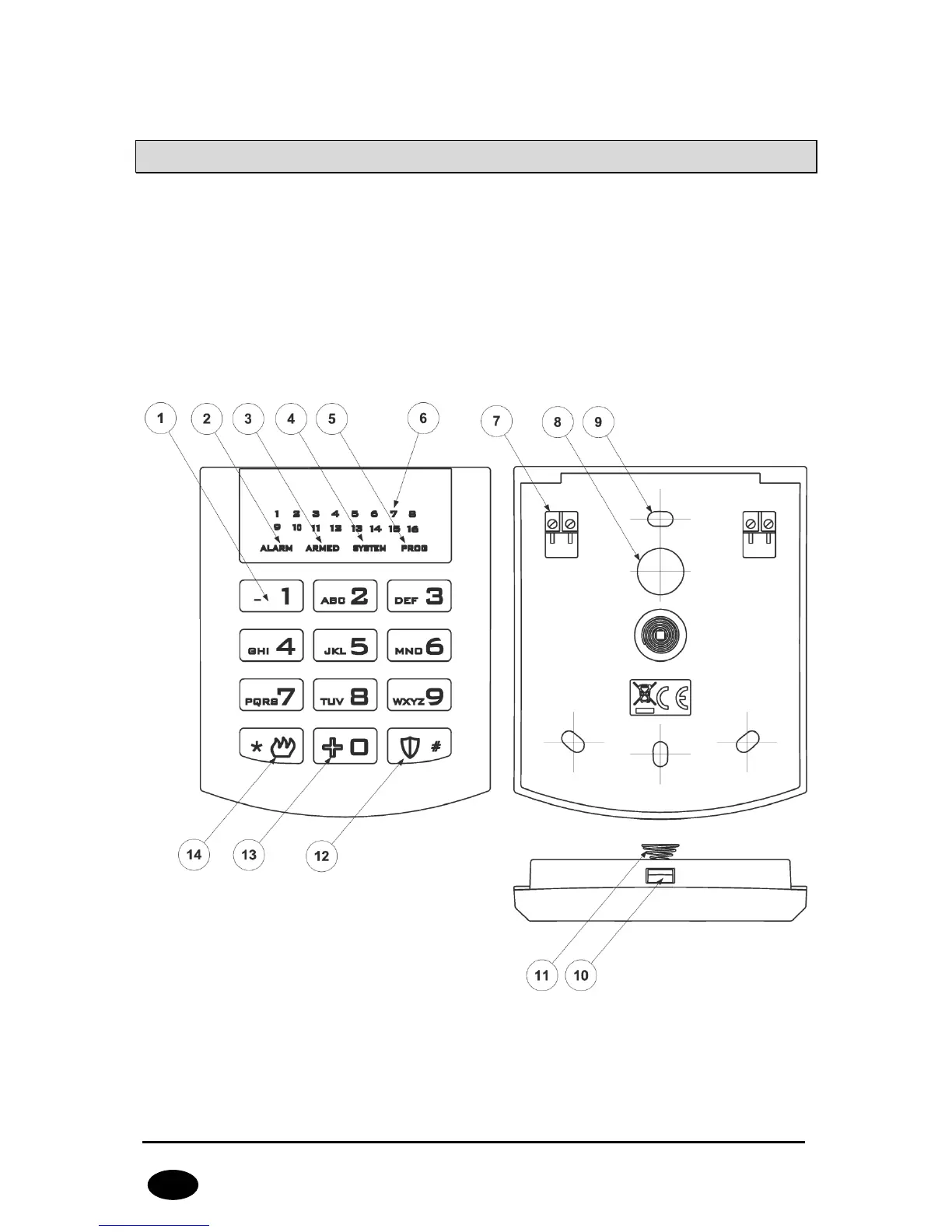

Drawing 1. KP16 Keypad
