2. Printer Elements
The major components of the BOLTMARK
®
-series printer are shown in Fig. 2.1.

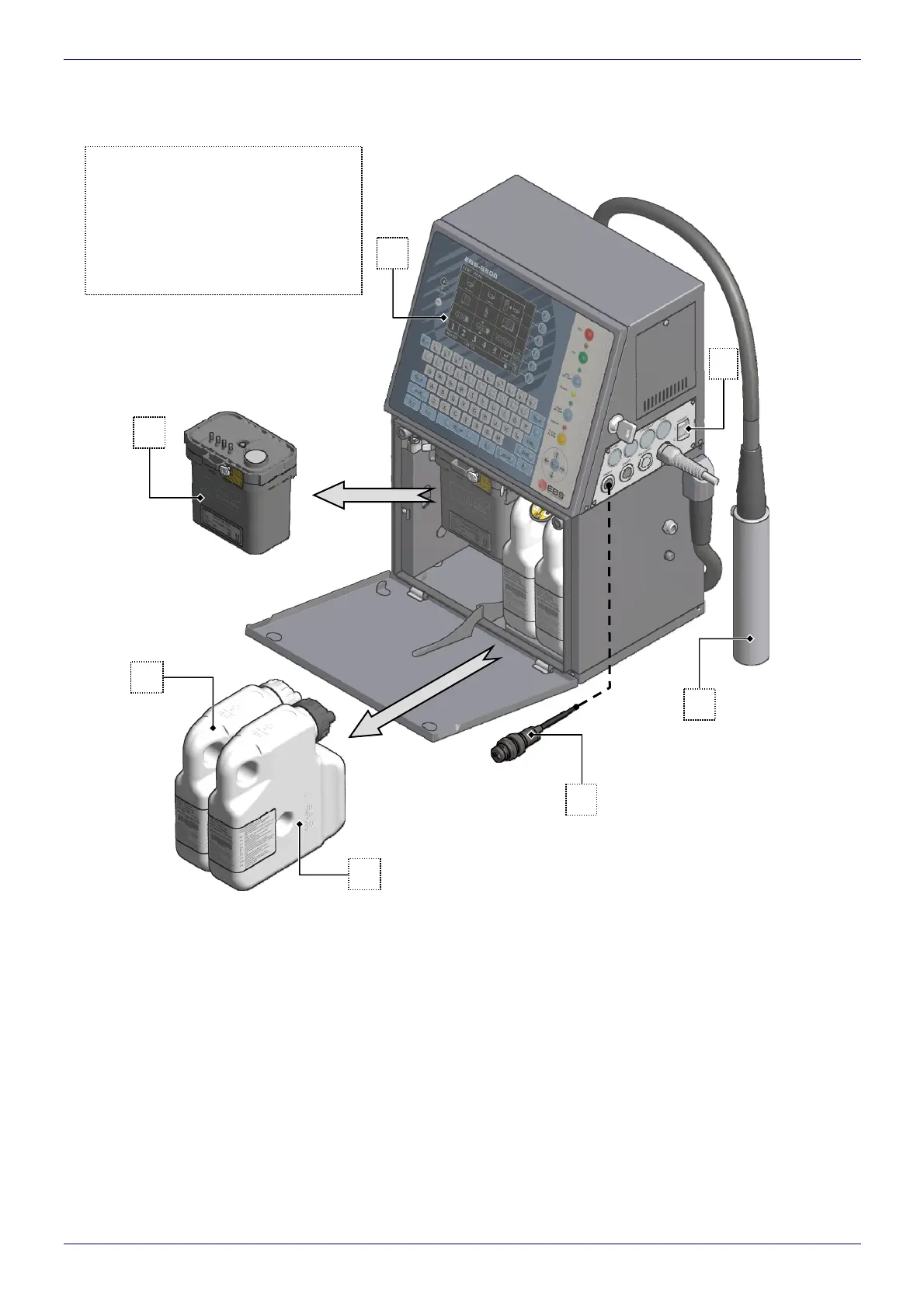

Fig. 2.1
In addition, the printing system may contain many other sub-assemblies such as a shaft-encoder, assembly
stands, an additional external signaling device and many others. For more details refer to section Installation of
the Printer in The
BOLTMARK
®
-series Printer User’s Manual.
3. Safety Requirements
NOTE:
The printer should be operated by trained staff. It is recommended that operation of the device is supervised.
Place a fire extinguisher suitable for both electrical and chemical fires in the vicinity of the printer.
Do not print in areas where there is a risk of explosion.
Do not print on objects whose temperature exceeds 100C at the time of printing.
Do not use open fire or spark-generating devices in the area where the printer works.
Plug in the printer to the mains socket that is wired to earth.
Adjustments to the electrical part of the system and he head should be performed when power supply is
disconnected.
Do not point the head outlet to persons or animals during printing.
- bottle of solvent (white stopper)
- bottle of ink (black stopper)
- master switch
- print head
- operation panel
- photo-detector
- iModule
®
