Chengdu Ebyte Electronic Technology Co.,Ltd. 【8DO】MA01 -XXCX0080 User Manual
Copyright ©2012–2021，Chengdu Ebyte Electronic Technology Co.,Ltd.
21

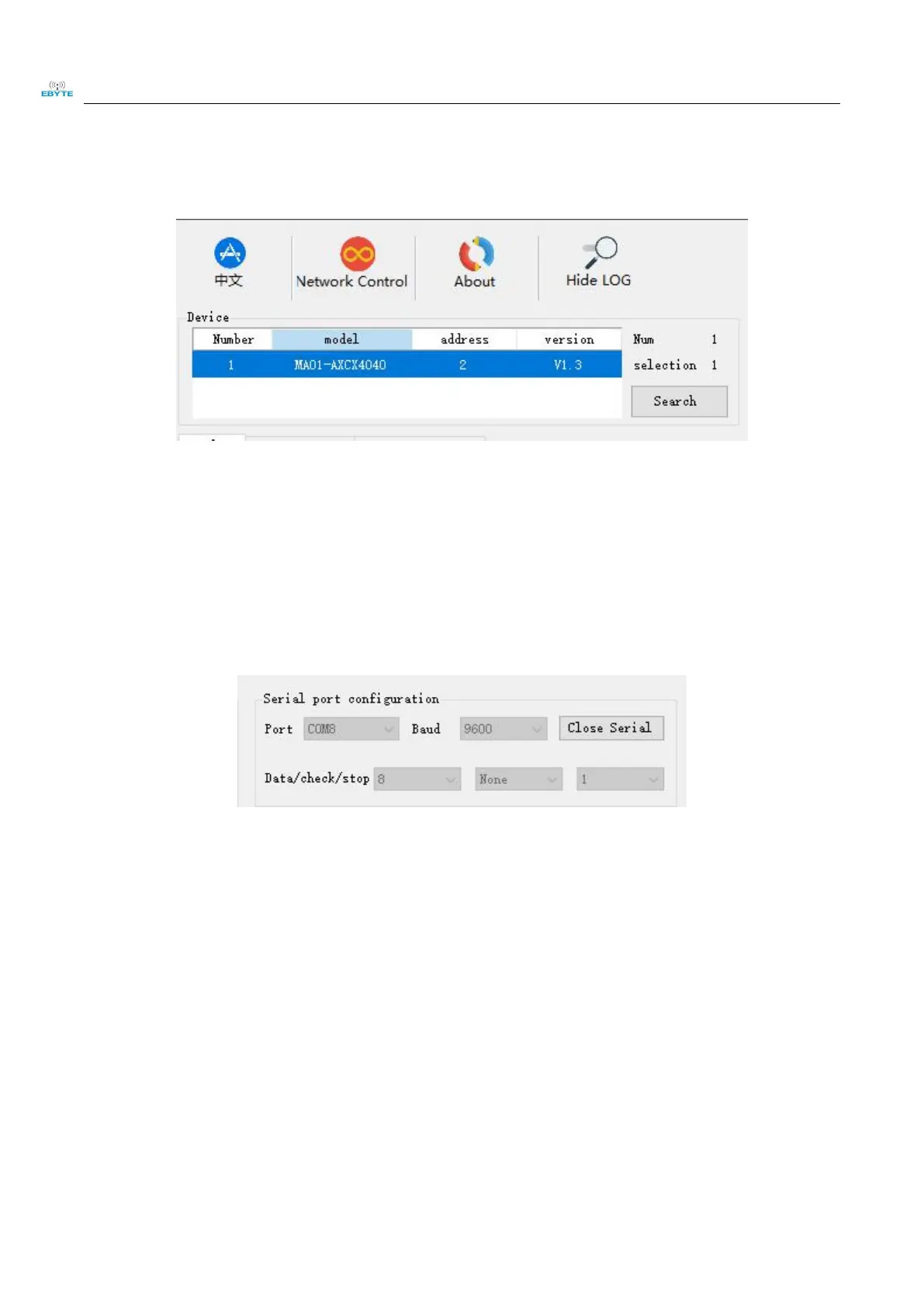

（1）The device window
Displays the current connection device information (serial number, device model, device address, firmware
version).
Figure 6-2-2 Device Window Interface
（2）Serial parameter window
Displays serial parameter information (port, baud rate, data bit, check bit, stop bit, etc.) and opens serial port.
Figure 6-2-3 Serial Parameter Window Interface
（3）The log window
Displays the device configuration, the operation log information during use (send, return data instructions).
