Chengdu Ebyte Electronic Technology Co.,Ltd. 【8DO】MA01 -XXCX0080 User Manual
Copyright ©2012–2021，Chengdu Ebyte Electronic Technology Co.,Ltd.
22

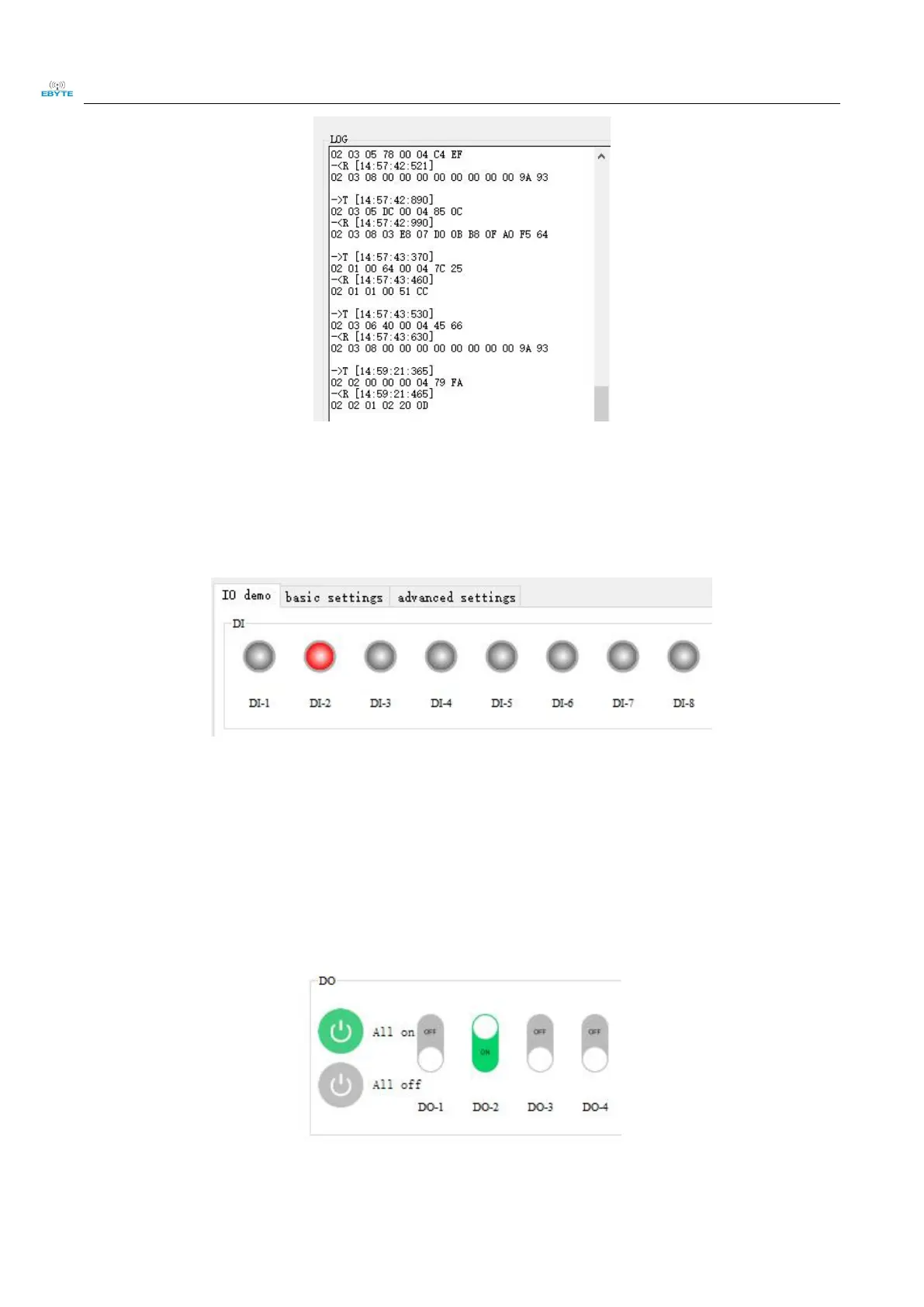

Figure 6-2-4 Log Window Interface
（4）Switch input DI(this feature is limited to DI-enabled devices).
Displays the status of the digital input DI port.
Figure 6-2-4 Switch Input DI interface
（5）Switch output DO
Displays the status of the DO port of the switch output, and the graphical settings switch output of the DO port is on
and off.
Figure 6-2-5 Switch Output DO interface
