(6)Analog input AI(this feature is limited to AI-enabled devices).
Displays the status of the analog input AI port (current, engineering volume), indicated by a graphical pin.

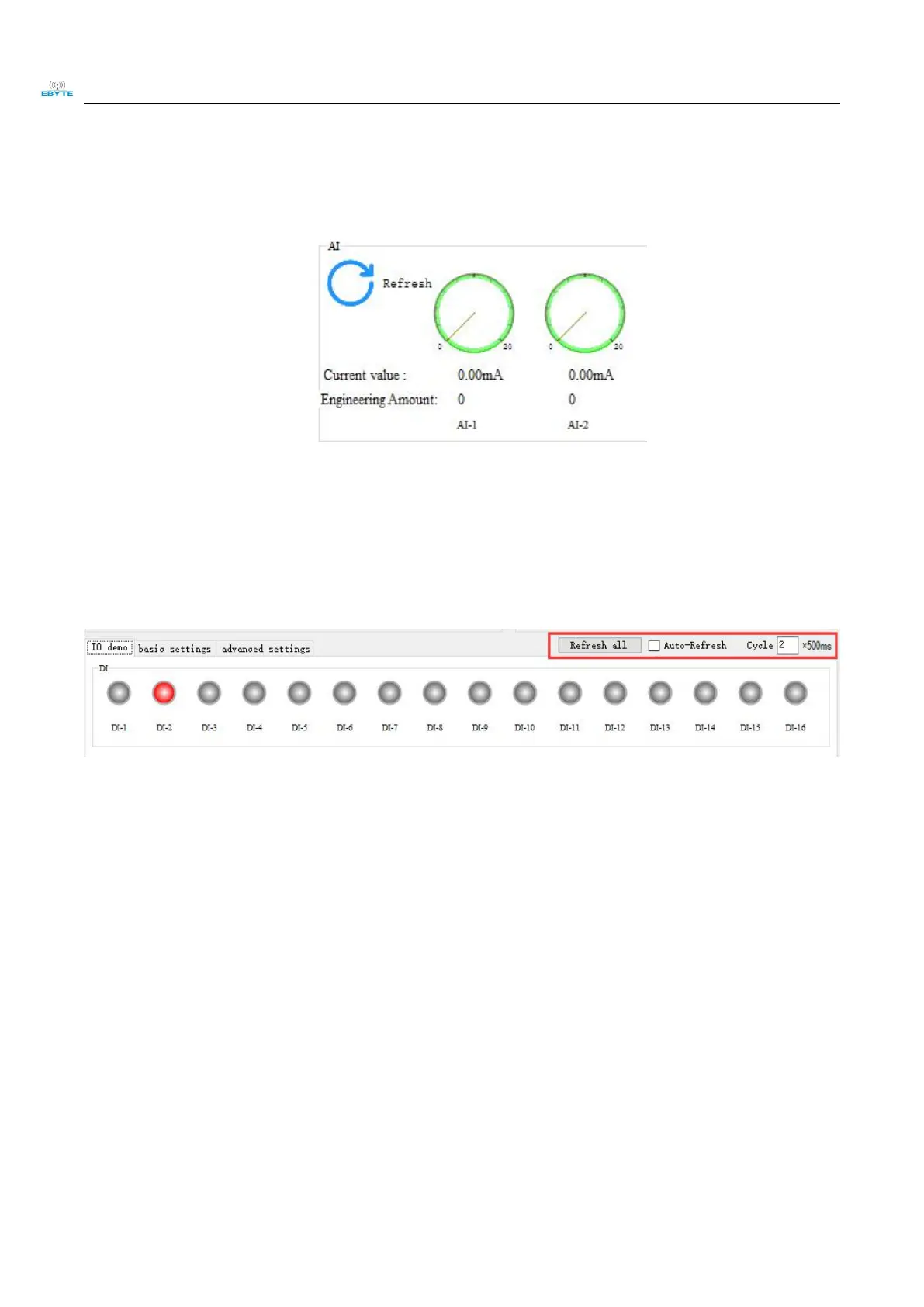

Figure 6-2-6 Simulates input AI interface
(7)Refresh the settings
Supports manual refresh, automatic refresh status. The auto-refresh state can customize the refresh cycle, which is a
multiple of 500ms.
Figure 6-2-7 Refresh the settings interface
