Ebyte E90-DTU

Chengdu Ebyte Electronic Technology Co.,Ltd. E90-DTU(xxxSLxx-ETH)_V2.0 User Manual
Copyright ©2012–2023，Chengdu Ebyte Electronic Technology Co.,Ltd.
34
Operation method (Microsoft Edge version 94.0.992.50 for example, IE kernel browser is not supported)
(1) , open the browser, the address bar, enter the IP address of the device, such as 192.168.4.101 (IP
address and computer need to maintain the same network segment, if you can not use the firewall to close try
again), forget the local IP can be queried through AT commands and configuration software;

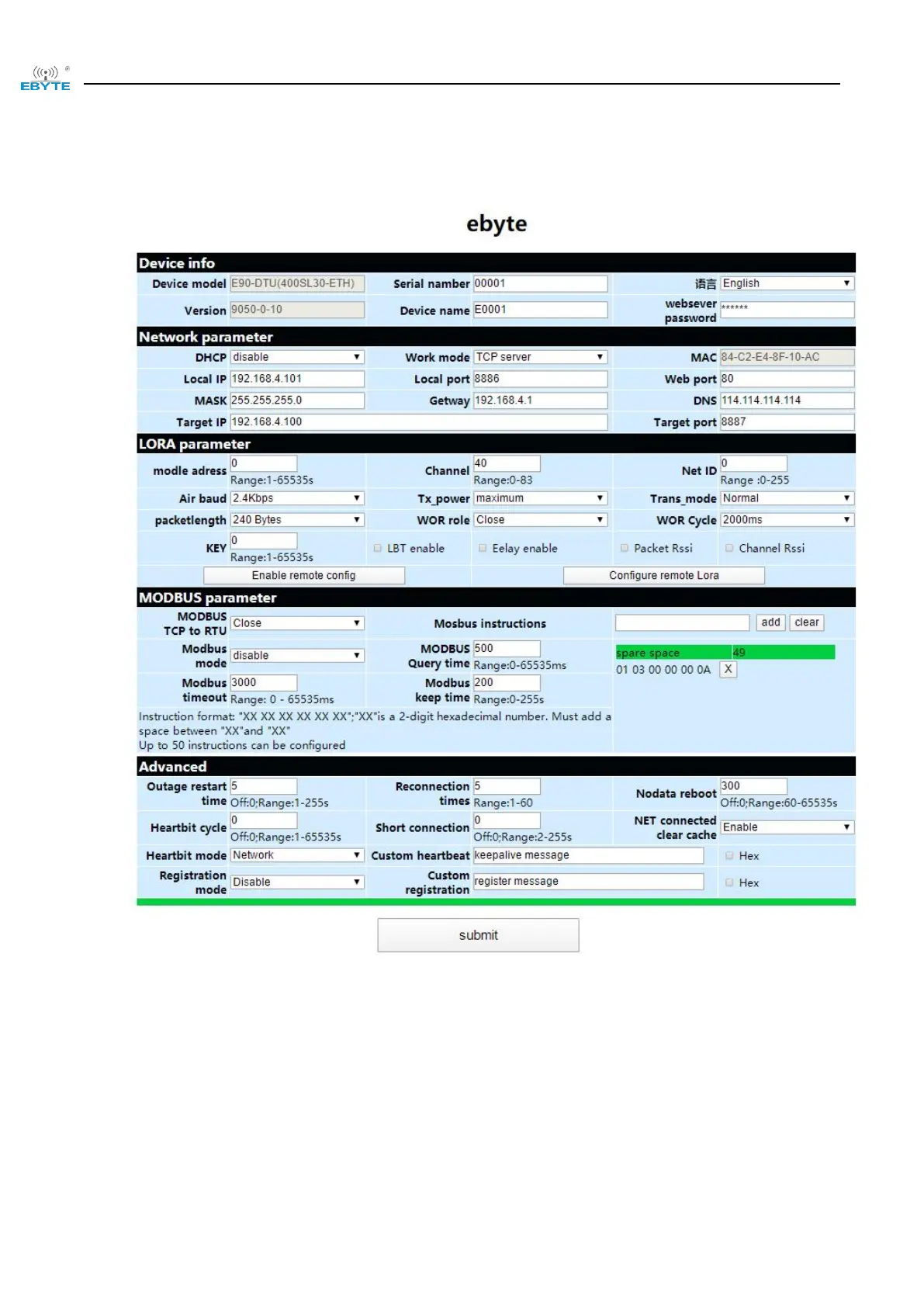

(2), the web page pops up the main interface, you can query and set the relevant parameters;
(3), click submit after entering the correct key can save the configuration parameters, the factory default key is:
123456;
