Ebyte E90-DTU User Manual

Chengdu Ebyte Electronic Technology Co.,Ltd. E90-DTU(xxxSLxx-ETH)_V2.0 User Manual
Copyright ©2012–2023，Chengdu Ebyte Electronic Technology Co.,Ltd.
3

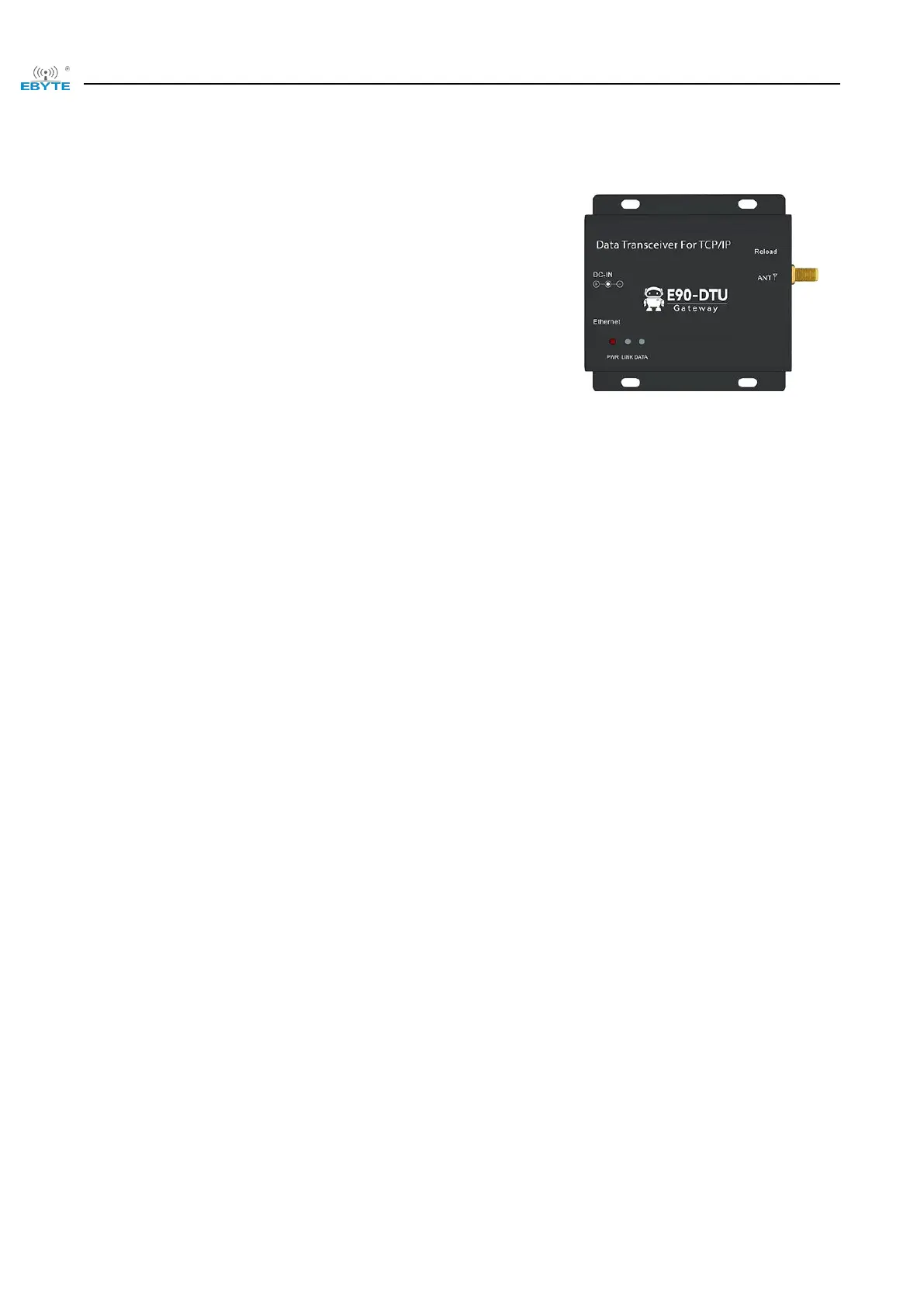

1 Introduction
E90-DTU(xxxSLxx-ETH)_V2.0 supports adaptive network rate (up to
100M full duplex), providing six working modes of TCP Server, TCP Client,
UDP Server, UDP Client, HTTP Client, MQTT Client, while in TCP Server
mode supporting six client connections;
Supporting a variety of Modbus gateways, which can perform simple
interchange of Modbus TCP data and Modbus RTU data, as well as
record and send the read instructions, and also actively upload the server
through pre-stored instructions;
Wireless communication adopts LoRa direct sequence spread spectrum technology, which will bring longer
communication distance and has the advantages of concentrated power density and strong anti-interference ability. With
software FEC forward error correction algorithm, which has high coding efficiency and strong error correction capability,
it can actively correct the interfered packets in the case of sudden interference, which greatly improves the reliability and
transmission distance, and can help users to complete long-distance data transparent transmission efficiently. Users can
make relevant configurations via WEB pages;
E90-DTU(xxxSLxx-ETH)_V2.0 includes the following 6 models:
E90-DTU(230SL22-ETH)_V2.0, E90-DTU(230SL30-ETH)_V2.0, E90-DTU(400SL22-ETH)_V2.0
E90-DTU(400SL30-ETH)_V2.0, E90-DTU(900SL22-ETH)_V2.0, E90-DTU(900SL30-ETH)_V2.0
Features

Adopting the latest LoRa technology, which has a longer distance and more powerful performance than
traditional LoRa digital radio;

Adopting military grade LoRa modulation technology with data encryption and settable sub-packet length;

Support LBT function, the radio waits to send according to the current environment noise intensity. Improving
the radio's communication success rate in harsh environments;

Support for wireless sending of command packets, remote configuration and communication encryption;

Can realize multi-level relay network to effectively extend the communication distance and realize ultra-long
distance communication;

Industrial-grade design can work in -40℃～+85℃ environment, wide voltage input (DC 8～28V);

Full aluminum alloy housing, compact size, easy installation and good heat dissipation;

perfect shielding design, good electromagnetic compatibility and strong anti-interference capability;

RJ45 adaptive 10 Ethernet interface;

Support for multiple operating modes (TCPS, TCPC, UDPS, UDPC, HTTPC, MQTTC);

Support for three configuration modes: configuration tool, web page and AT command;

Support for up to six socket connections in server mode;

Support for DHCP functionality;

Support for DNS (domain name resolution), with custom domain name resolution servers;

Support for multiple Modbus gateways (simple protocol conversion, multi-host mode, storage gateway,
configurable gateway, etc.)

Support for fast access to Ali cloud, Baidu cloud, OneNET, Huawei cloud, version 3.1 standard MQTT
