SETUP
ZONE MAGNET INSTALLATION
• When the RIDER front and rear zone sensors pass
the magnet, the Zone sensor light stay illuminat-
ed while each sensor has moved past it for .75”
+/- .25” (1.9cm +/- .6cm).
• When the RIDER passes the magnet, the Zone
sensor light must not double ash. If this occurs
the magnet is placed to close to the pallet
sensor.

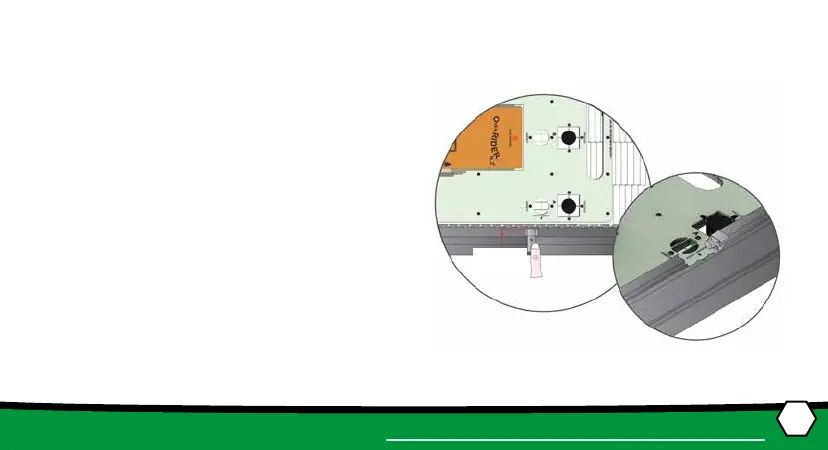

6. When the magnet is properly aligned mount the
“P” clip securely by tapping and drilling for a #6
or #8 screw. If the “OMNI FLO” clip is being used,
clip it to the rail and slide it into the desired
posion. Using the Manual Zone feature in the
soware, you can make an oven model by mea-
suring from the magnet to the center between
zones for all the other zones.
0.5” - 1.0”
(1.3-2.5cm)
To Next Page
